Features
Highly cost-effective made both quality and sound at a high level.

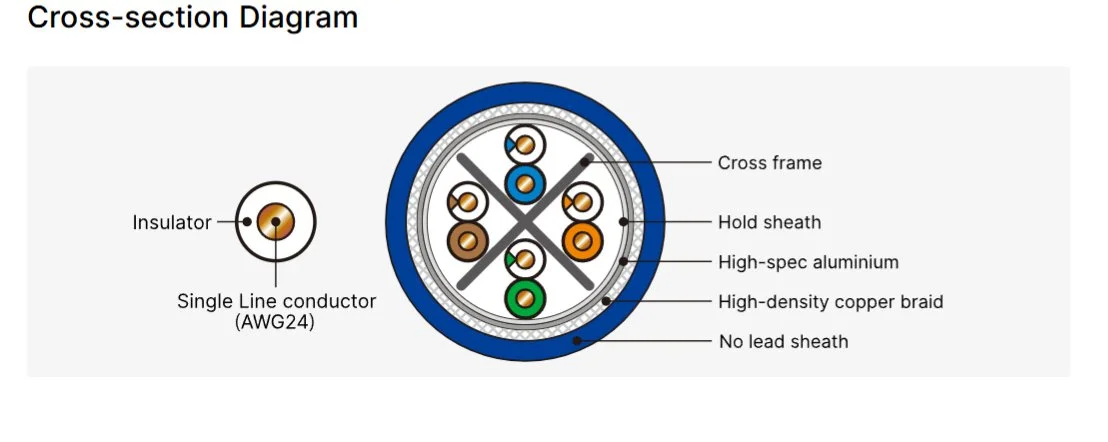

Equipped with a cross frame adopted also in the flagship model, High transmission characteristics realized in a wide frequency range.
Developed perfect Electromagnetic Interference control with high performance shielding inside the cable and modular connector.
-
Connector: 8P8C Modular connector(RJ45)
Connector Size: W13.9mm x H43.0mm x D15.7mm
Connector Structure: Hard polycarbonate housing & brass nickel plating
Standard: Compliant with ANSI/TIA/EIA-568-A,B & IEC 60603-7-5
Outside Diameter: 7.1Φ(mm)
Cable Color: Blue
Conductor: Single Line AWG24
Number of conductor:
Twisted Pair x 4(8)
Shield Structure: High Spec aluminum
Shield: High-density copper braid
Drain Wire: Symmetric
