AIM UA1 USB Cable
High performance USB cable.
High performance USB cable.
High performance USB cable.
Features
A SP separate flat structure created to optimally control distance between the signal and power lines.
Uses a hybrid conductor coated with oxygen-free copper and pure silver.

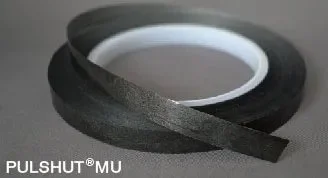

Achieves overwhelming Electromagnetic Interference reduction with PULSHUT® MU and aluminum and copper braided shields.
Reduces unwanted Electromagnetic Interference by cutting Electromagnetic Interference emitted from the device and conduction noise from the power source.
PULSHUT® is a trademark of Asahi Kasei Corporation.Pursues the shield effect through to the end of the cable with shell shield inside the connector.
-
Connector Type: USB "A"plug / USB "B"plug
Connector Size: Type A: W15.50mm x H41.50mm x D7.60mm — Type B: W11.10mm x H43.93mm x D10.00mm
Connector Shield: 100% Covered Shield + Copper Foil
Contacts: Gold Plated
Standards: USB 2.0(USB High/Full speed)
Cable Size: 8.0mm x 4.5mm(Flat)
Cable Color: Black
Conductor Size: AWG20 & AWG25
Number of conductor: Twisted Pair x 2(4pcs)
Cable Sheath: PULSHUT MU Sheath
Cable Shield: Highly Efficient Aluminum Shield + High Density Copper Braid
* All of the names and specifications of our products comply with the USB standards.
