Features

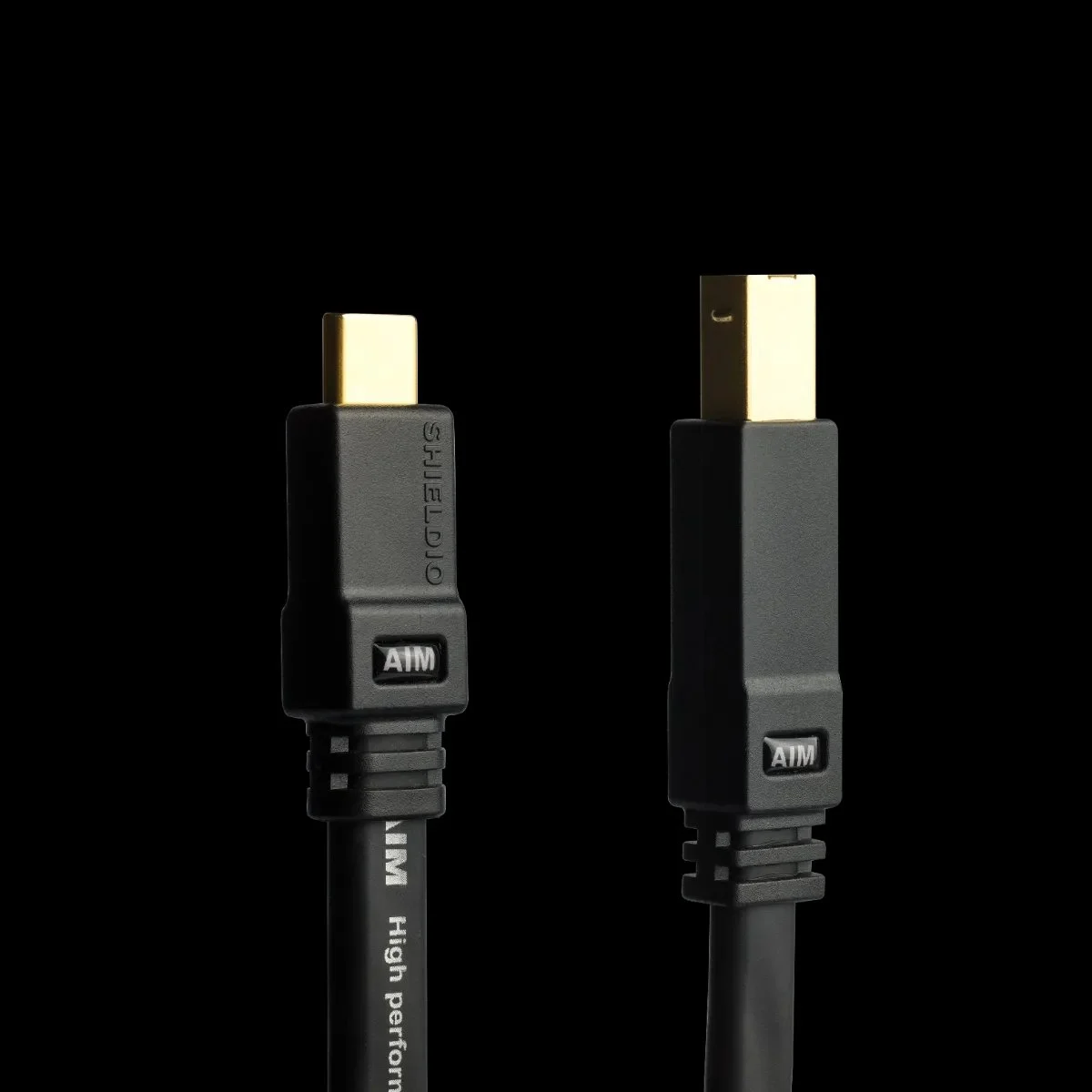

Newly developed cable with optimal connector for TypeC / TypeB under the N-ZERO Concept.
Uses a oxygen-free copper hybrid conductor coated with pure silver.
A SP separate flat structure created to optimally control distance between the signal and power lines.
Mounts a filem stabilizer that produces powerful shielding effects and controls changes in characteristics.
-
Connector Type: USB "C"plug / USB "B"plug
Connector Size: Type C: W12.20mm x H29.55mm x D8.20mm (Excluding protrusions) — Type B: W11.10mm x H43.93mm x D10.00mm (Excluding protrusions)
Contacts: Gold Plated
Standards: USB 2.0(USB High/Full speed)
Cable Size: 8.0mm x 4.5mm(Flat)
Cable Color: Black
Conductor Size: AWG21 & AWG26
Number of conductor: Twisted Pair x 2(4pcs)
Cable Shield: Highly Efficient Aluminum Shield + High Density Copper Braid
All of the names and specifications of our products comply with the USB standards.
Make sure that the power of the main unit is turned off, and then connect the USB cable.
* Please check the shape of the terminal carefully before connecting. -
