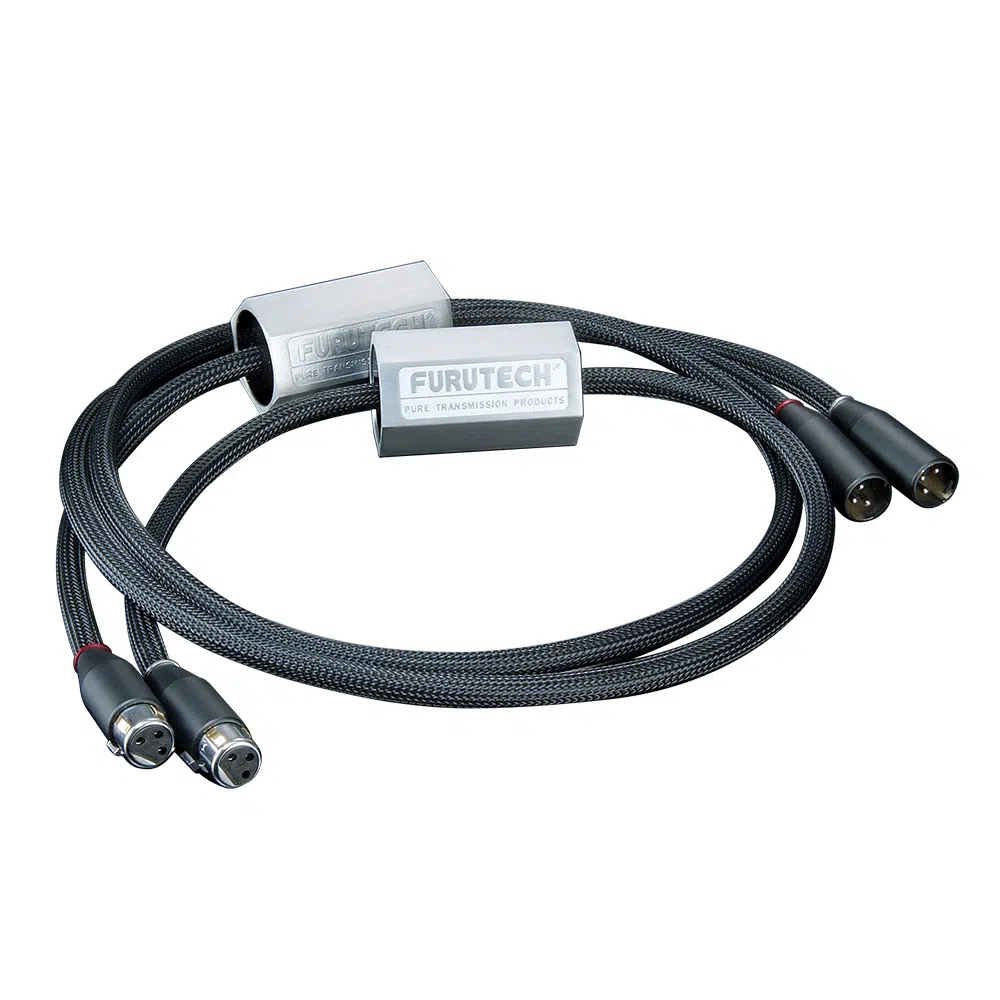

Furutech Audio Reference III Analogue Interconnect
Top of the line double-shielded α (Alpha)-OCC conductor interconnects, power cords and digital cables featuring extraordinary build quality and Formula GC-303 antimagnetic EMI-absorbent modules surrounding the cable offering greater resolution, more powerful dynamics, and virtuoso performances from all your components. All connectors are rhodium-plated for optimal signal transfer.
Top of the line double-shielded α (Alpha)-OCC conductor interconnects, power cords and digital cables featuring extraordinary build quality and Formula GC-303 antimagnetic EMI-absorbent modules surrounding the cable offering greater resolution, more powerful dynamics, and virtuoso performances from all your components. All connectors are rhodium-plated for optimal signal transfer.
Top of the line double-shielded α (Alpha)-OCC conductor interconnects, power cords and digital cables featuring extraordinary build quality and Formula GC-303 antimagnetic EMI-absorbent modules surrounding the cable offering greater resolution, more powerful dynamics, and virtuoso performances from all your components. All connectors are rhodium-plated for optimal signal transfer.
Features:
- Double-shielded α (Alpha)-OCC Conductors eliminate radiated noise
- Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable
- High performance beautifully engineered rhodium plated RCA [FP-106 (R)]
- Center filament pin [FP-106 (R)] a high-contact work of engineering art composed of nonmagnetic rhodium-plated phosphor bronze with Teflon dielectric
- RCA connector backbone composed of nonmagnetic rhodium-plated eutectic cast brass with beautifully-finished nonmagnetic brass outer locking shell.
- Shield 1 0.12 mm α (Alpha) conductor wire braid
- Shield 2 special EMI-absorbent Formula GC-303 Modules for superior noise isolation
- Insulated with air-foamed HDPE reducing capacitance and damping vibration
- Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency “presence region” glare.
- GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range, better defining the original recording’s venue. Natural, unforced detail reveals nuance and energy for an engaging musical experience.
- α (Alpha) Conductor Is Composed Of Fine PCOCC Wire Strands Treated With Furutech’s α (Alpha) Cryogenic and Demagnetizing Process.
-
Construction and Materials
30-strand α (Alpha)
OCC Conductor・.18mm, 1.14mm diameter
Insulation: 30％ air-foamed HDPE (Red/White) 2.60mm diameter
Cable Lay: Two twisted cores with cotton yarn- Cable Wrap: Non-woven fabric wrap ~5.8mm diameter
Shield-1: 0.12mm braided α (Alpha) Conductor・Braid density: 80％ UP x 6.3mm diameter
Sheath: Two layers flexible PVC (Dark Brown) 8.0mm diameter
Shield-2: Special EMI- and noise-absorbent Formula GC-303 module
Jacket: Nylon yarn braid. ~10.5mm diameter
Electrical Properties of Cable Test Method
Max. Conductor Resistance: 26.4 Ω／km JISC3005 6 20℃
Min. Insulation Resistance: 1000 MΩ‧km JISC3005 9.1 20℃
Dielectric Strength: AC. 500 V／1 min JISC3005 8
Electrostatic Capacitance: Approx 42 PF／m at 1 KHz
Characteristic Impedance: Approx 120 Ω at 100 MHz
