Audio-Technica AT-VM740xML Phono Cartridge
The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.
Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.
Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.
Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
Easy to Install & Use
Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

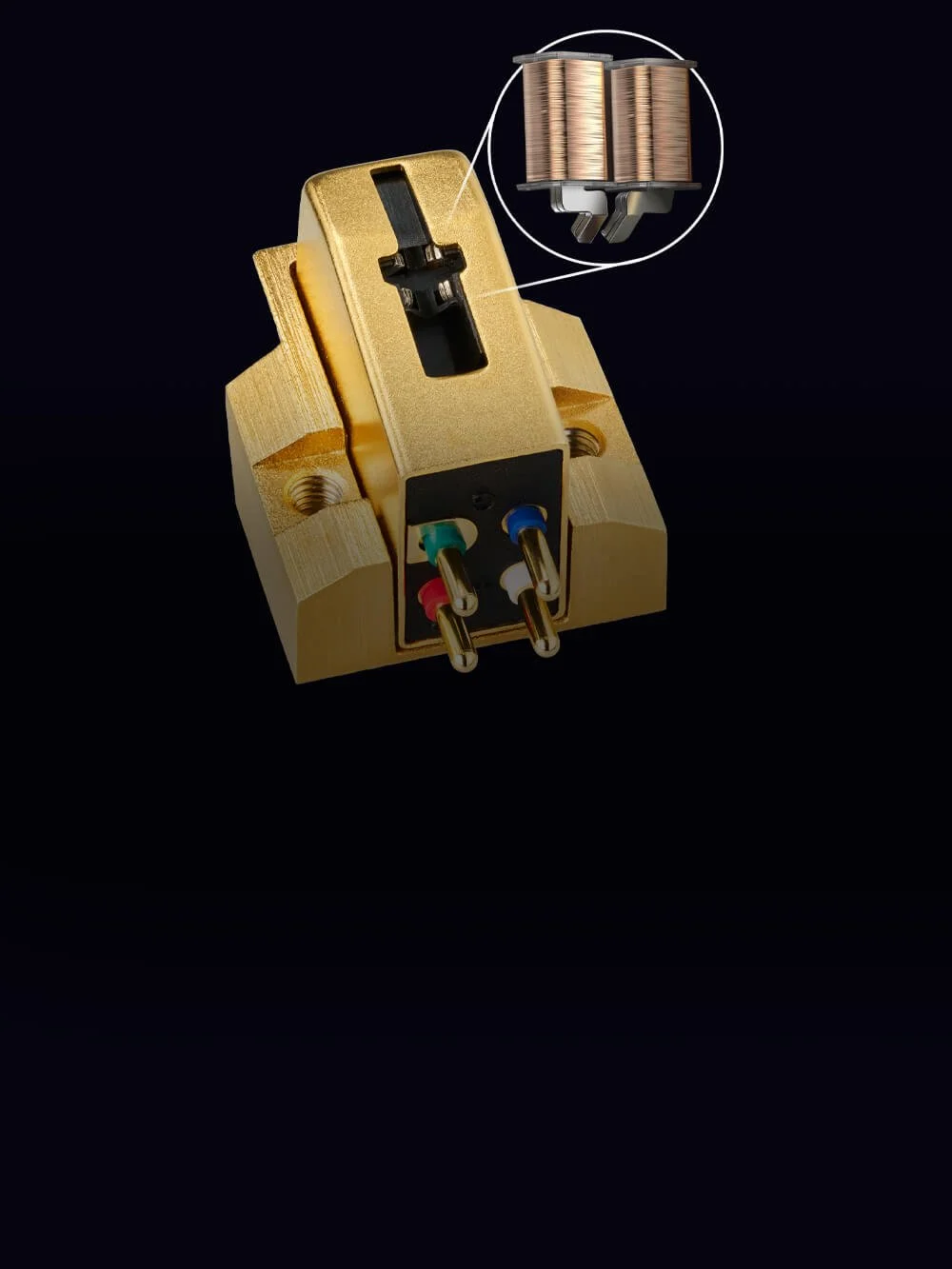

Highly Efficient Generator
The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns* enhances transient response for clean, lifelike sound.
*Compared to VM series cartridges.

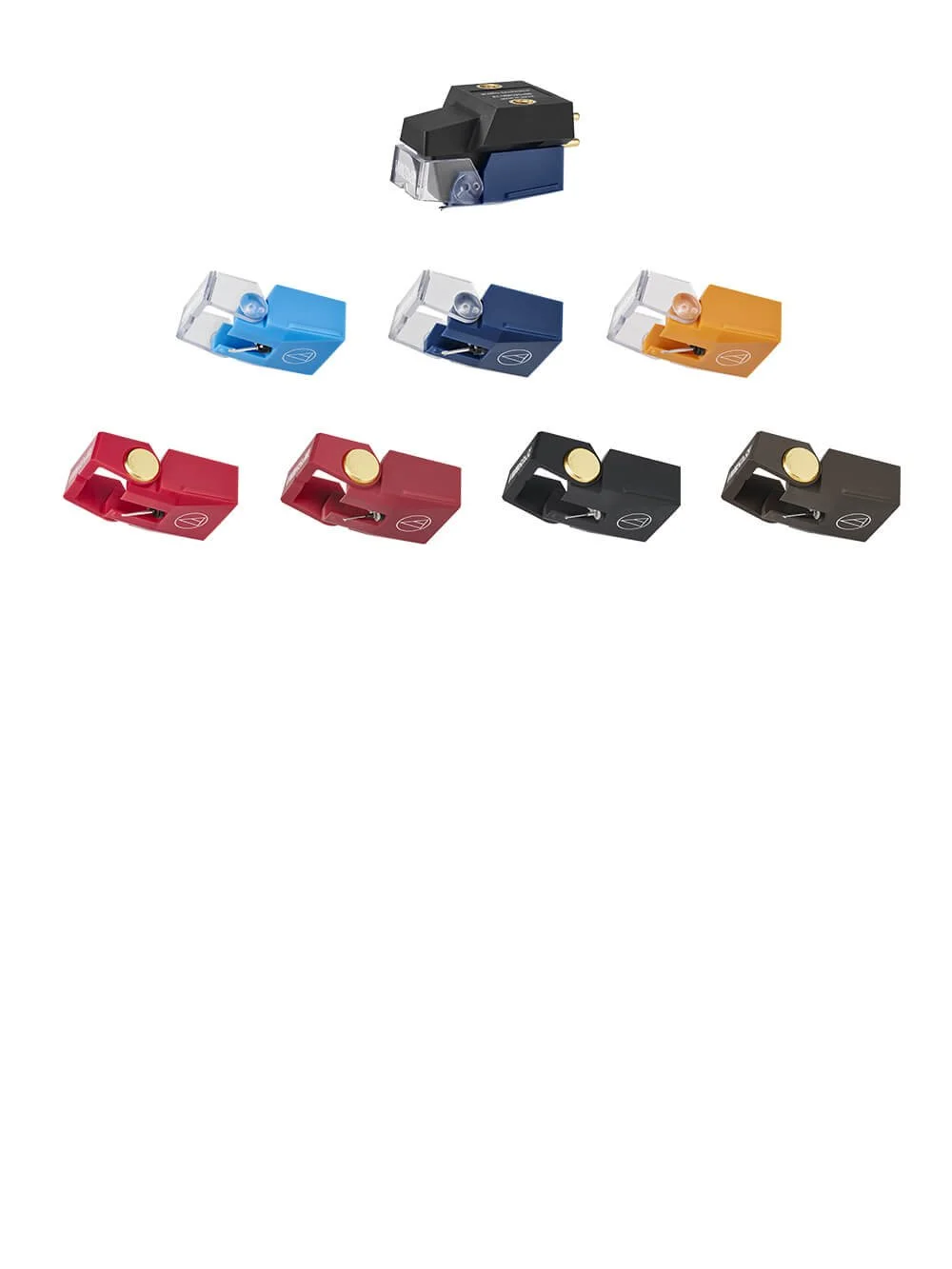

Interchangeable Styli
Since all AT-VMx series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx replacement stylus* with any VMx cartridge for easy experimentatuioin with sound characteristics.
AT-VMN10xCB (conical/bonded/aluminum cantilever)
AT-VMN20xEB (elliptical/bonded/aluminum cantilever)
AT-VMN30xEN (elliptical/nude/aluminum cantilever)
AT-VMN40xML (microlinear/nude/aluminum cantilever)
AT-VMN45xML (microlinear/nude/boron cantilever)
AT-VMN50xSH (shibata/nude/boron cantilever)
AT-VMN60xSL (specil line contact/nude/boron cantilever)
* Excludes mono models
Features
AT-VMx dual moving magnet cartridge with microlinear stylus
Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli
Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
Center shield plate between the left and right channels reduces crosstalk for clear stereo sound
Die-cast aluminum housing reduces vibrations and resonance
Threaded inserts make cartridge easier to mount, especially to integrated tonearms
V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
Aluminum tapered cantilever reduces mass near the stylus tip for quicker signal transmission
Compatible with any turntable headshell that accepts 1/2" cartridges
Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application
*Excludes mono models
-
Frequency Response: 20 to 25,000 Hz
Channel Separation: 25 dB (1 kHz)
Vertical Tracking Angle: 20°
Tracking Force: 1.8 to 2.2 g (2.0 g standard)
Stylus Construction: Nude Microlinear
Recommended Load Impedance: 47 k ohms
Coil Impedance: 3.2 k ohms (1 kHz)
DC Resistance: 750 ohms
Coil Inductance: 480 mH (1 kHz)
Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
Output Balance: 1.0 dB (1 kHz)
Cantilever: Aluminum tapered pipe
Static Compliance: 20 × 10-6 cm/dyne
Dynamic Compliance: 7 × 10-6 cm/dyne (100 Hz)
Dimensions: 29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D)
Accessories Included: Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), washer × 2, Non-magnetic screwdriver, Brush
Threaded Hole: M2.6 × 2
Recommended Load Capacitance: 150 to 250 pF
Replacement Stylus: AT-VMN40xML* (sold separately)
Stylus Curvature Radius: 2.2 × 0.12 mil
Type: VM
Weight: 8.8 g (0.31 oz)
Notes: * The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
For product improvement, the product is subject to modification without notice.
-
