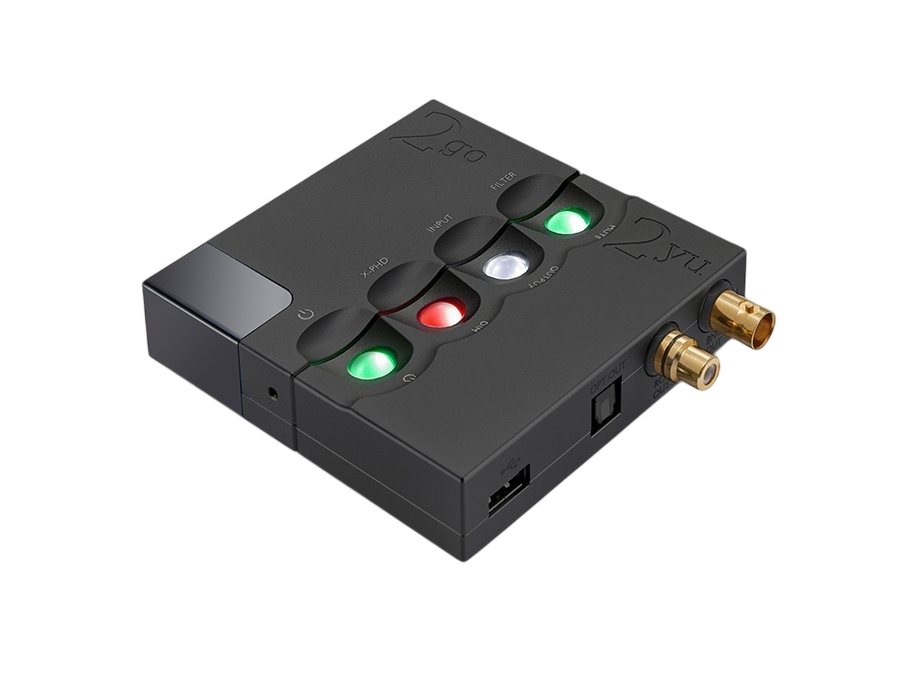

Chord 2yu Streaming Transport
The 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler.
Key Features: Connect 2go to your choice of DAC - Ultra-low jitter design - Compact size ideal for multi-room home installations - Micro USB powered.
The 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler.
Key Features: Connect 2go to your choice of DAC - Ultra-low jitter design - Compact size ideal for multi-room home installations - Micro USB powered.
The 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler.
Key Features: Connect 2go to your choice of DAC - Ultra-low jitter design - Compact size ideal for multi-room home installations - Micro USB powered.
2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler. 2yu connects directly to 2go to add TOSLINK optical S/PDIF, coaxial and BNC (both 75 ohms) digital outputs, plus a cleverly integrated USB-A output.
2yu boasts 2,000 MIPS (million instructions per second) of processing power, an integrated sample rate converter, plus a low-jitter audio phase lock loop. Highly flexible in its potential applications, 2go with 2yu is also ideal for installers wishing to create a discreet remote Roon streaming solution: the duo can be wired into an Ethernet port to provide streaming to a system in any room.
Like 2go, 2yu is also hand-made in the UK using aircraft-grade aluminium and the same high-quality manufacturing processes inherent in all Chord Electronics products. Like the Hugo 2, 2yu features four polychromatic spherical controls governing output selection, power, mute and dim functions.
-
Compatibility: In order for 2yu to inherit streaming/music transport capabilities or function as an audio interface, a connection with 2go is required.
Power supply: Micro USB (5v 1amp minimum required) – through 2go
PCM and DSD support: 44.1kHz – 768kHZ | DSD 64 to DSD 256 (Dependant on output)
Sample rate converter: Integrated, automatic downsampling is provided if a higher sample rate is being played than the output can support.
Digital audio outputs:
USB Type-A (44.1kHz – 768kHz / DSD 256)
BNC Coax (44.1kHz – 384kHz /DSD 64)
RCA Coax (44.1kHz – 384kHz /DSD 64)
Optical (44.1kHz – 192kHz / DSD 64)
Processing power: 2000MIPS
Weight with 2go: 361g
Dimensions with 2go: 115mm (H) x 100mm (W) x 22mm (D)
-
