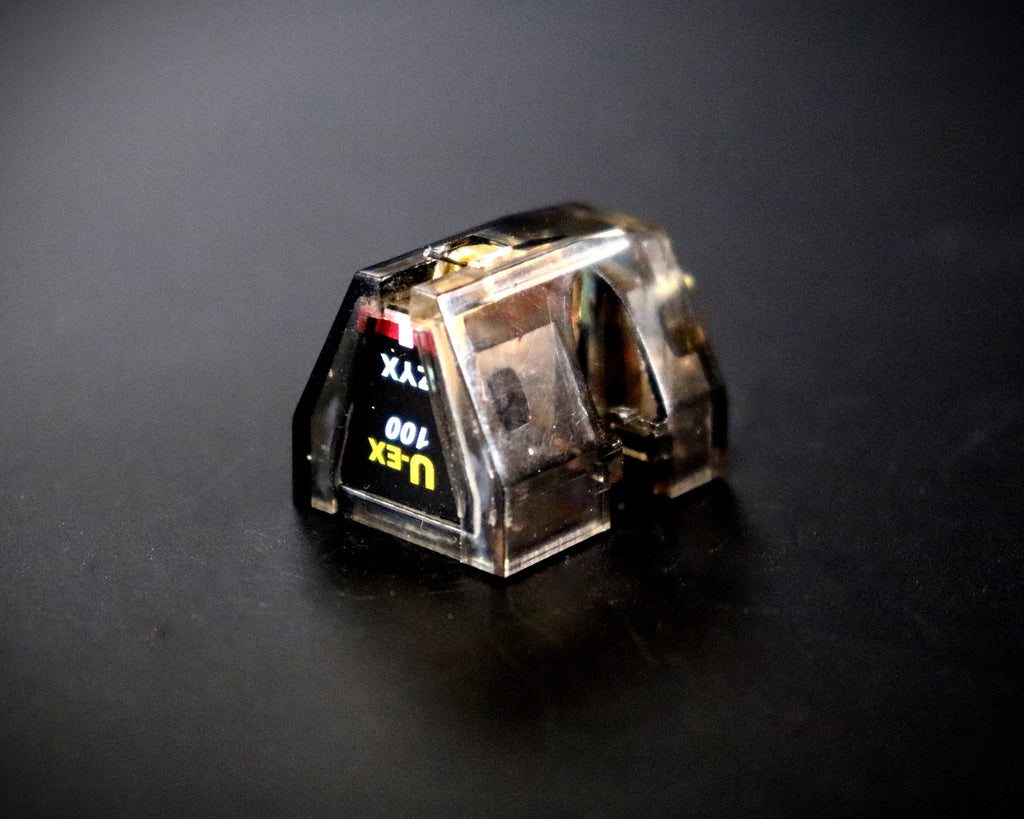

ZYX Ultimate EX-100 Phono Cartridge
The new "Exceed" 2023 series cartridges are equipped with the newly developed "One-Point Ground Terminal, Dual Output System".
The new "Ultimate EX" series features a carbon composite cantilever, replacing boron. Made from 1000 carbon fibers, the C-1000 cantilever offers exceptional physical properties and outstanding playback performance.
All ZYX cartridges come with:
Silver base (+1g total weight) for enhanced dynamics
ZYX nuts (+0.2g total weight) for easier installation and improved detail
The new "Exceed" 2023 series cartridges are equipped with the newly developed "One-Point Ground Terminal, Dual Output System".
The new "Ultimate EX" series features a carbon composite cantilever, replacing boron. Made from 1000 carbon fibers, the C-1000 cantilever offers exceptional physical properties and outstanding playback performance.
All ZYX cartridges come with:
Silver base (+1g total weight) for enhanced dynamics
ZYX nuts (+0.2g total weight) for easier installation and improved detail
The new "Exceed" 2023 series cartridges are equipped with the newly developed "One-Point Ground Terminal, Dual Output System".
The new "Ultimate EX" series features a carbon composite cantilever, replacing boron. Made from 1000 carbon fibers, the C-1000 cantilever offers exceptional physical properties and outstanding playback performance.
All ZYX cartridges come with:
Silver base (+1g total weight) for enhanced dynamics
ZYX nuts (+0.2g total weight) for easier installation and improved detail
World's First C-1000 Carbon Cantilever in Moving Coil Cartridge
The ZYX Ultimate series (100, Airy, 4D, OMEGA, and DYNAMIC) introduces the first-ever carbon cantilever in a moving coil cartridge. The carbon rod is composed of 1000 pieces of composite carbon fiber, hence the name "C-1000 Carbon Cantilever." This composite carbon fiber is more rigid than aluminum, iron, and titanium. Additionally, its specific gravity is just half that of boron. As a result, the C-1000 carbon cantilever represents the ultimate and ideal material for analogue record playback.
The carbon cantilever offers an extremely wide frequency range and superior tracking performance. Another significant advantage is that the mechanical sound signal picked up at the stylus can travel straight and directly to the coil through the 1000 pieces of carbon fibers. This design ensures that reflected, repeated, or modulated mechanical sound signals are entirely absent.
The overall result is a sound experience that is the finest, most natural, dynamic, and true to the source you have ever encountered.
Double Structure Body
By combining non-metallic materials in the body construction, resonance occurring on the body's surface is prevented from influencing the generator system. An additional benefit of this construction method is that it is both lightweight and rigid.
Magnetic Circuit for True Stereo
This magnetic circuit has an ideal construction that meets 15 vital design criteria. As a result, you will enjoy a smooth and natural stereo sound with extremely even balance between both channels.
Micro-Ridge Stylus
The stylus used in the Ultimate series has the edges of the diamond shank set parallel to the sides of the cantilever. This design aligns the hardest axis of the crystal as the contact point with the record groove, providing stable and smooth tracing and producing a highly refined sound. Additionally, this alignment extends the stylus’s lifetime to 2000 hours. The stylus is of the Micro-Ridge type, originally developed in Japan, which offers the highest performance. The contact radius is consistently 3μm, achieved by a ridge with a 6μm thickness.
Pure 6N OFC Crystal Copper Wire Generator Coils
This perfect crystal copper wire is produced through a special process to achieve an even sound balance across the entire audible range.
-
Type: Moving Coil (Dynamic), REAL STEREO” Generator System
Cryogenic Treatment: Temperature: -196 ℃ (-320оF)
Coil Wire: 6N OFC Crystal Copperφ0.035mm
Output Voltage: 0.24mV (HO:0.48mV) (3.54cm/sec, 1kHz)
Frequency Response: ±1dB -- 10 Hz - 100 kHz/ 20 Hz - 20 kHz
Channel Separation: ＞ 30dB 〔 1kHz 〕
Channel Balance: ＜ 0.5dB 〔 1kHz 〕
Recommended Tracking Force: 2.0gm 〔 20 ゜C-25 ゜C 〕
Tracking Force Range: 1.7gm - 2.5gm
Trackability: ＞ 60μm /2.0gm
EQ Compliance: horizontal - 15×10-6cm/dyne -- vertical - 12×10-6cm/dyne
Internal Impedance: 4.0 Ω (HO:8.0 Ω)
Load Impedance: ＞ 100Ω
Cantilever Material: C-1000 Carbon φ0.30mm
Stylus: Micro-Ridge Solid Diamond□0.1mm
Contact Radius, Life Time: 3μm×60μm, 2000Hour/2.0gm
Output Terminals: φ1.25mm gold plated〔EIA〕
Terminal Board: Glass Epoxy Plate
Dimensions: 16.2mm(W)×19.7mm(L)×x17.6mm(H)
Net Weight: 5.0gm, 7.7gm(TB), 9.0gm(SB)
