Cartridge
One Piece Diamond Cantilever
The Grand Master Extreme employs a 0.22mm square one-piece diamond cantilever, where the diamond cantilever and the needle tip are crafted from a single diamond. Typically, the diamond tip of the cantilever and the needle tip are bonded together using adhesive. However, with the one-piece diamond cantilever, the cantilever and the needle tip are integrated into a single unit, enabling a more direct transmission of information from the needle tip.
-

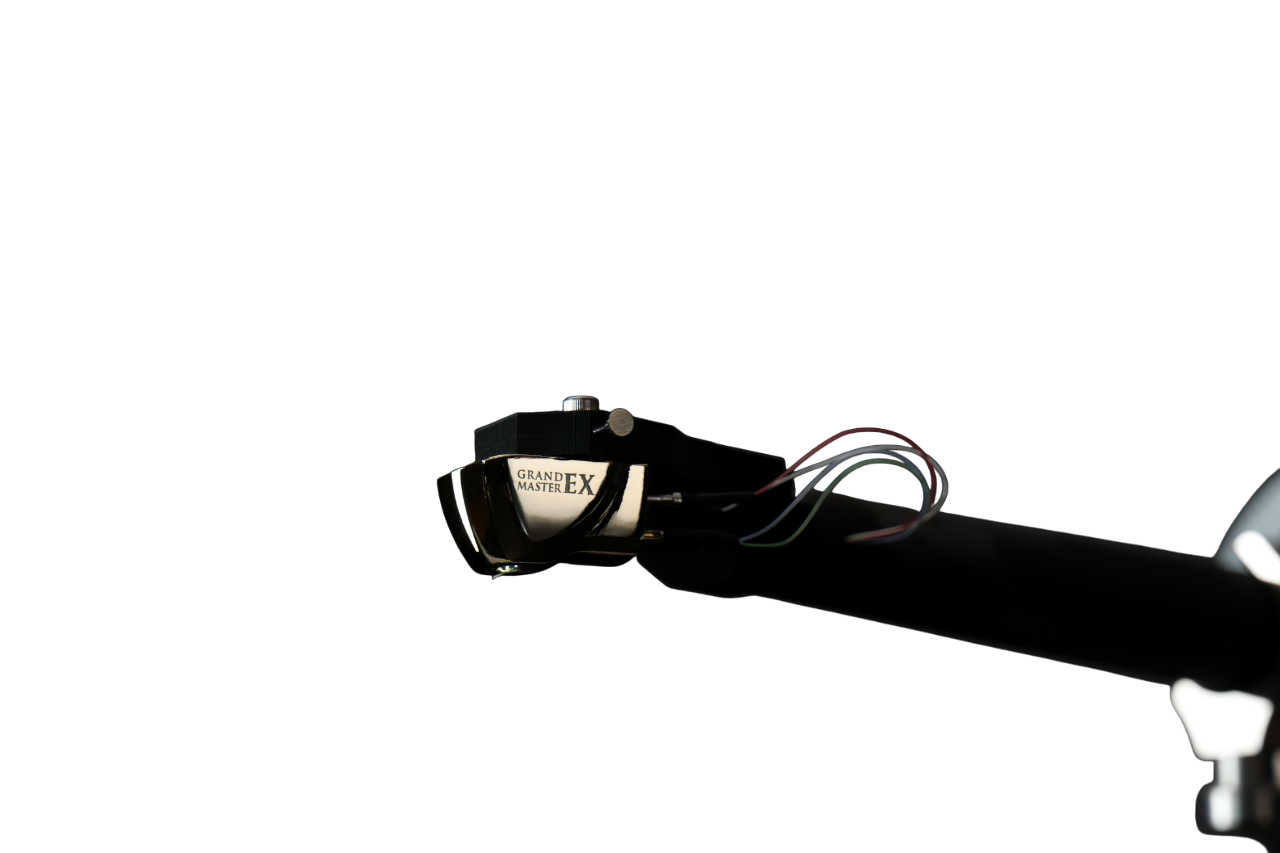

DS Grand Master EX Optical Cartridge
Signal output: Photo-electric Conversion
Channel separation: 27db more（1kHz）
Weight: 7.7g
Output signal level: 70mV more
Canti-lever & Needle: ONE PIECE DIAMOND
Body material: Ultra duralumin
Cantilever holder material: Stainless
Needle pressure: 2.0g～2.2g(2.1g is recommended)
Stylus: Micro Ridge
-
