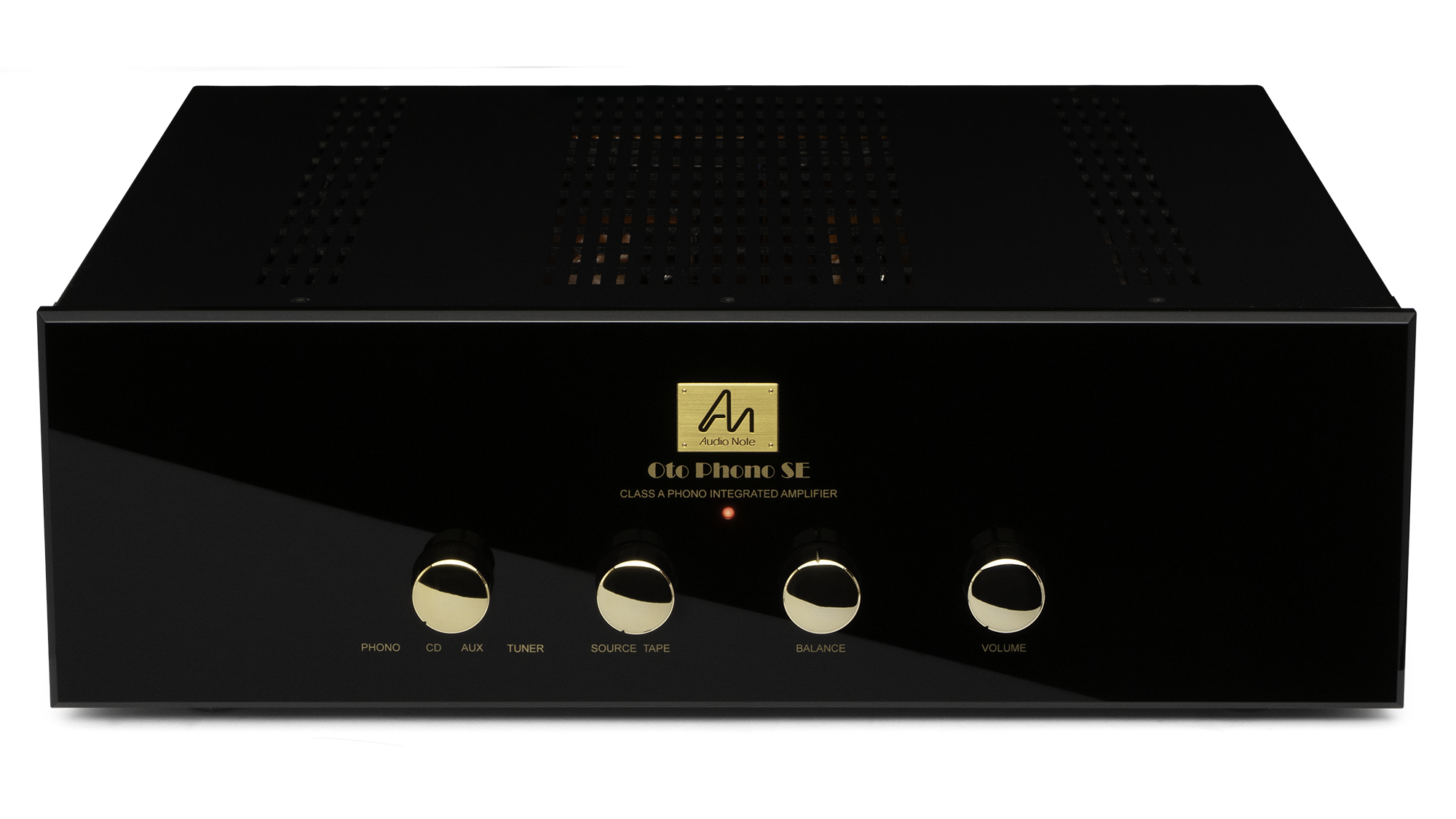

Over the last three decades, the design of the Oto SE has undergone various small evolutions, but this time, Lead Designer Andy Grove decided it was time to give the Oto SE a complete makeover. The result is an amplifier with a more realistic 'bass kick', the kind of physical presence you feel when you are in the room with a kick drum or a bass guitar. It remains an all-round musical, fun-to-live-with amplifier, but it can now summon a serious amount of attitude when the recording demands it.
The refreshed Oto SE has a new output transformer designed specifically for the amplifier and wound in-house. The main PSU has been redesigned, now including a choke (also in-house designed and made), with optimised time constants, along with some refinements to the power amp board. The phono stage has also been improved, increasing its sensitivity and, together with the new power amplifier board, it means the additional line stage that was necessary in the old Phono version can be removed. This retains phase integrity and reduces noise.
The wiring loom and internal shielding have also been revised which, together with the new PSU and in-house designed and manufactured mains transformer, have yielded significant improvements everywhere.
The all new SE 35 version improves on various areas:
New output transformer designed for the Oto SE, and wound in-house.
The main PSU has been redesigned,
Now includes a Choke (also in-house designed and made), with optimised time constants,
Tweaks to the power amp board.
Read Andy Grove’s note on the new OTO SE 35 here.
The OTO SE Integrated Amplifier is Level 2, Pure Class A, Parallel Single Ended design, producing an outstanding level of performance. Available in Line and Phono versions (with an onboard valve MM RIAA stage). Part selection is optimised to realise the most neutral and realistic sonic reproduction.
Some of the superior quality components utilised in the OTO SE include:
Audio Note (UK) in-house made tinfoil signal capacitors, used in the most critical areas.
Audio Note (UK) custom Standard and Seiryu electrolytic capacitors used in critical areas.
Audio Note (UK) Tantalum resistors used in critical areas.
Audio Note (UK) custom in-house designed and wound BA C Core mains transformer and choke power supply.
Audio Note (UK) custom in-house designed and wound M6 Lamination output transformers.
Some of the superior quality components utilised in the OTO SE Signature include:
Improved selector switches and internal cabling
Audio Note (UK) in-house made copper foil signal capacitors, used in the most critical areas.
Audio Note (UK) Standard and Seiryu electrolytic capacitors used in critical areas.
Audio Note (UK) Tantalum and Niobium resistors used in critical areas.
Audio Note (UK) custom in-house designed and wound BA C Core mains transformer and choke power supply.
Audio Note (UK) custom in-house designed and wound I HiB core output transformers.
Some of the superior quality components used in the OTO SE Silver Signature include:
Improved selector switches and internal cabling
Audio Note (UK) in-house made copper foil signal capacitors, used in the most critical areas.
Audio Note (UK) Standard, Seiryu and Kaisei electrolytic capacitors used in critical areas.
Audio Note (UK) Non-magnetic Tantalum and Silver Niobium resistors used in the most critical areas.
Audio Note (UK) custom in-house designed and wound I HiB Core mains transformer and choke power supply.
Audio Note (UK) custom in-house designed and wound S HiB core output transformers.
-
Power: 8.2W into 8ohms @ 5% THD at 1kHz
Valves: x4 EL84, x2 ECC83, + (Phono models only x1 ECC82, x1 ECC83, x1 6DJ8)
Line Sensitivity: 205mV for 8W into 8 ohms at 1kHz
Phono Sensitivity: 2mV for 8W into 8 ohms at 1kHz
Phono hum+noise: -100dB Awt ref 8V
Phono hum+noise: not yet available.
Valves:
OTO SE 35: 4x EL84 / 2x ECC83
OTO SE 35 Signatures and OTO SE 35 Silver Signature: 4x EL84 / 2x E83CC
Phono Version also include:
ECC83/7025 / 6DJ8
Due to Audio Note (UK)'s ongoing research and development program, specifications are subject to change without notice.
Please contact us for pricing information.
On demo !
For the Zero range, we decided to design an integrated amplifier rather than a pre / power combination. The result is the IZero, and it has exceeded all of our expectations. Offering a level of performance that was previously considered unthinkable for an amplifier of such diminutive size and price, the IZero really is something very special, producing a bold, rich, smooth and delicate performance, whilst offering a level of fine detail finesse that is quite incredible.Valve compliment consists of four ECL82 triode / pentodes operating in Class a/b, producing 8 Watts per channel. Internally it features a level of component quality that is unmatched at this price point, including our own Audio Note (UK) custom designed and manufactured output transformers.
