Designed to inspire
The Onkyo Muse Series fuses 80 Years of Japanese audio precision into an all-in-one 2-channel system - boasting the latest streaming services to provide a universe of music and entertainment.
Grand dreams and elegant design
The Onkyo Muse Series simplifies an intricate, multifaceted audio system into an approachable, compact design with a beautiful LCD screen and enhanced interface - while maintaining our passion for premium acoustic performance.
Powerful, inspired sound
The Onkyo passion for sound refinement is manifested in the inspiring Muse Series. The Y-50 provides a powerful and detailed soundstage that conveys the artist's true intention without compromise. Designed with a full digital circuit and an Axign class D amplifier equipped with MOS FET output, the Y-50 delivers an impressive 250W (4 ohms) of accurate power - driving any size speaker with authority and bringing out its full potential.

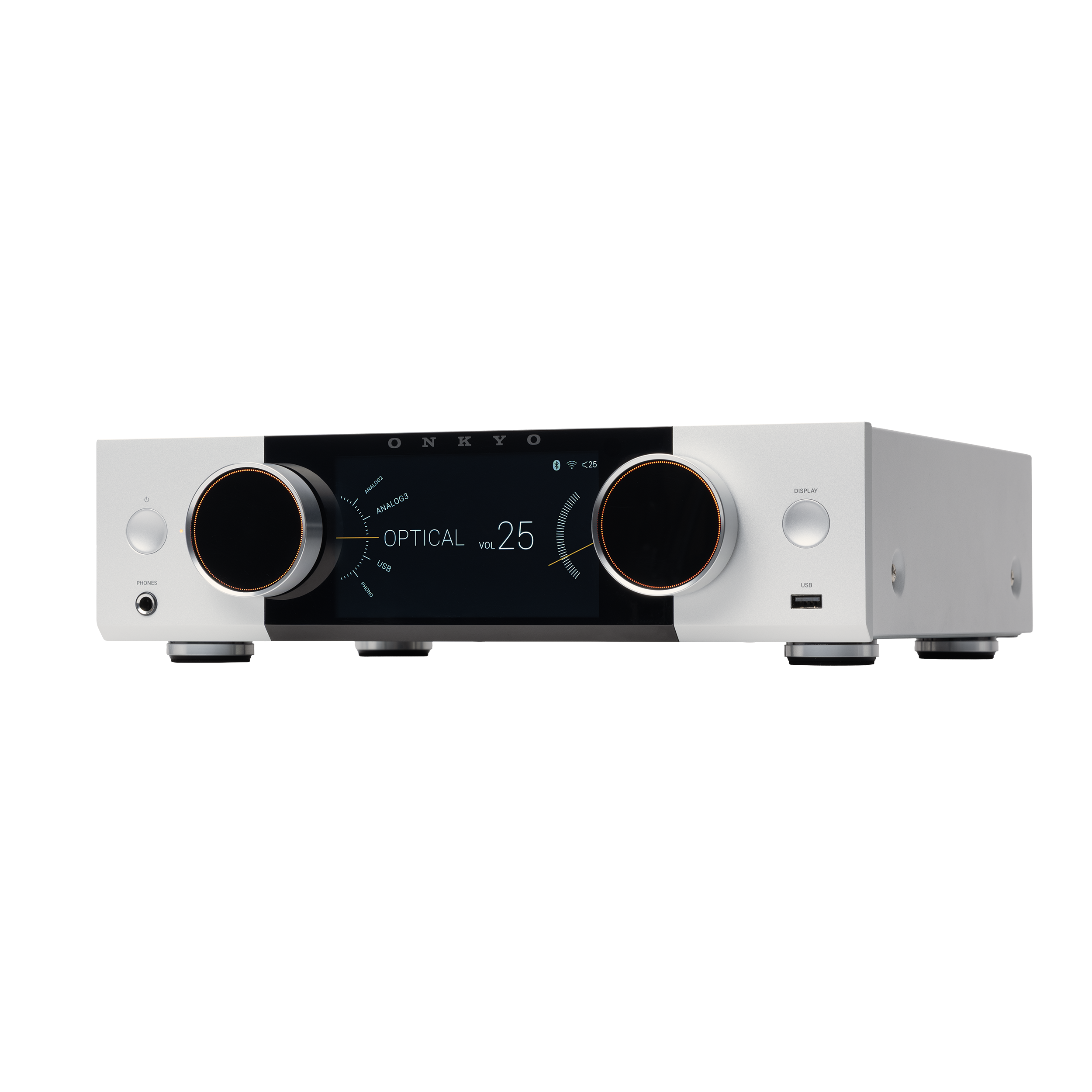

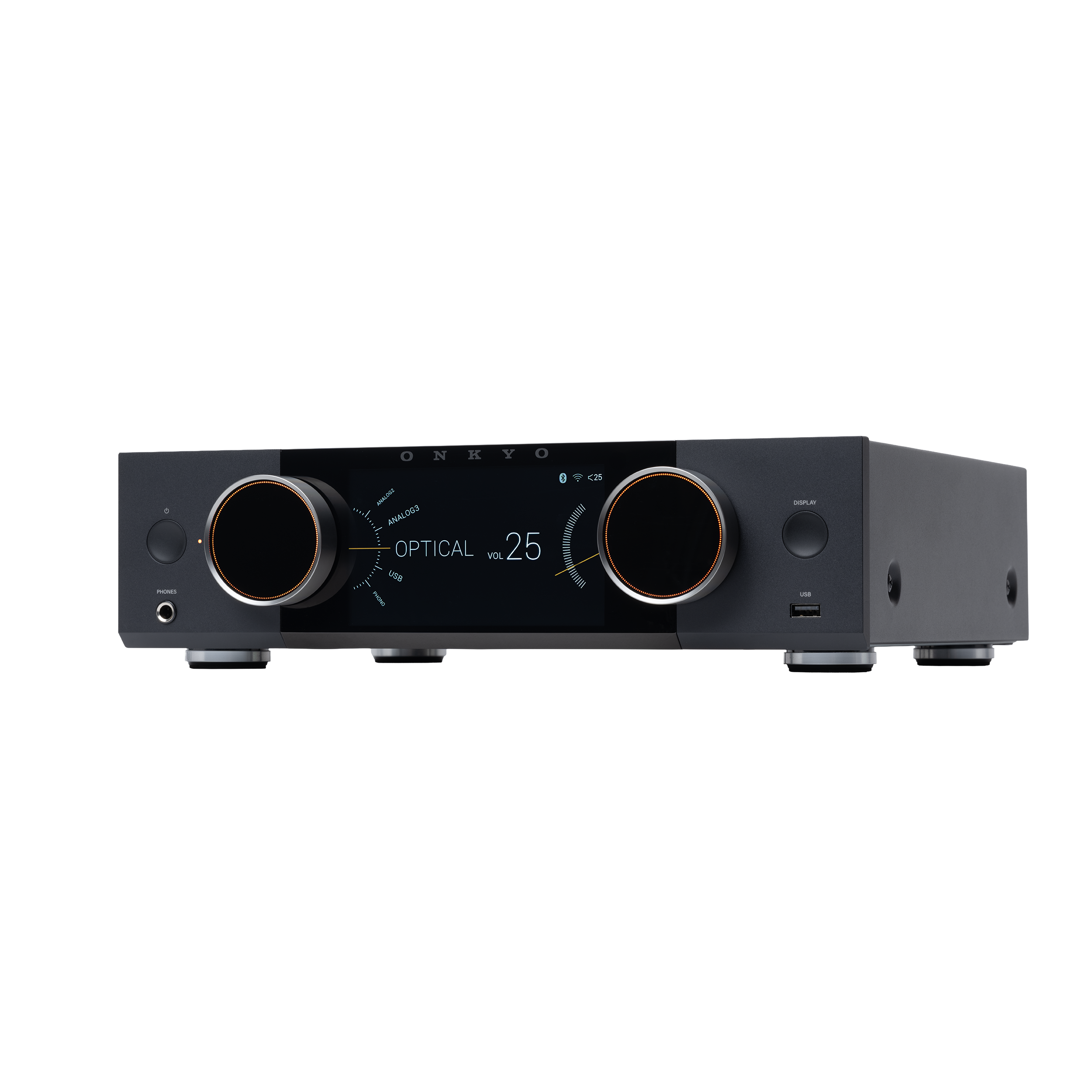

The Onkyo Muse Series Y-50 features a 5.46-inch color LCD display that provides detailed information – such as the song currently playing and an analog-style VU meter – creating a cutting-edge experience. Seamlessly play connected devices or stream your content from any of the following built-in platforms: Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Chromecast,. Using the Onkyo Controller app (available on all app stores) you can command the Y-50 and configure its settings for a transformative hi-fi experience.
Built to stir the soul

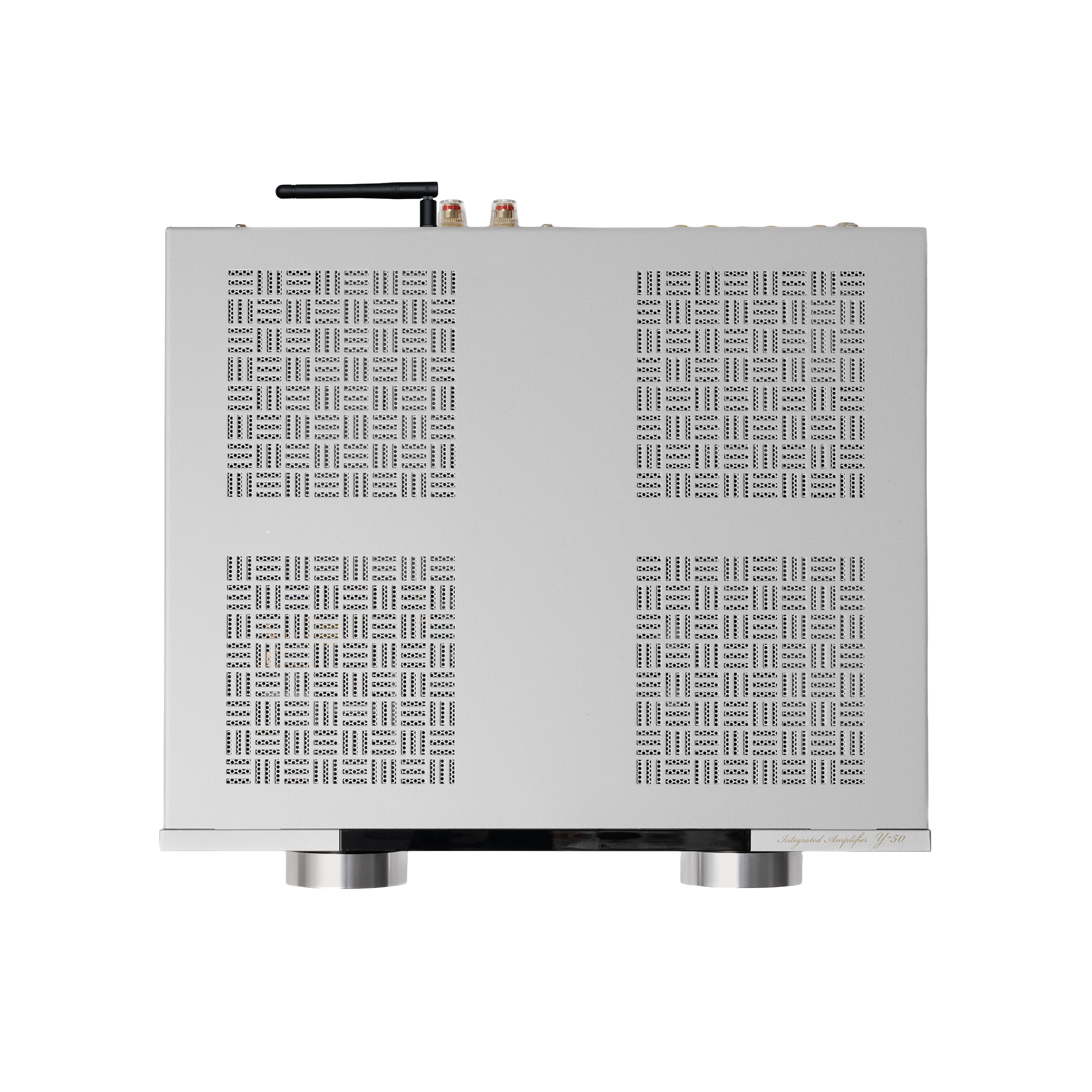

The compact design of the Onkyo Muse Series blends seamlessly into any home environment. The aluminum front panel not only gives the unit a high-end look but also provides exceptional strength, preventing speaker vibrations from interfering with sound quality. High-quality, audio-grade speaker terminals provide superior connection to any loudspeaker. The ventilated top plate features a traditional San Kuzushi pattern, expressing Onkyo’s deep Japanese roots and uncompromising commitment to craftsmanship. The electrical circuitry design is precisely temperature-controlled so no fans are needed, enabling quieter operation and better sound quality.
Everything you need for epic audio
Featuring a host of audio connections, the Onkyo Muse Y-50 sports three pairs of analog RCA inputs, a COAX input, a phono input (MM/MC compatible), and an HDMI/HDMI ARC input and HDMI output for video and gaming sound. It supports Ethernet and WiFi, enabling superior streaming playback. The Y-50 also features proprietary Onkyo Room EQ room calibration designed specifically for the Muse Series - measuring your listening environment and optimizing your sound field for the best experience.
-
Custom App: Onkyo Control
Room Calibration: Onkyo Room EQ
Analog Audio Input: RCA(Unbalanced) x 3pair
Digital Audio Input: HDMI IN x1 (HDCP2.3, 4K/120p, 8K/60p, VRR, QFT, ALLM, QMS, SBTM, DSC, HDR10+, Dolby Vision) HDMI ARCCOAX x 1Optical x 1USB-A (Storage playback) x 1HDMI Output1Phono Input1 pair (MM/MC)
Audio Pre Output: RCA(Unbalanced) x 1pair
Subwoofer Output: 1ch
Headphone Output: 1/4”(6.3mm) Jack x 1
Network connectivity: Wi-Fi, Ethernet Terminal (10BASE-T/100BASE-TX)
Bluetooth: SBC, AAC
Network service: Spotify connect, TIDAL Connect, Qobuz connect, AirPlay, Google Cast, Music Server
Output power: (U.S.A.)125w (FTC, 8Ω, 20Hz - 20kHz, THD 0.08%, 2ch driven)/ 250w (4Ω, 1kHz, THD 0.7%, 2ch driven)
Output power :(EMEA/APAC)250w(4Ω, 1kHz, THD 0.7%, 2ch driven) / 125w(8Ω, 20Hz-20kHz, THD 0.08%, 2ch driven)
Amplifier channel: 2ch
Pre Amplifier channel: 2.1ch
Amplifier Type: Class D
Frequency Response: 20Hz~30kHz (+1/-3dB)
Tone control (Bass/ Treble): 100Hz ±10dB / 10kHz ±10dB
Speaker impedance: 4-16Ω
Product Dimensions (W x H x D): 350 x 99 x 337 (mm)13.8 x 3.9 x 13.3 (inches)
Product Weigh: t4.9 kg (10.8lbs)
Package Dimensions: (W x H x D)465 x 225 x 405 (mm)18.3 x 8.9 x 15.9 (inches)
Package Weight: US: 7.2 kg (15.9lbs) EMEA: 7.6kg (16.8lbs)
Standby Power Consumption: Less than 0.4w(Standby), Less than 1.8w(Network Standby)
Power Consumption: 120WAC VoltageAC 100-240V 50Hz/60Hz
-
