Kuzma CAR 70 Phono Cartridge
Please contact us for pricing information.

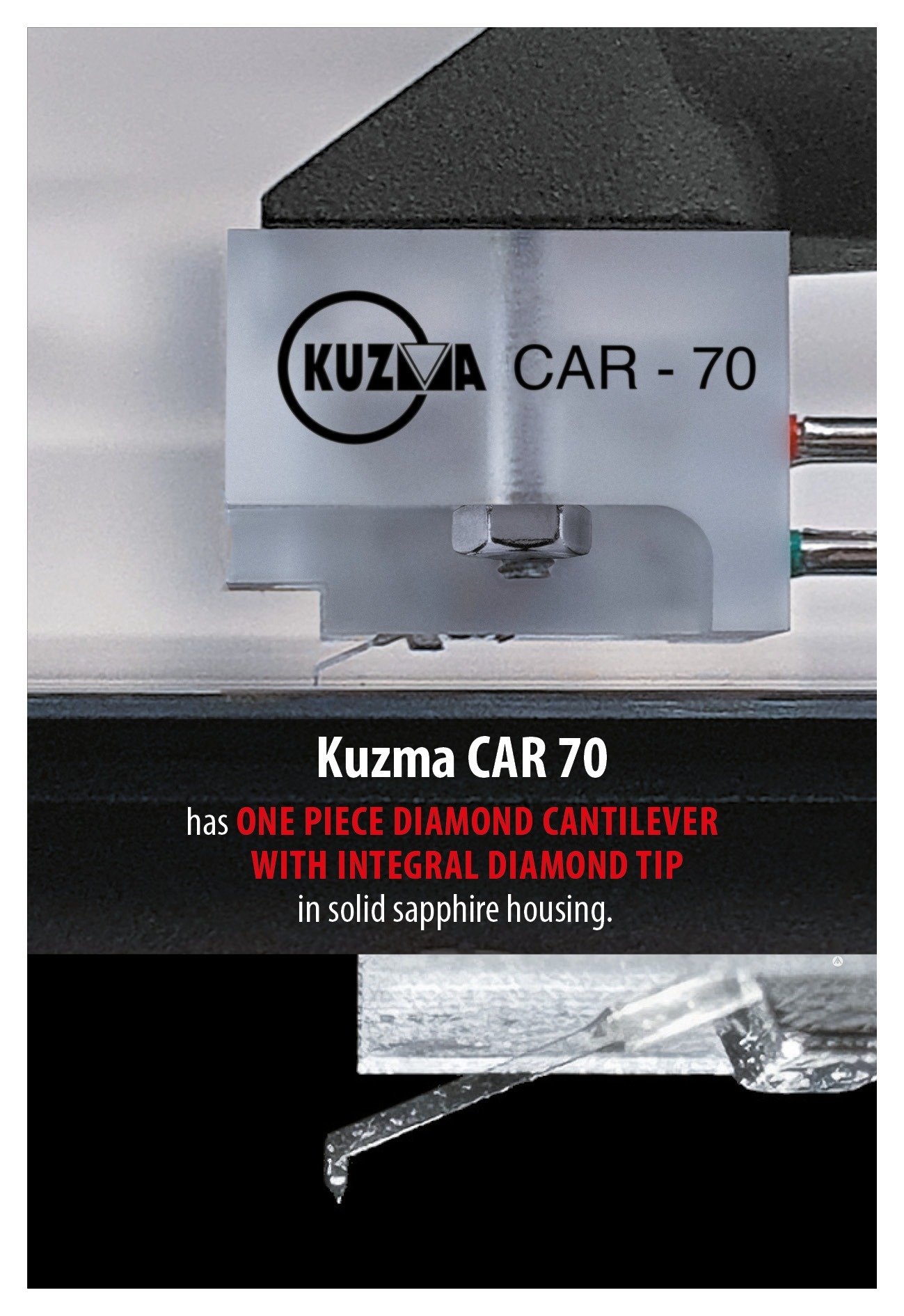

CAR 70 is now our top model, featuring a diamond cantilever with integrated diamond tip, made from a single piece of diamond. This is more rigid and better damped than any other material used for cantilevers. The diamond tip, being part of the cantilever, avoids any glued joints between the cantilever and diamond needle.
The diamond cantilever is encapsulated in a sapphire tube, which holds the coil's plate, providing a rigid structure.
Please contact us for pricing information.
CAR 70 is now our top model, featuring a diamond cantilever with integrated diamond tip, made from a single piece of diamond. This is more rigid and better damped than any other material used for cantilevers. The diamond tip, being part of the cantilever, avoids any glued joints between the cantilever and diamond needle.
The diamond cantilever is encapsulated in a sapphire tube, which holds the coil's plate, providing a rigid structure.
Please contact us for pricing information.
CAR 70 is now our top model, featuring a diamond cantilever with integrated diamond tip, made from a single piece of diamond. This is more rigid and better damped than any other material used for cantilevers. The diamond tip, being part of the cantilever, avoids any glued joints between the cantilever and diamond needle.
The diamond cantilever is encapsulated in a sapphire tube, which holds the coil's plate, providing a rigid structure.
-
Type: Low output MC
Coil wire: 4N Silver wire
Cantilever material: Diamond with diamond tip in one piece
Stylus: Micro ridge
Frequency response: 10 Hz- 45 kHz
Output voltage: 0,3 mV 3,54 cm/ 1 kHz
Channel balance: < 1,0 dB 1 kHz
Channel separation: > 30 dB 1 kHz
Tracking force: 2,1 g
Compliance: 10 x10-6 cm/dyne
Trackability: > 70 micron
Internal impedance: 6 Ohm
Load impedance: > 100 Ohm
Weight: 17 g
