Like other Métronome devices, AQWO 2 can be equipped with a tube output, either installed at purchase or added later. Its conversion function supports PCM and DSD files up to 512 (x8) for an exceptional sound experience.

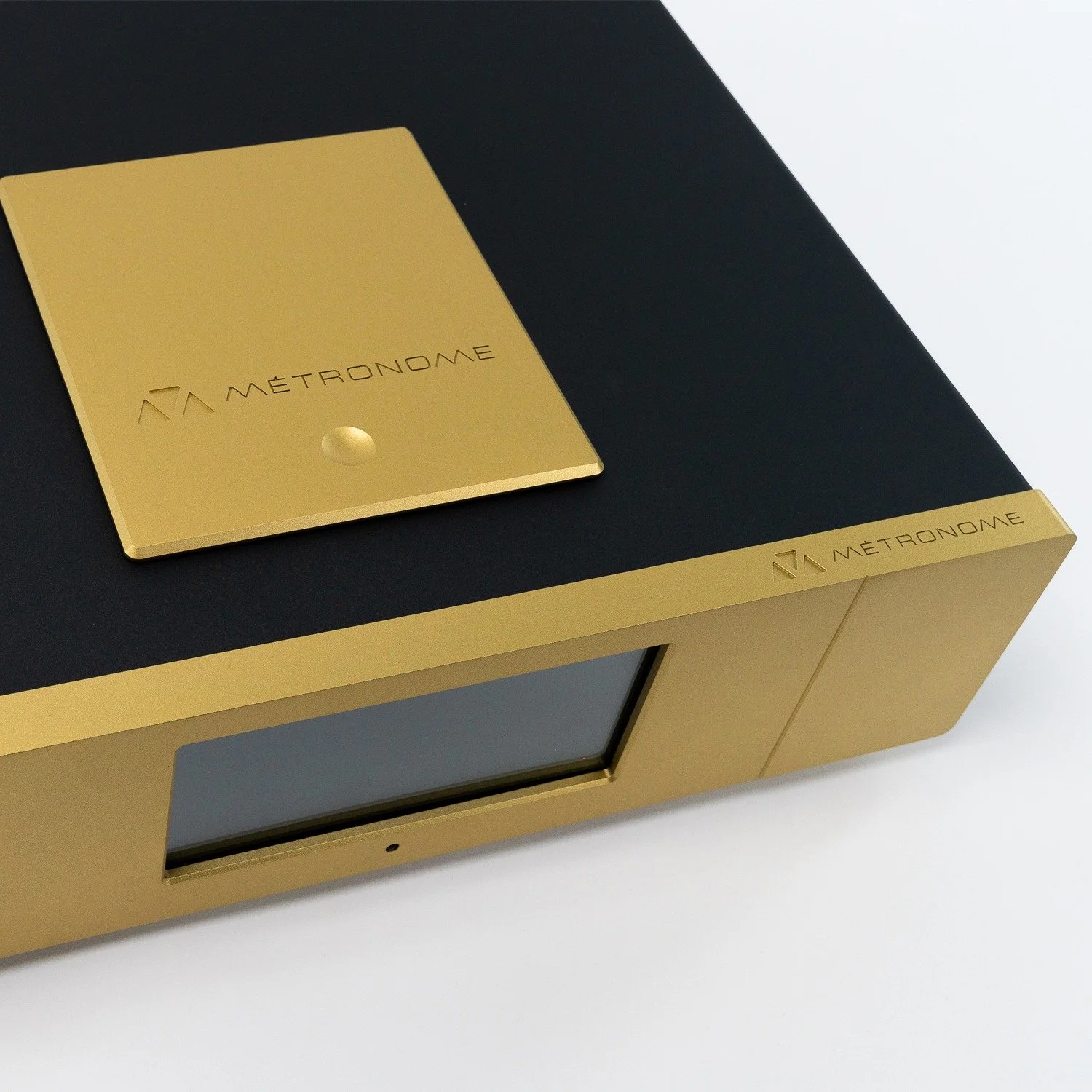

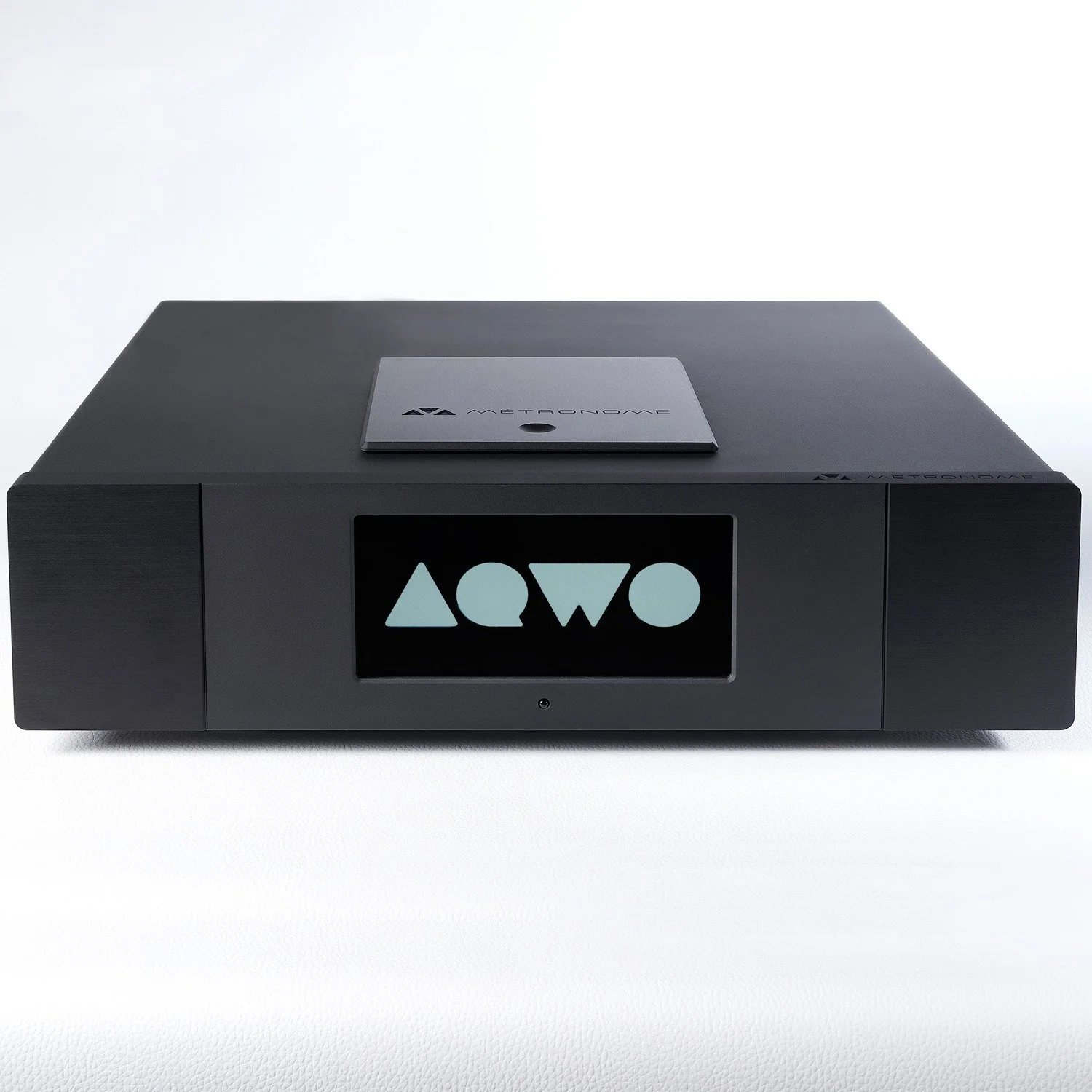

Stronger and more robust than ever, AQWO 2 is available in gold, silver and black finishes.
-
CONVERSION PROCESSORS
Reference
ES9039MPRO
Range
High-End
THD+N
-122 d
Dynamic range
S/N 137 dB
ANALOG OUTPUTS
RCA
Output impedance: 100 Ohms
Max. output level (0dB): 3V
XLR
Output impedance: 150 Ohms
Max. output level (0dB): 3V
DIGITAL OUTPUTS
(resampling available)
S/P DIF
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
AES/EBU
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
I2S
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD256 Native
OPTIONS
Tube outputs
DIGITAL INPUTS
S/P DIF
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
AES/EBU
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
Toslink
PCM: 44.1 to 192 kHz / 32 bits
DSD: DSD64 DoP
USB
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD512 Native
Streaming
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD256 Native
NETWORK
Wi-Fi
Dual Band (2,4 & 5 GHz)
Ethernet
1 x Port Ethernet 10 / 100 / 1000
MQA
Renderer MQA 44.1 to 384 kHz / 32 bits
Supports of protocole
DLNA/UPnP, Audirvāna, Spotify Connect, Roon Ready,
Deezer, TIDAL Connect, Qobuz Connect, vTunner
GENERAL SPECIFICATIONS
Power consumption
40 Watts
Standby power consumption
32 Watts
Operating temperature
+5°C to +35°C
Operating humidity
5% to 90%
USB
1 x Port USB 2.0 (for device update)
Dimensions (L x H x W)
420 x 120 x 425 mm (drive)
Weight
15 kg (drive)
DISPLAY
Size
7 inches
Resolution
1024 x 600
Touch screen
Yes
-
