It retains the brand’s classic aesthetic while pushing the limits of its performance, supporting PCM file playback up to 768 kHz and DSD up to 1024 (DSD x 16), delivering a sound that is both lively and natural.
This generation stands out with two I2S inputs and optional integrated streaming, opening new possibilities for connection and listening while remaining true to Métronome’s spirit of innovation.
-
CONVERSION PROCESSORS
Reference
ES9026PRO
Range
High-End
THD+N
-110 dB
Dynamic range
S/N 124 dB

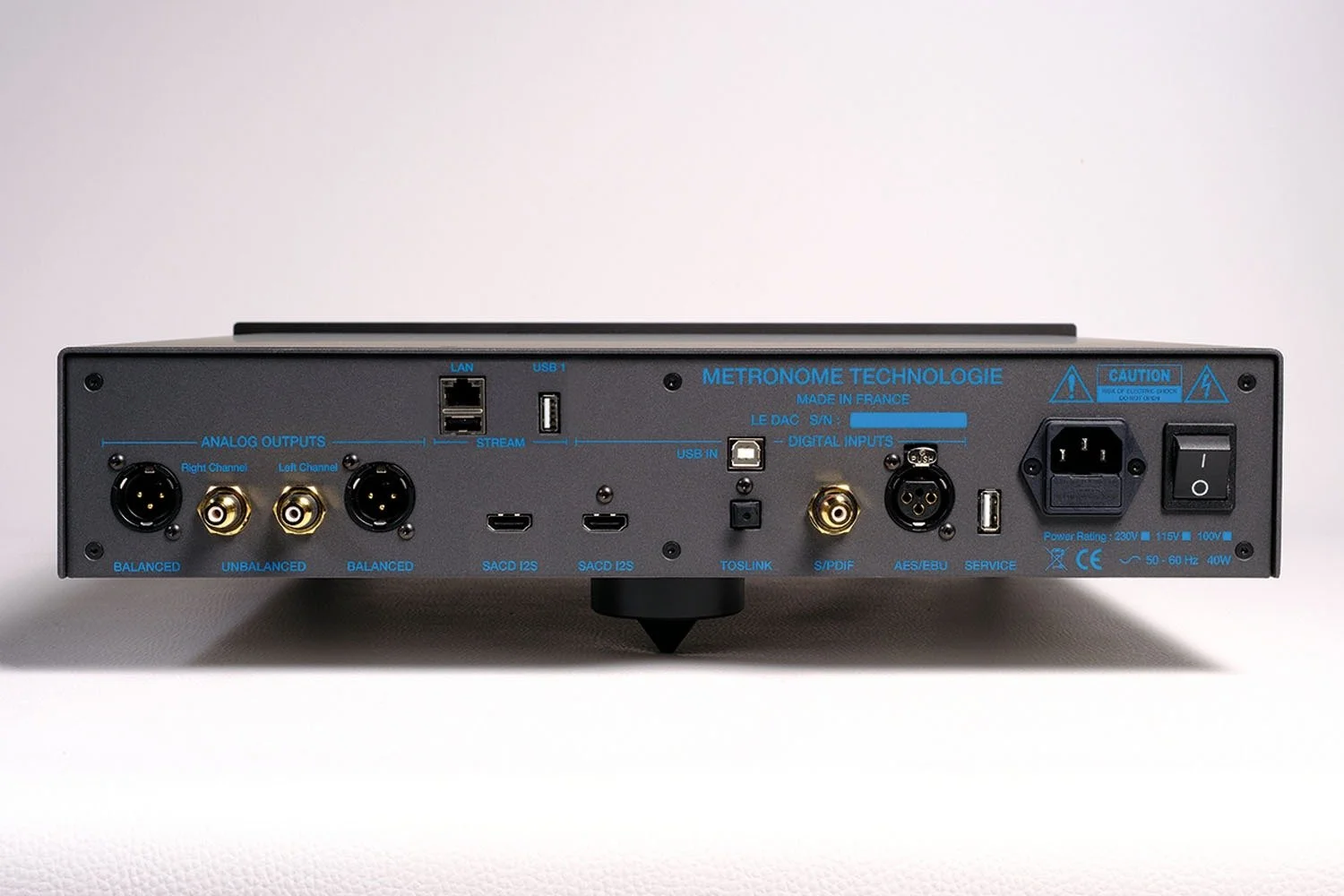

ANALOG OUTPUTS
RCA
Output impedance: 100 Ohms
Max. output level (0dB): 3V
XLR
Output impedance: 150 Ohms
Max. output level (0dB): 3V
DISPLAY
Size: 3.9 inches
Resolution: 480 x 128
DIGITAL INPUTS
I2S
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD256 Native
S/P DIF
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
AES/EBU
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
Toslink
PCM: 44.1 to 192 kHz / 32 bits
DSD: DSD64 DoP
USB
PCM: 44.1 to 768 kHz / 32 bits
DSD: DSD64 to DSD1024 Native
GENERAL SPECIFICATIONS
Power consumption
24 Watts
Standby power consumption
18 Watts
Operating temperature
+5°C to +35°C
Operating humidity
5% to 90%
USB
1 x Port USB 2.0 (for device update)
Dimensions (L x H x W)
450 x 120 x 420 mm
Weight
12 kg
STREAMING (if option)
Format
PCM : 44.1 à 384 kHz / 32 bits
DSD : DSD64 à DSD256 Native
Ethernet
1 x Port Ethernet 10 / 100 / 1000
USB
2 x Port USB 2.0 (for external storage)
MQA
Renderer MQA 44.1 to 384 kHz / 32 bits
Supports of protocole
DLNA/UPnP, Audirvāna, Spotify Connect
Deezer, TIDAL Connect, Qobuz Connect, vTunner
-
