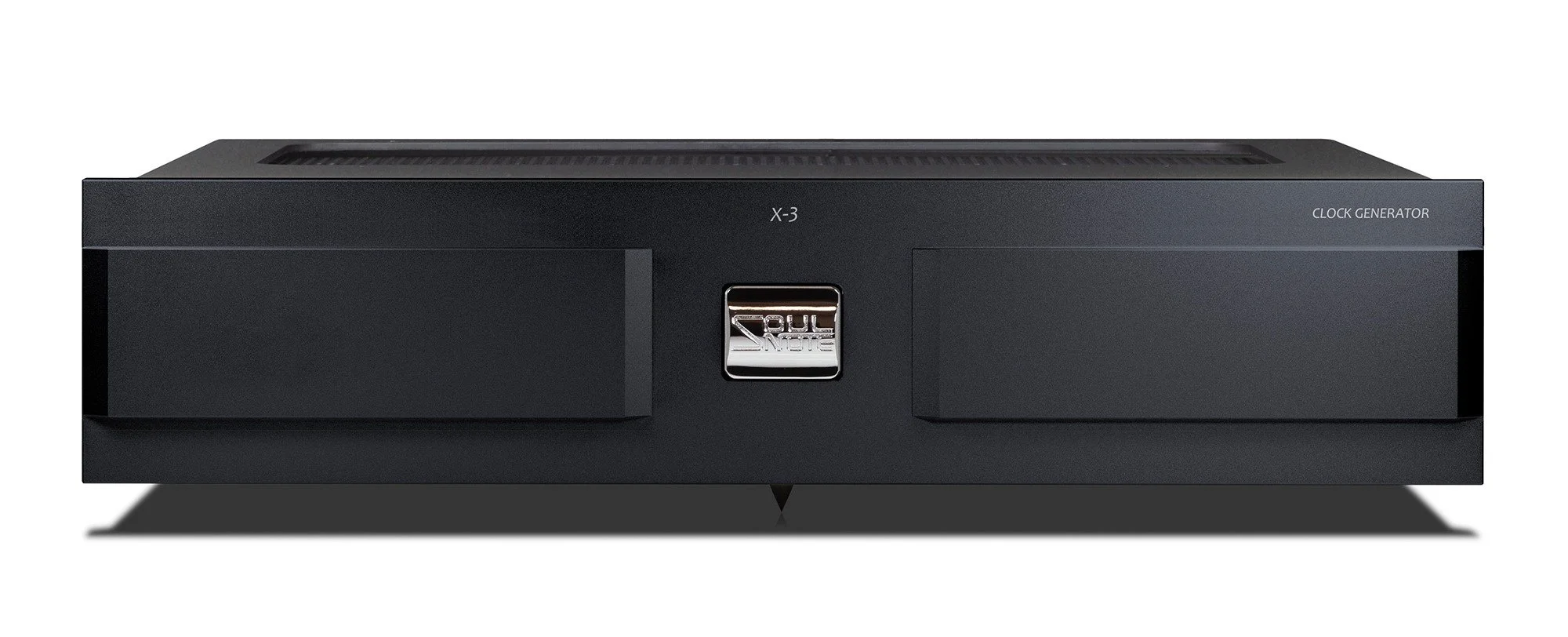

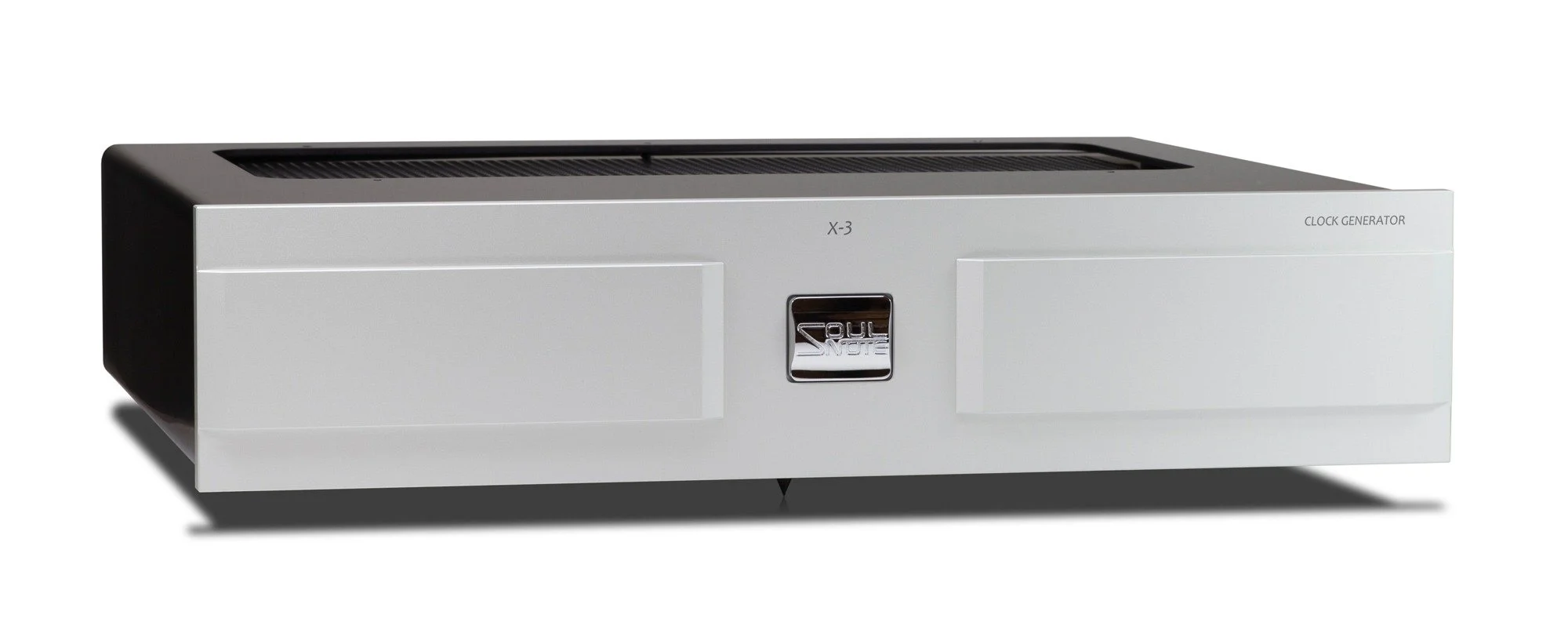

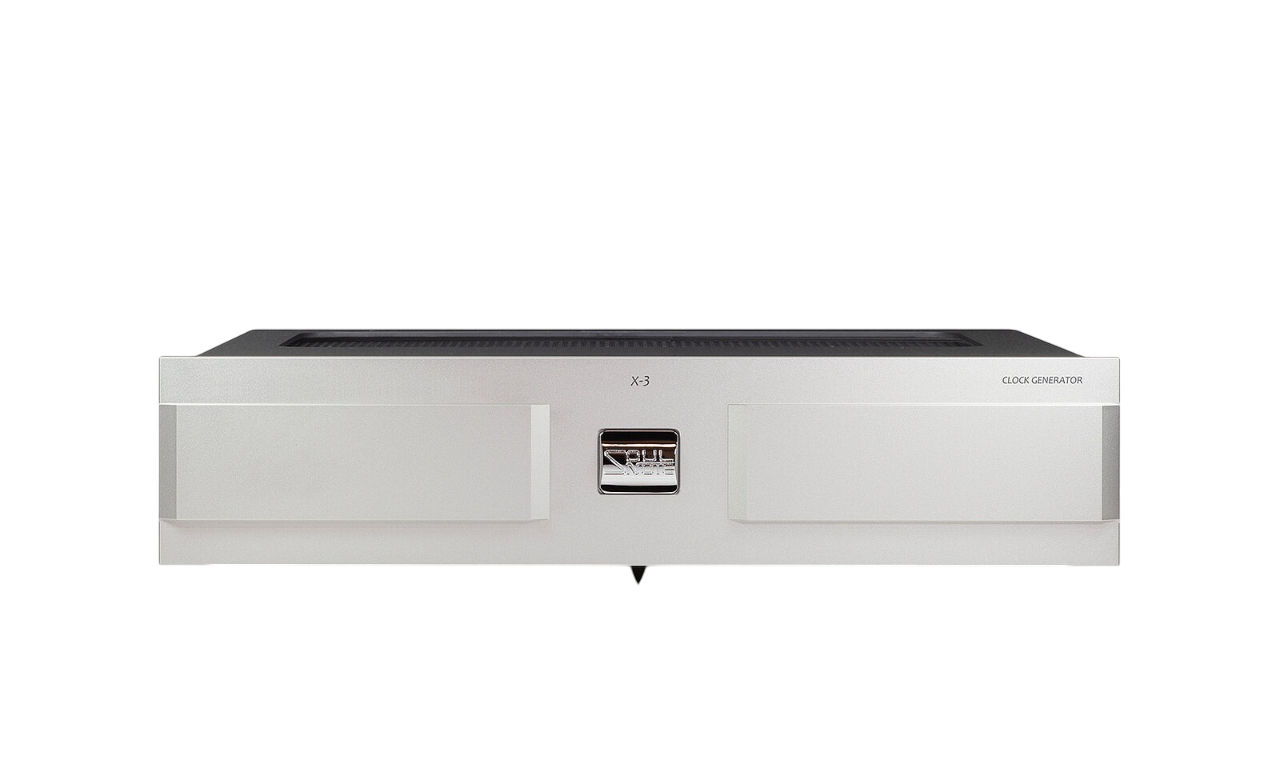

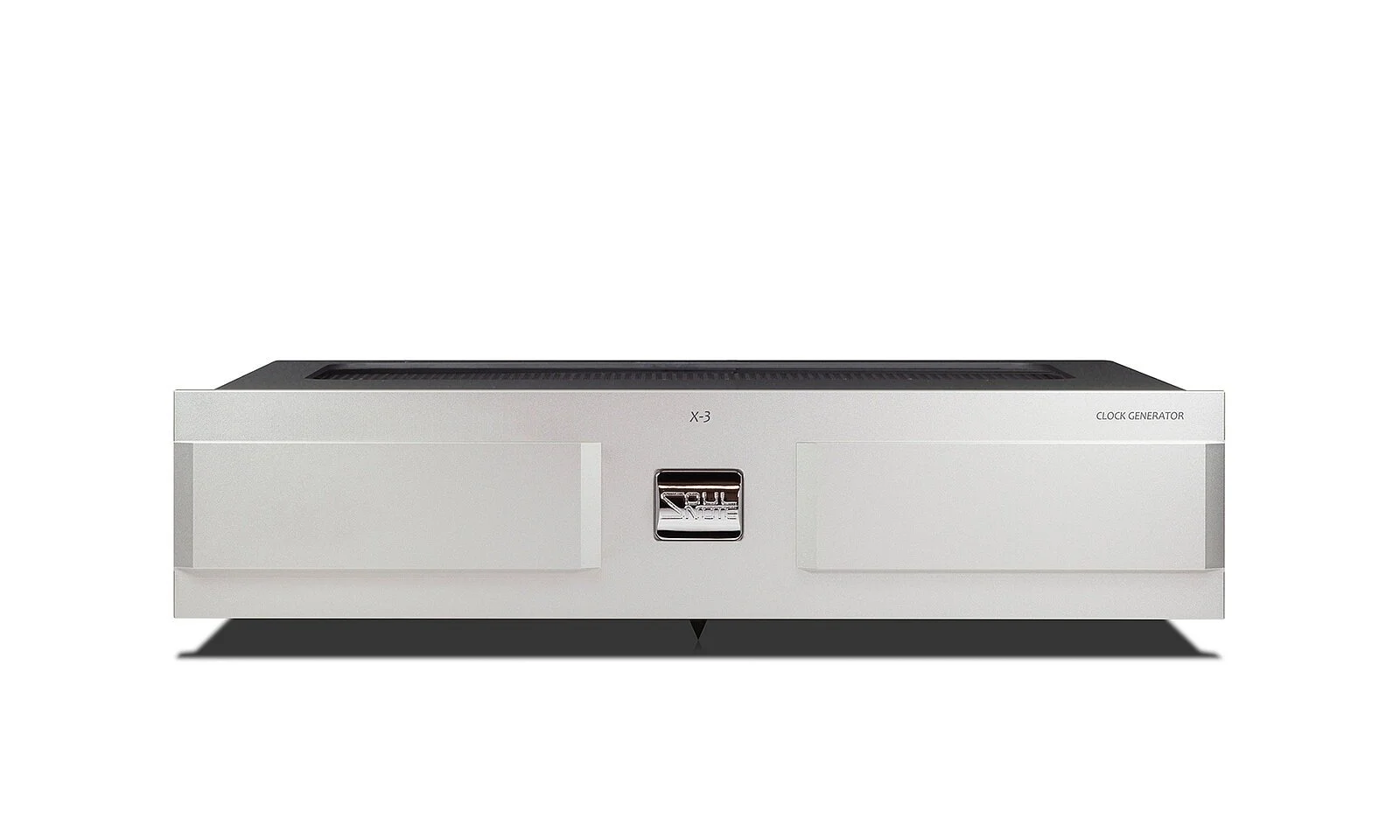

Soulnote X-3 Clock Generator
CLOCK GENERATOR – available in Premium Silver/Premium Black.
Born out of discovery of World-first designing principle. It's an incredible breakthrough in designing Clock generator.
CLOCK GENERATOR – available in Premium Silver/Premium Black.
Born out of discovery of World-first designing principle. It's an incredible breakthrough in designing Clock generator.
CLOCK GENERATOR – available in Premium Silver/Premium Black.
Born out of discovery of World-first designing principle. It's an incredible breakthrough in designing Clock generator.
SC Cut ultra low phase noise OCXO
The X-3 incorporates an SC Cut ultra low phase noise OXCO (thermostatic bath-type crystal oscillator) selected for its unprecedented sound quality.

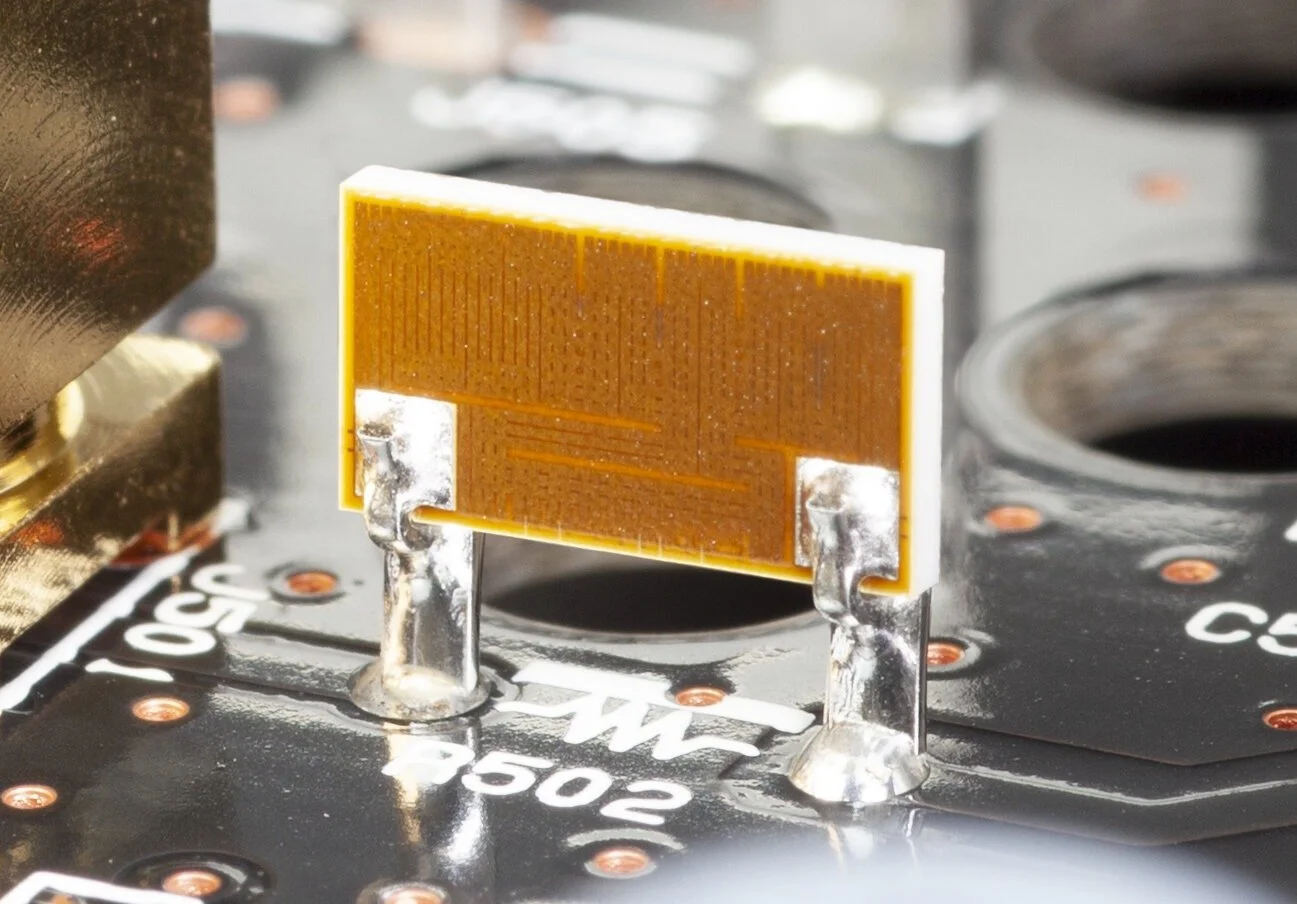

Naked foil resistors
As they greatly impact clock sound quality, the output resistors employ naked foil resistors adapted from artificial satellite grade ultra-high precision resistors, with exceptional thermal properties and low thermal noise, and then further customized. We believe that at this stage, this is where extraordinary resistors are most effective.

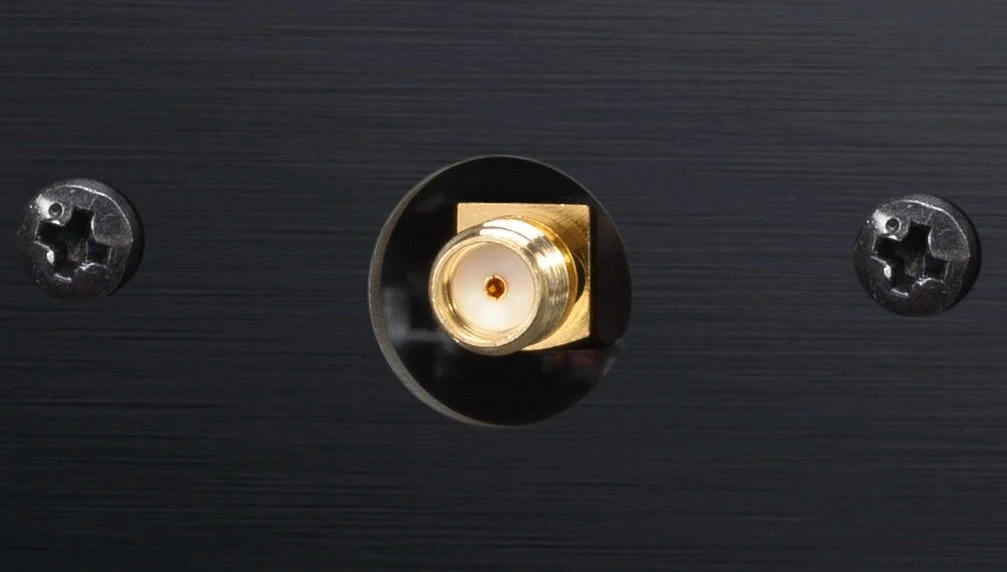

SMA output terminal
The output clock signal originates from an SMA terminal with specs above 20 GHz. Only one output is provided for the ultimate in sound quality. The X-3 is supplied with an SMA–SMA 50ohm dedicated clock cable, but we highly recommend using the optional RCC-1 clock cable. Relive music that unleashes the ambiences of the soul.

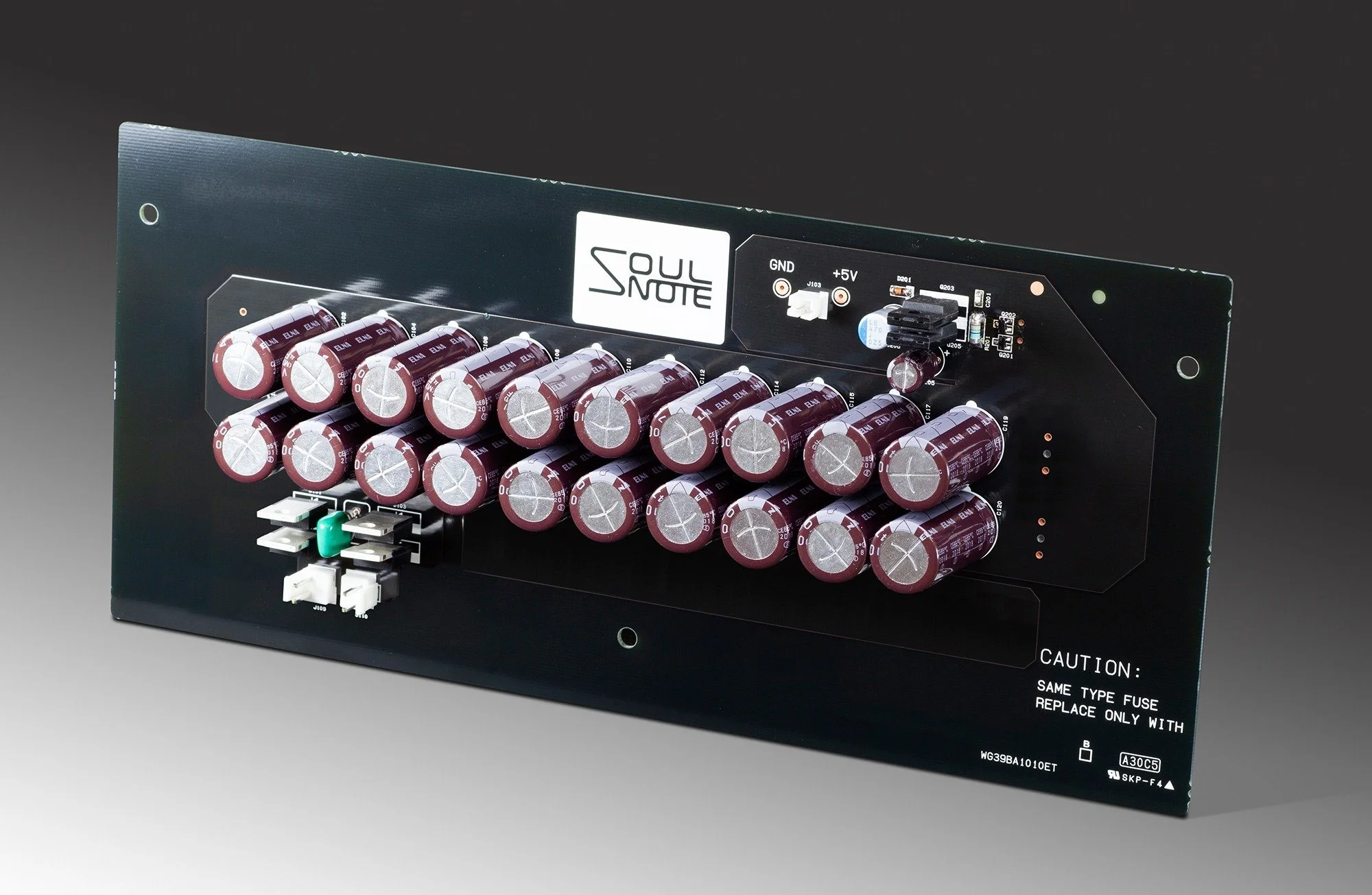

non-NFB power supply
A high-capacity 200 VA toroidal transformer normally used in 100 W power amps provides an abundant power supply to drive the crystal oscillator. The rectifier diode relies on newly adopted ultra high-speed SiC diodes. The rectifier group is composed of numerous low-magnification, small-capacity electrolytic condensers connected in parallel, while the regulator incorporates SOULNOTE’s unique non-NFB discrete power supply.
Quiet power supply domain
All unnecessary circuits like power supply LEDs, relays, etc. have been stripped from the crystal oscillator to provide a super-quiet power supply domain.
Housing prioritizing sound quality
The X-3 housing adopts unique new design. The housing consolidates features like air dump elimination through a dual non-rigid top plate, non-rigid AC inlets, non-rigid output terminals, three spike supports directly under the transformers, titanium washers, carbon washers, and more. Our core expertise has developed sound of the highest quality.
-

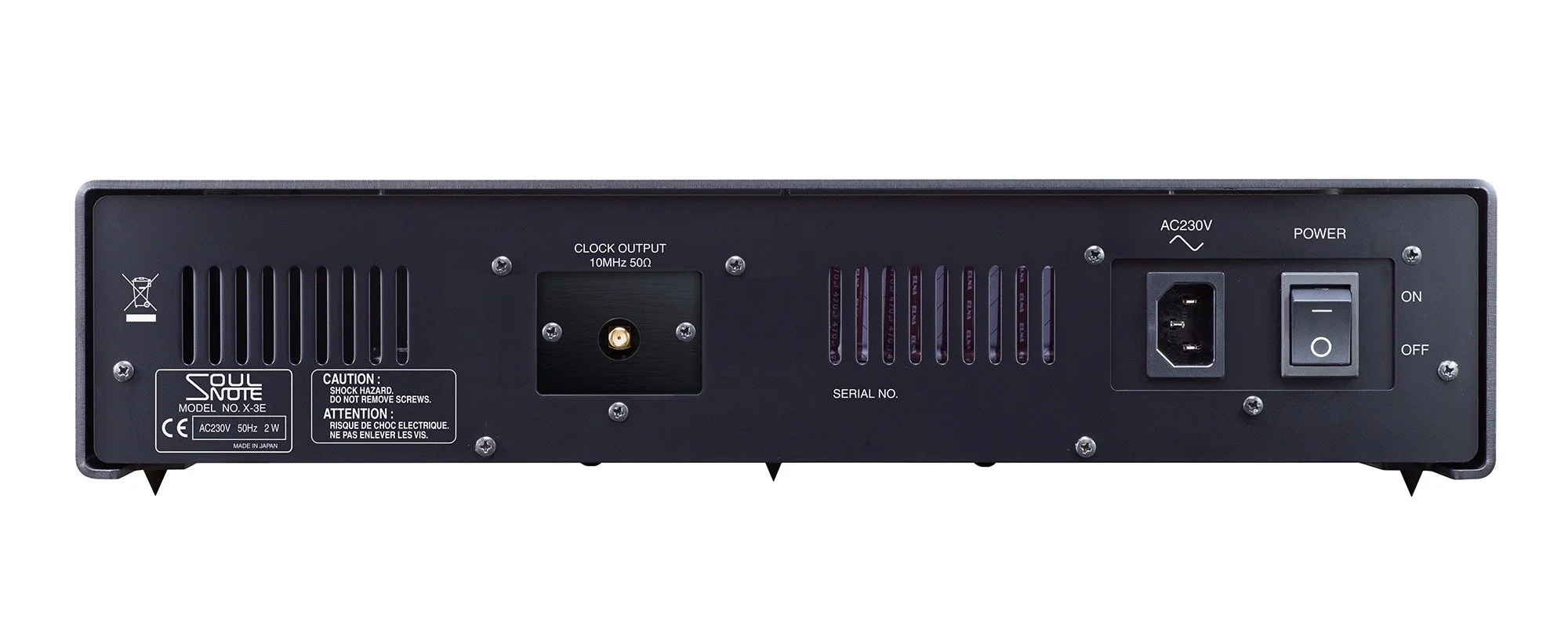

Output: SMA x 1
Output frequency: 10MHz
Output impedance: 50 ohms
Output level: 1,0Vp-p
Power voltage: 230V AC 50Hz
Power consumption: 2W
Maximum external dimensions: Main unit: 430(W) × 111(H) × 376(D)mm
Weight: 7.5kg

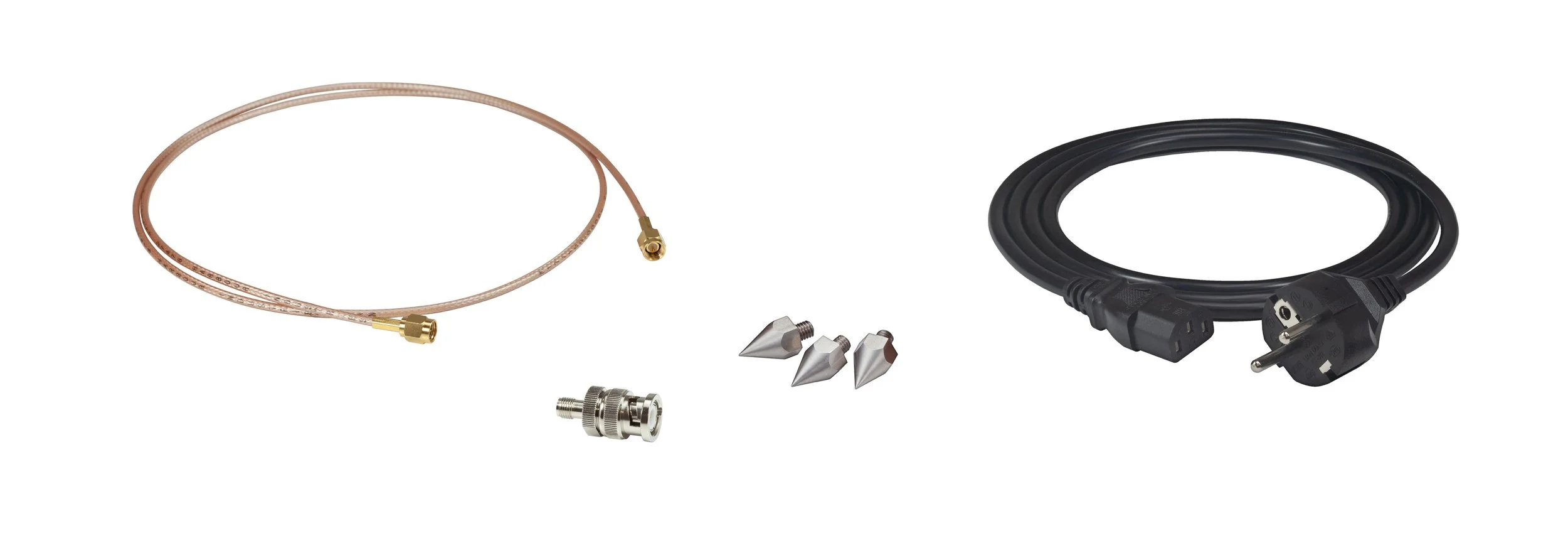

Included accessories: SMA–SMA dedicated clock cable, SMA–BNC converter plug, spikes, power cable
-
