The Ultimate Expression of Precision
Preciso is Volumio’s ultimate expression of what a DAC can and should be. It is the result of obsessive engineering, relentless refinement, and a singular goal: to deliver the purest, most precise audio signal without breaking the bank. Preciso is the ultimate expression of everything we've learned at Volumio in crafting award-winning digital audio players.
Why Preciso?

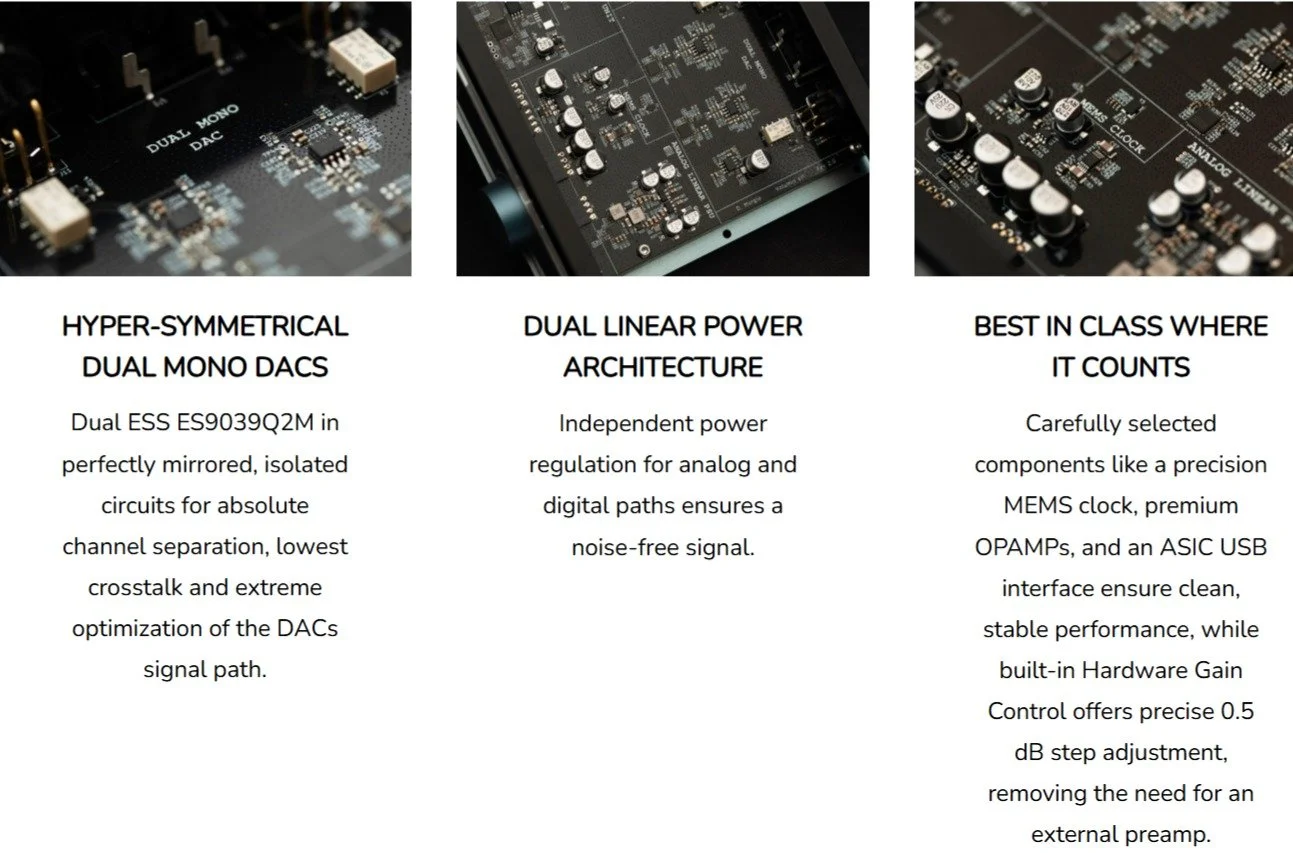

Named after the Italian word for precise, Preciso lives up to its name through uncompromising engineering and sonic accuracy. It features dual SABRE ESS ES9039Q2M DACs in a true dual mono design, eliminating crosstalk for a wider, deeper, and more natural soundstage. Its hyper-symmetrical architecture ensures precise channel isolation and lifelike imaging, while a THD+n of -122.5 dB reaches the limits of modern audio test equipment for truly transparent sound. Enhancing its versatility, Preciso also includes an integrated Hardware Gain Control, eliminating the need for an external pre-amplifier when paired with a fixed-gain power amp. This gain control allows fine-tuned signal adjustment from 0.0 dB to -99.0 dB in precise 0.5 dB steps, offering both convenience and high-fidelity performance in a single, streamlined solution.
High-Precision DAC Architecture with Rivo+ Compatibility
Preciso features a dual internal linear power supply, with separate regulation for the analog and digital sub-system. This complete isolation reduces interference, lowers the noise floor, and enhances dynamic range.

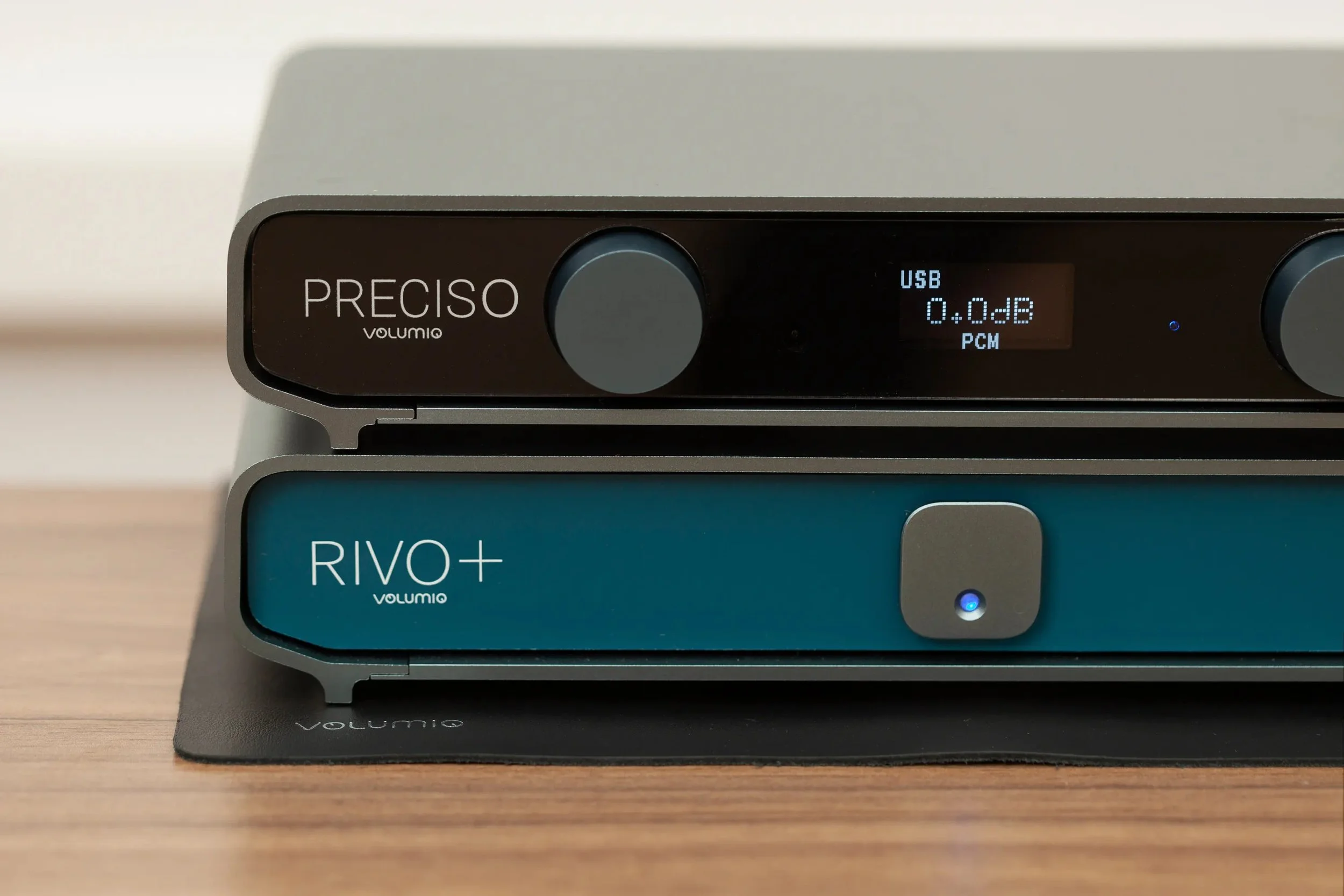

When paired with RIVO+ , Rivo or any dedicated transport, Preciso becomes part of a fully optimized digital chain. Preciso uses the same dedicated USB ASIC found inside RIVO+. This ensures pristine data transfer, precise clocking, and optimal analog performance. Preciso can be also used as a Pre-Amp with hardware gain control for direct integration with power amplifiers.
Digital That Delivers
Preciso combines a dedicated ASIC USB controller for bit-perfect, ultra-low jitter transfer with the highest-grade operational amplifiers for exceptional analog performance.
Outstanding Performance Indicators

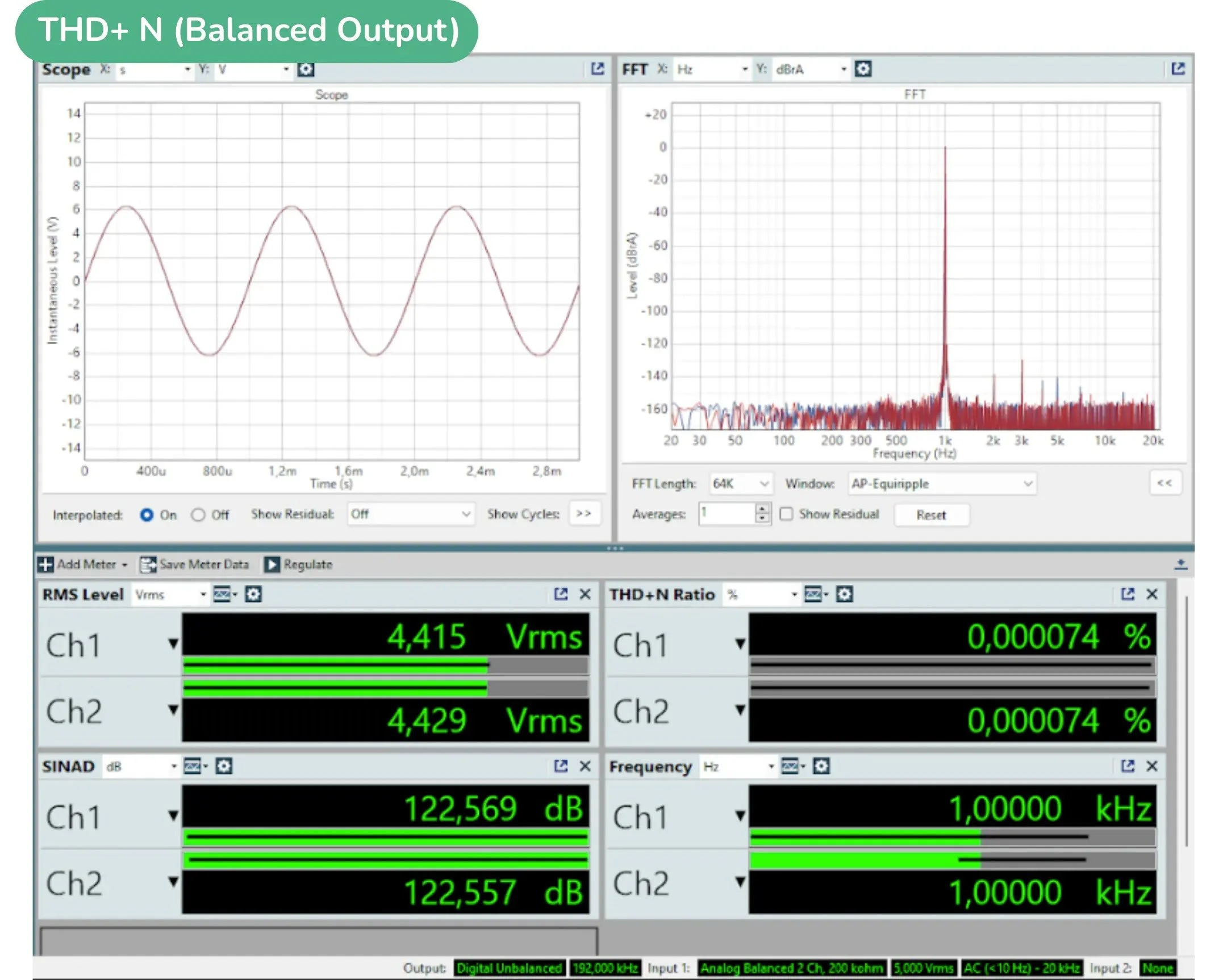

With a THD+N of -122.5 dB, Preciso operates at the measurement threshold of today's most sensitive audio test equipment, delivering exceptionally clean and accurate sound reproduction.
Precision Clocking And Summetrical Design
Preciso’s precision starts with a single high-accuracy MEMS clock driving both DACs for impeccable timing and coherence. Its hyper-symmetrical design features perfectly matched circuit paths for each channel, with carefully selected SMD components chosen not only for compactness but also for superior electrical performance, and C0G capacitors that ensure stable, distortion-free performance over time and varying temperatures.
-
Audio
Digital USB Input: Up to PCM 768kHz/32bit and DSD512
Digital S/PDIF Optical Input: Up to PCM 192kHz/24bit
Digital S/PDIF Coaxial Input: Up to PCM 192kHz/24bit
Digital I2S over HDMI Input: Up to PCM 768kHz/32bit and DSD512
Stereo Analog Balanced Output: Up to 4 Vrms
Stereo Analog Unbalanced Output: Up to 2 Vrms
Hardware
Input Power: 5V DC / 2A
Input Power Connector: Barrel Jack 5.5mm (outer diameter) / 2.1mm (inner diameter)
Input Power Polarity: Positive
Trigger In Port: 3.5mm jack, positive on tip
Trigger Out Port: 3.5mm jack, positive on tip

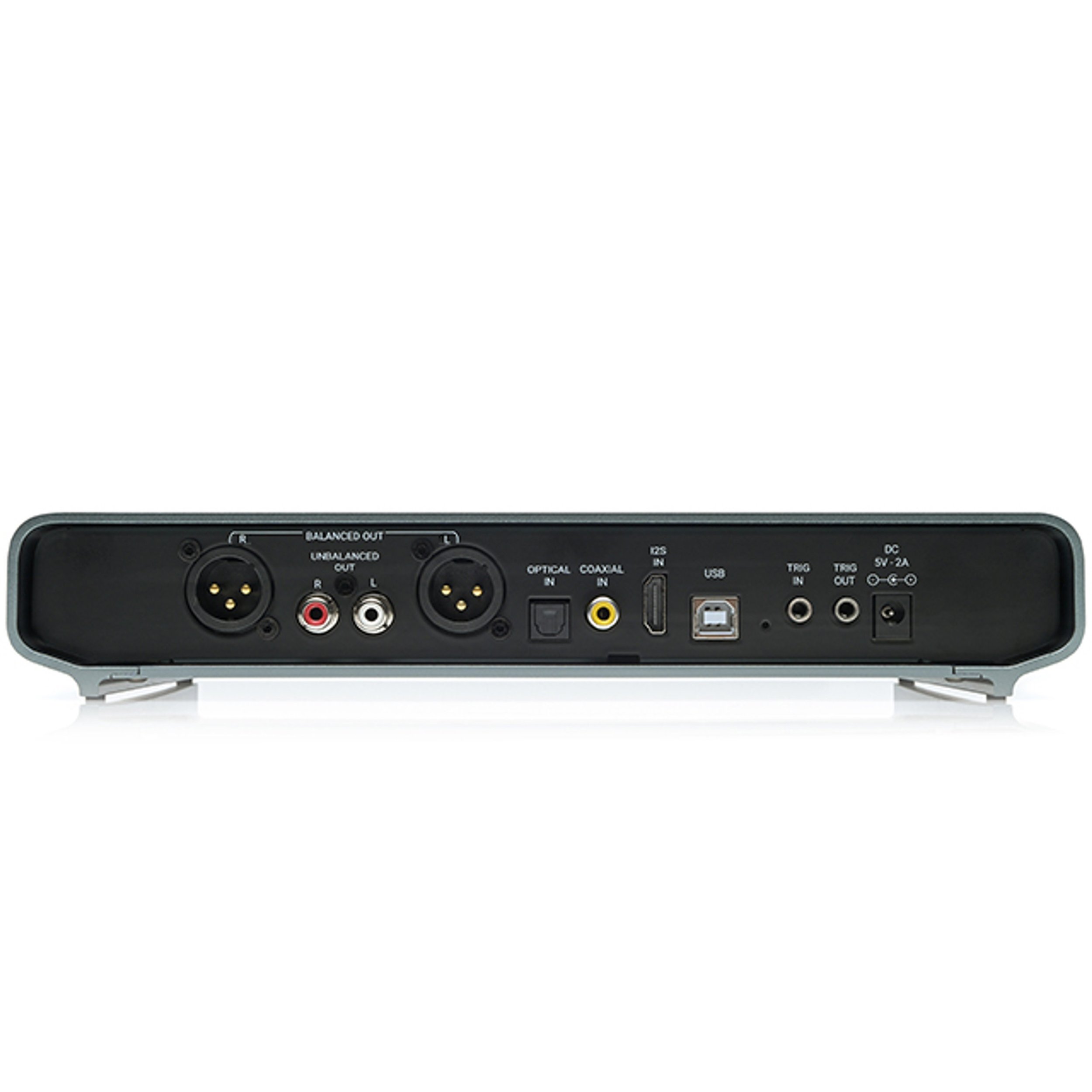

USB Input: USB 2.0 Type-B connector
S/PDIF Coaxial Input: RCA connector
S/PDIF Optical Input: TOSLINK connector
Stereo Unbalanced Output: RCA connectors
Stereo Balanced Output: XLR connectors
Design
Designer: Design Narratives Ltd.
Weight: 2.25 kg
Dimensions: 27x15x5 cm
-
