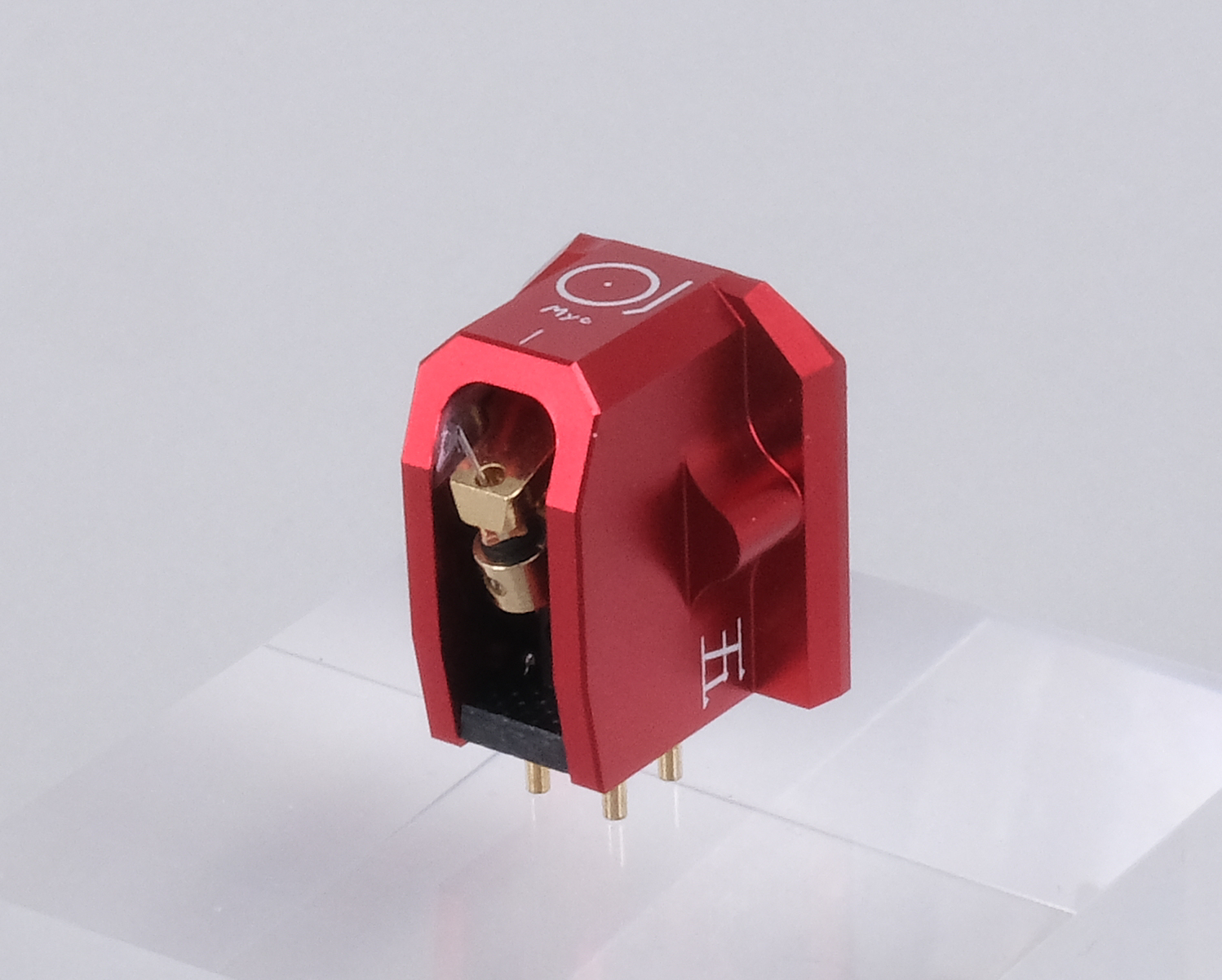

Takumi Myo MC Phono Cartridge
The Myo stands at the top of the Takumi range.
Its sapphire cantilever combines high rigidity with controlled damping, while the nude fine-elliptical diamond and 6N OCC generator reach beyond 28 kHz with superb channel symmetry.
Every part is tuned for balance, silence, and effortless retrieval of musical detail.
The Myo stands at the top of the Takumi range.
Its sapphire cantilever combines high rigidity with controlled damping, while the nude fine-elliptical diamond and 6N OCC generator reach beyond 28 kHz with superb channel symmetry.
Every part is tuned for balance, silence, and effortless retrieval of musical detail.
Behaviour & character
The Myo’s sapphire structure brings exceptional tonal purity and micro-resolution.
It traces inner-groove information with microscopic precision, maintaining coherence even in complex passages.
The tonal balance is neutral yet luminous: bass is firm and deep, midrange textures are pure and layered, and treble extends effortlessly with no trace of hardness.
The result is a sense of quiet authority and spatial depth — the natural conclusion of the Takumi design philosophy.
-
Cantilever: Sapphire
Stylus: Nude Fine Elliptical, r/R = 5/15 µm
VTA: 20°
Coil: Square 6N OCC
Weight: 9 g
Output: 0.28 mV
Impedance: 4.7 Ω
Output Balance @1 kHz: < 0.3 dB
Channel Separation @1 kHz: > 28 dB
Frequency Response: 15 – 28 kHz
Tracking Ability @315 Hz: 70 µm
Dynamic Compliance: 16 µm/mN
Recommended Load: 100 – 330 Ω
Tracking Force: 1.3 – 2.0 g (1.8 g recommended)
Tonearm Mass: Medium
Temperature: 23 °C
Break-in: 30 h
