Mudra Akustik PX Filter

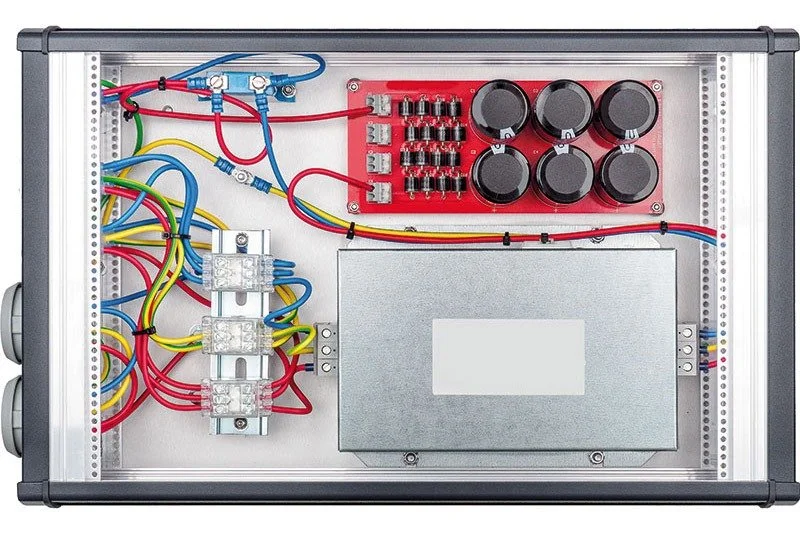

From the concept idea of one of two starting devices to build a complete filter system:

 3-stage, very high broadband damping

• High insertion loss, independent of the respective network impedance

• Dielectric strength

  • 1,7 kVDC between L-N

  • 2,7 kVDC between L/N – P

• manufactured according to military specifications for min. 200.000 working hours

• very high current capability of 30 A

• Option: DC FILTER

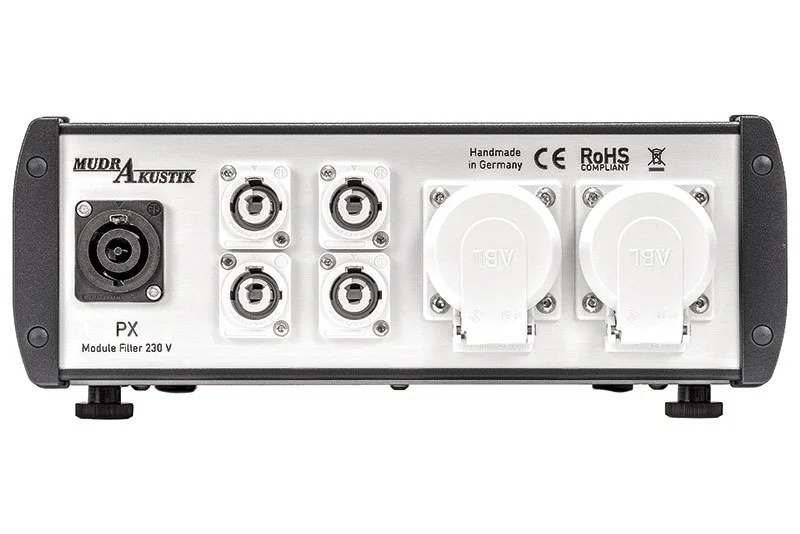

PX FILTER is equipped with 6 outputs. There you can connect

• 6 devices to be filtered or

• 6 PX transformer modules

• or a combination of both

PX FILTER SCHUKO is equipped with 8 SCHUKO outputs. There you can connect

• 8 devices to be filtered or

• 8 PX transformer modules

• or a combination of both
