Kuzma Stabi M Turntable

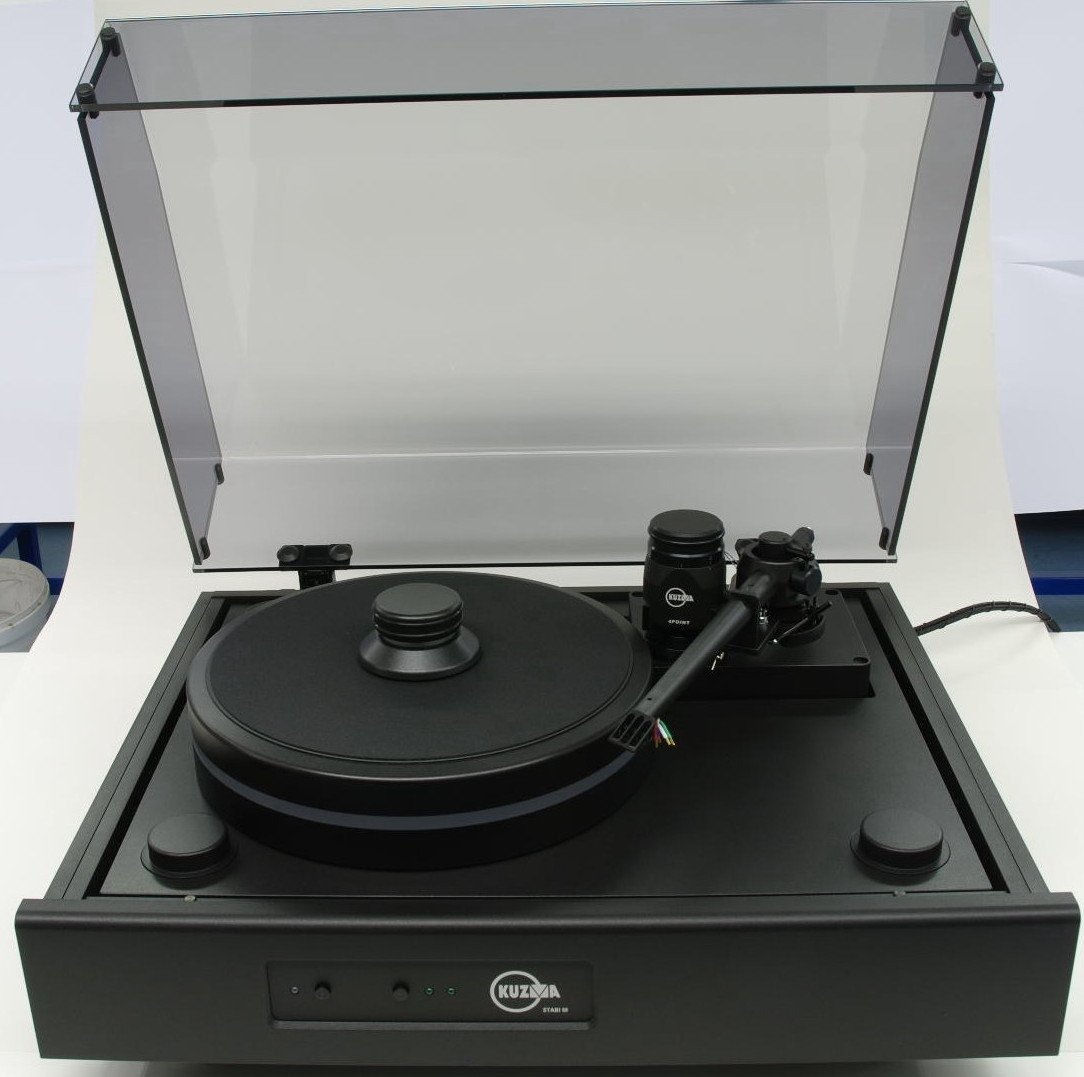

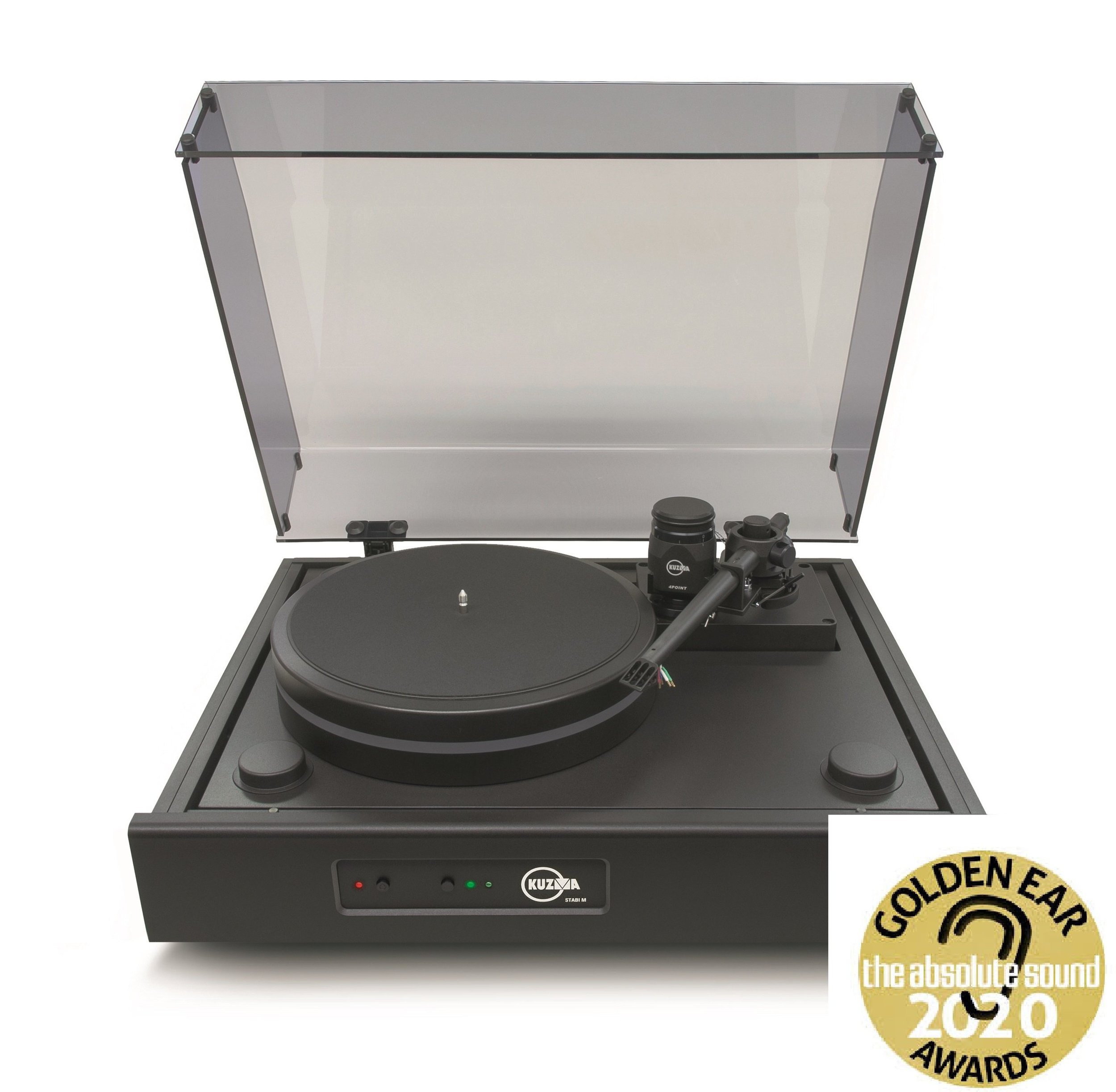

This is a modern turntable, designed in a classic style with an emphasis on delivering the best possible record playback.
Its large size allows even 12-inch tonearms to be mounted and fully covered by a massive acrylic dust cover on spring-loaded hinges. The dust cover is designed to resist vibrations, even from loud music.
This is a modern turntable, designed in a classic style with an emphasis on delivering the best possible record playback.
Its large size allows even 12-inch tonearms to be mounted and fully covered by a massive acrylic dust cover on spring-loaded hinges. The dust cover is designed to resist vibrations, even from loud music.
This is a modern turntable, designed in a classic style with an emphasis on delivering the best possible record playback.
Its large size allows even 12-inch tonearms to be mounted and fully covered by a massive acrylic dust cover on spring-loaded hinges. The dust cover is designed to resist vibrations, even from loud music.
The turntable is assembled from various solid aluminum components, resulting in a rigid construction that effectively absorbs vibrations. Solid aluminum plates are mounted on the outer sides of the main structure, adding mass and further increasing structural rigidity and damping.

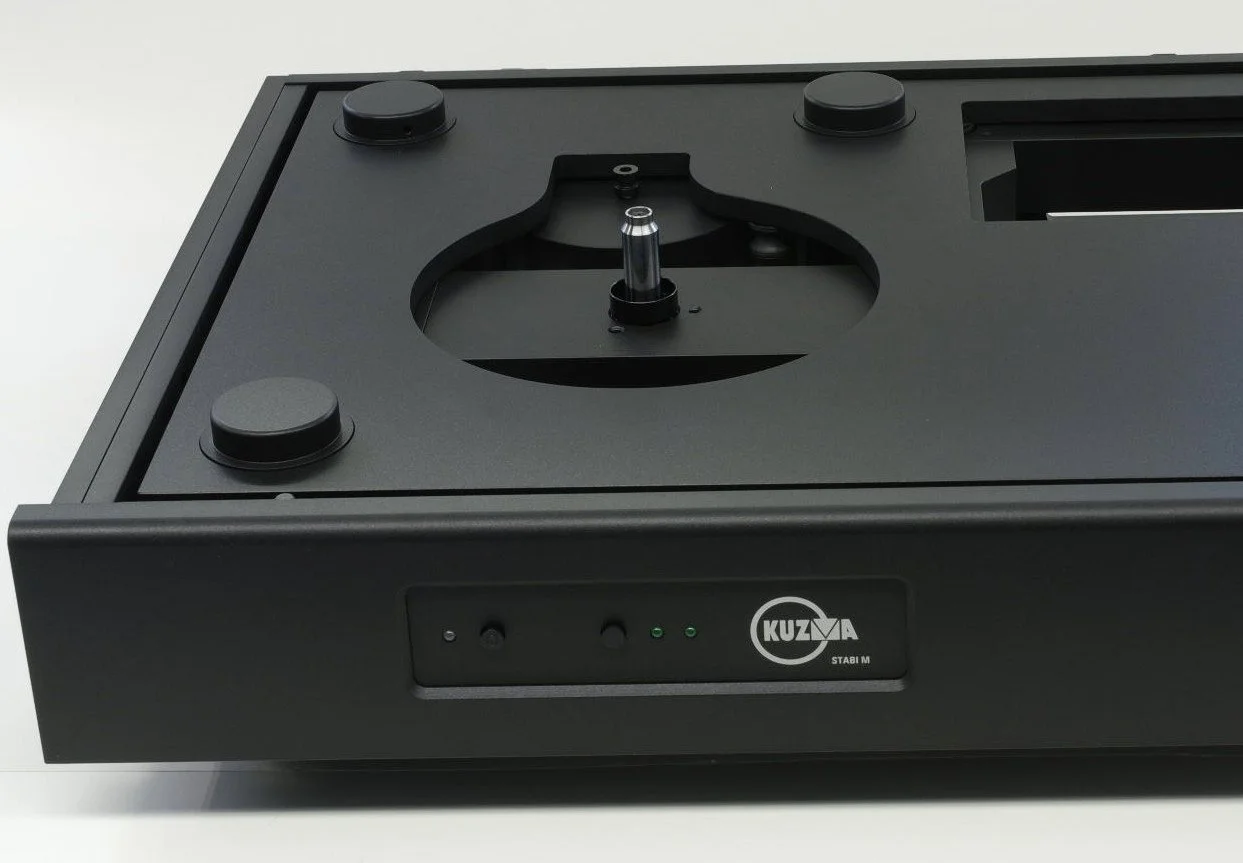

Covered spikes within the legs allow for precise horizontal leveling of the entire turntable. The top aluminum plate beneath the platter supports an elastically suspended main frame and motor system, which are isolated from the outer turntable structure by four large elastic dampers. This design also allows fine horizontal leveling of the platter and tonearm.

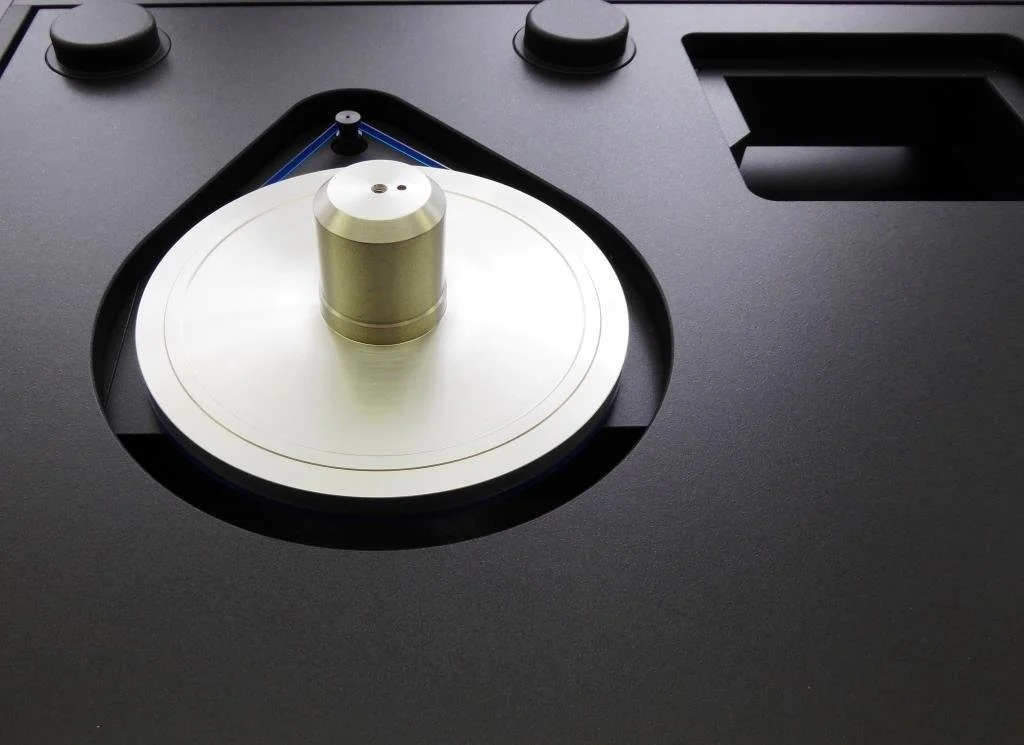

The platter consists of two 30 mm-thick aluminum plates with an acrylic damping layer sandwiched between them, forming a highly inert support for records. The bearing features an inverted shaft with a ruby ball, ensuring precise, low-noise rotation of the subplatter.

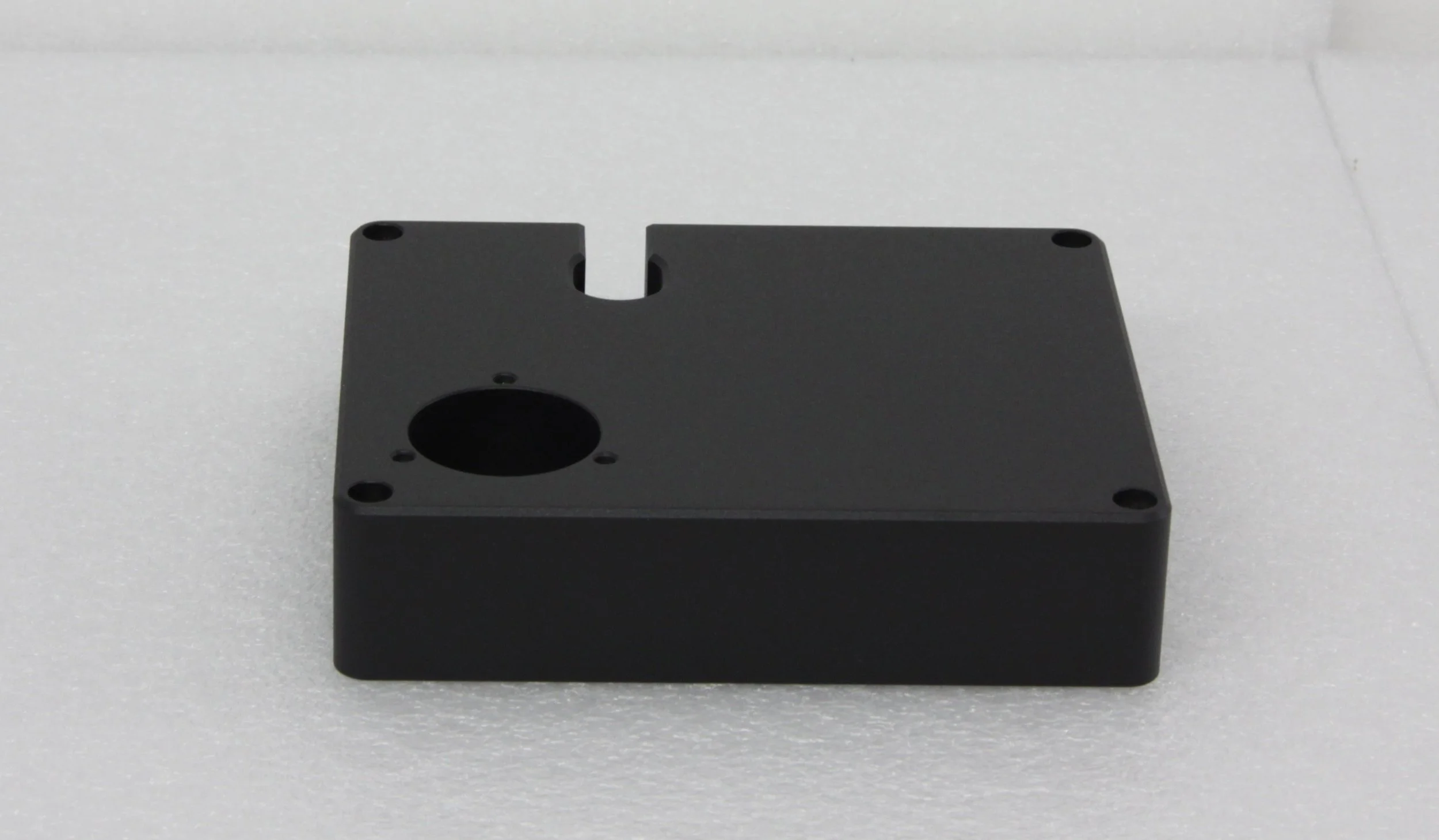

The main frame, which holds the bearing and a massive aluminum armboard, is constructed from solid aluminum blocks bolted together to create a uniquely rigid and well-damped support.

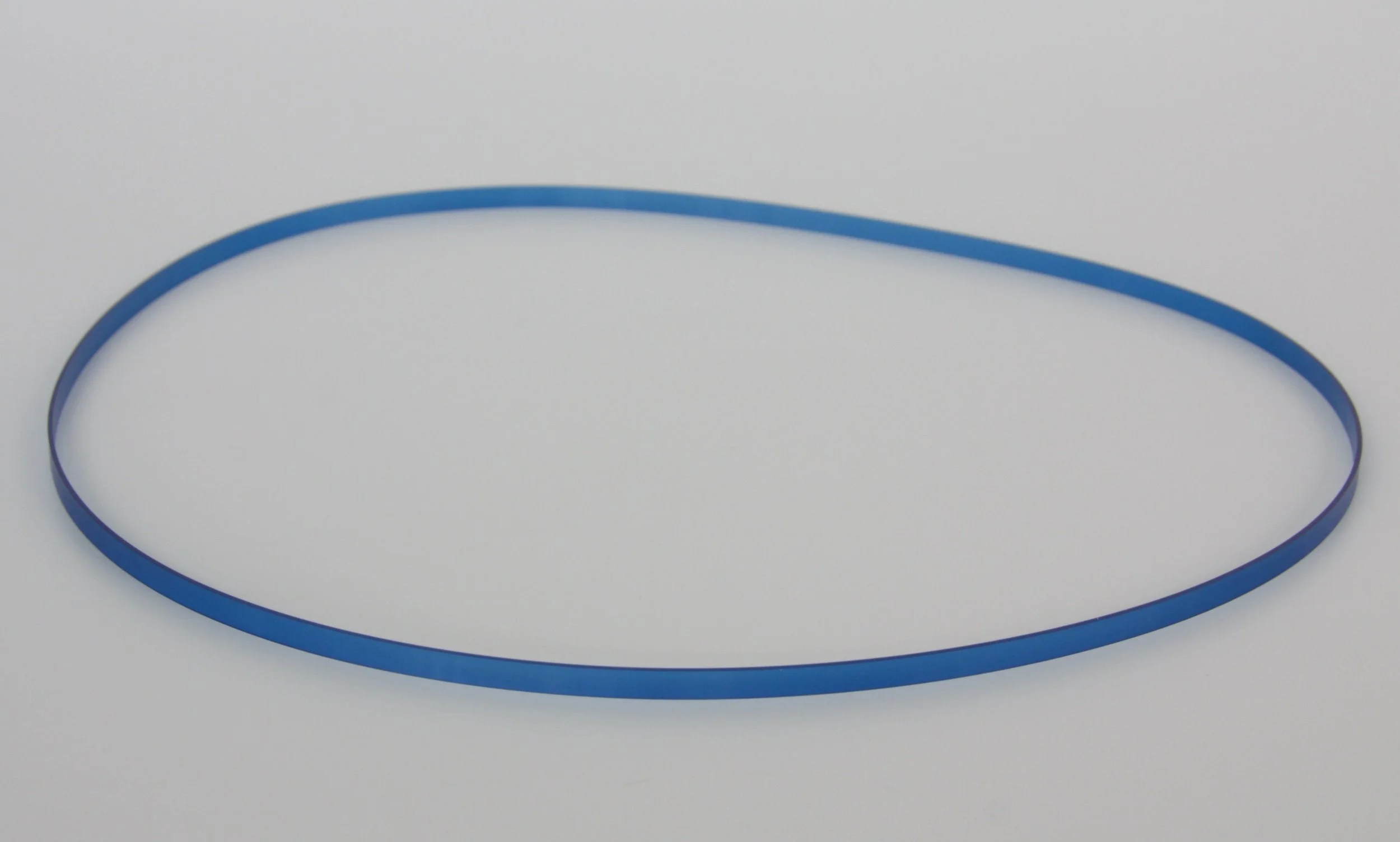

The motor system: The DC motor itself is specially mounted inside a brass cup and aluminium plate. This motor assembly is encapsulated and suspended inside a massive brass motor housing. Thus the main frame is doubly insulated from the motor system and yet still maintains rigidity, allowing for max torque momentum to be transmitted via the stiff plastic belt to the subplatter. This gives the platter a high torque drive with the positive properties of belt and idler drives, while minimising the negatives one.

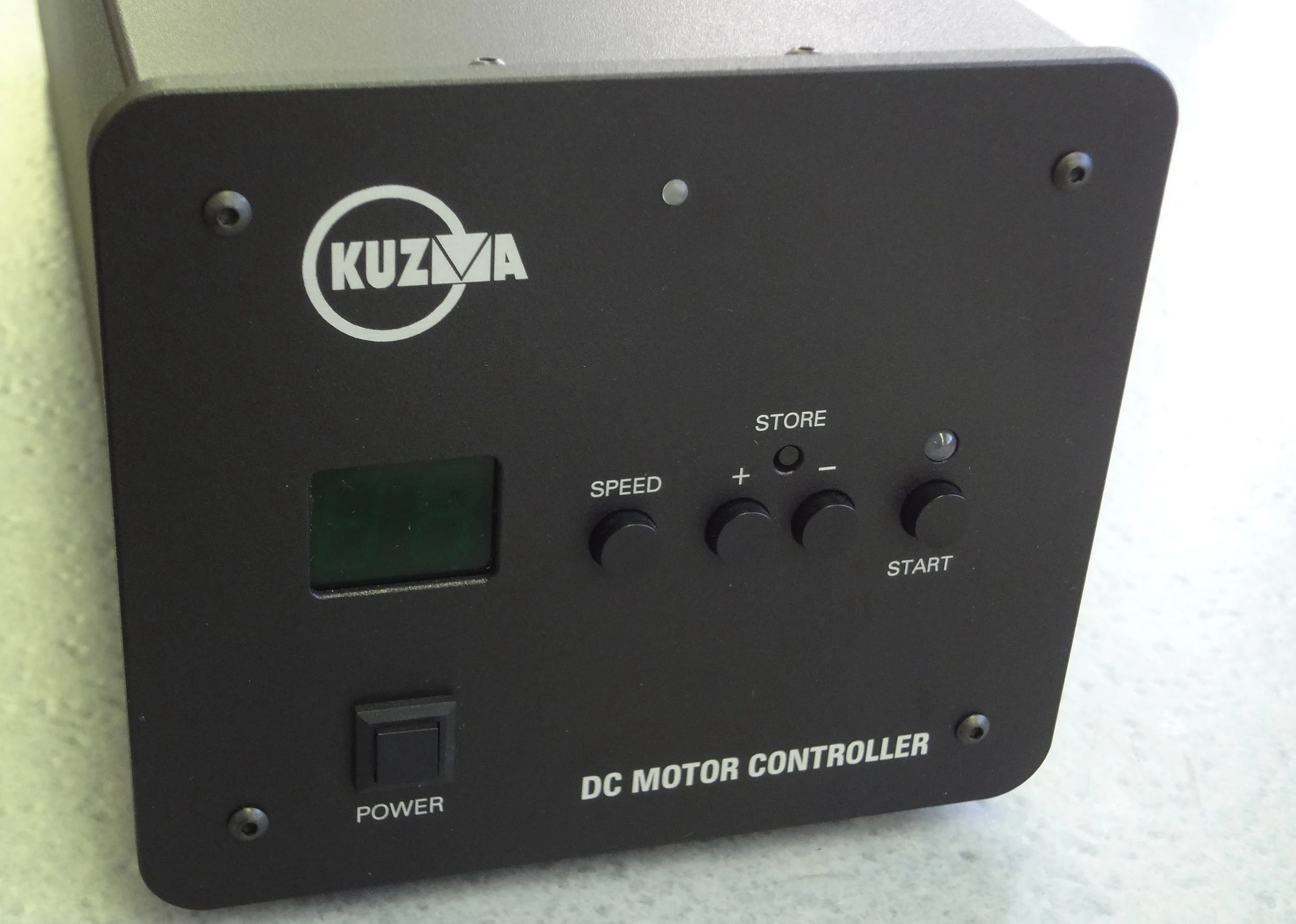

The external power supply controls the DC motor with precise frequency and it has very fine speed adjustments. The control panel on the front plate of the turntable has start/stop and speed change functions. The full speed of platter on 33 rpm is reached in just 2 seconds- in one full rotation of the platter. There is also a remote control start/stop function.
-
Mass: 60 Kg
Platter mass: 12 Kg
Platter material: Aluminium & acrylic
Bearing type: Ruby ball-inverted with resin/textile material
Shaft diameter: 16 mm
Drive: Flat plastic belt
Chassis/Levelling: Aluminium/ Yes
Turntable levelling: Yes
Motors: 1 pc DC ( three phase)
External power supply: Yes
Speeds: 33,45, 78 rpm
Armboard: Yes
VTA adjustment: No
No. of tonearms: 1
Max tonearm’s length:12”
Suspended: Yes
Dimensions: 600x500x280 mm
Finishes: Black
Clamp: Yes
Mat: Yes
Lid: Yes
Accessories: Oil, Allen keys

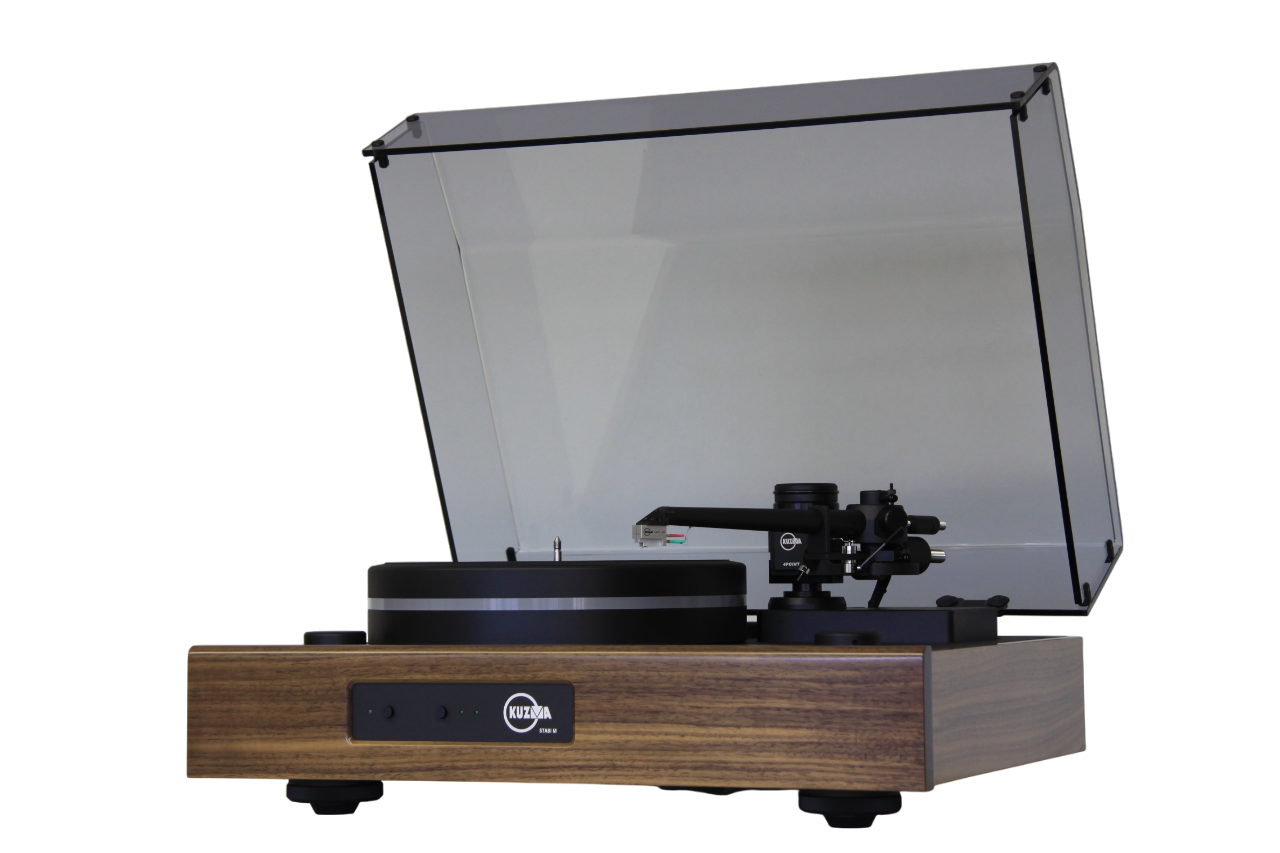

Options: Various armboards, Optional front panel colour, brass, wood
-
