The main platter features a constrained sandwich design consisting of three layers (aluminum – acrylic – aluminum) to minimize vibration and maximize damping—both of the platter itself and of the LP. The ruby ball minimizes friction and noise within the thrust bearing and is supported by a special low-noise compound material.

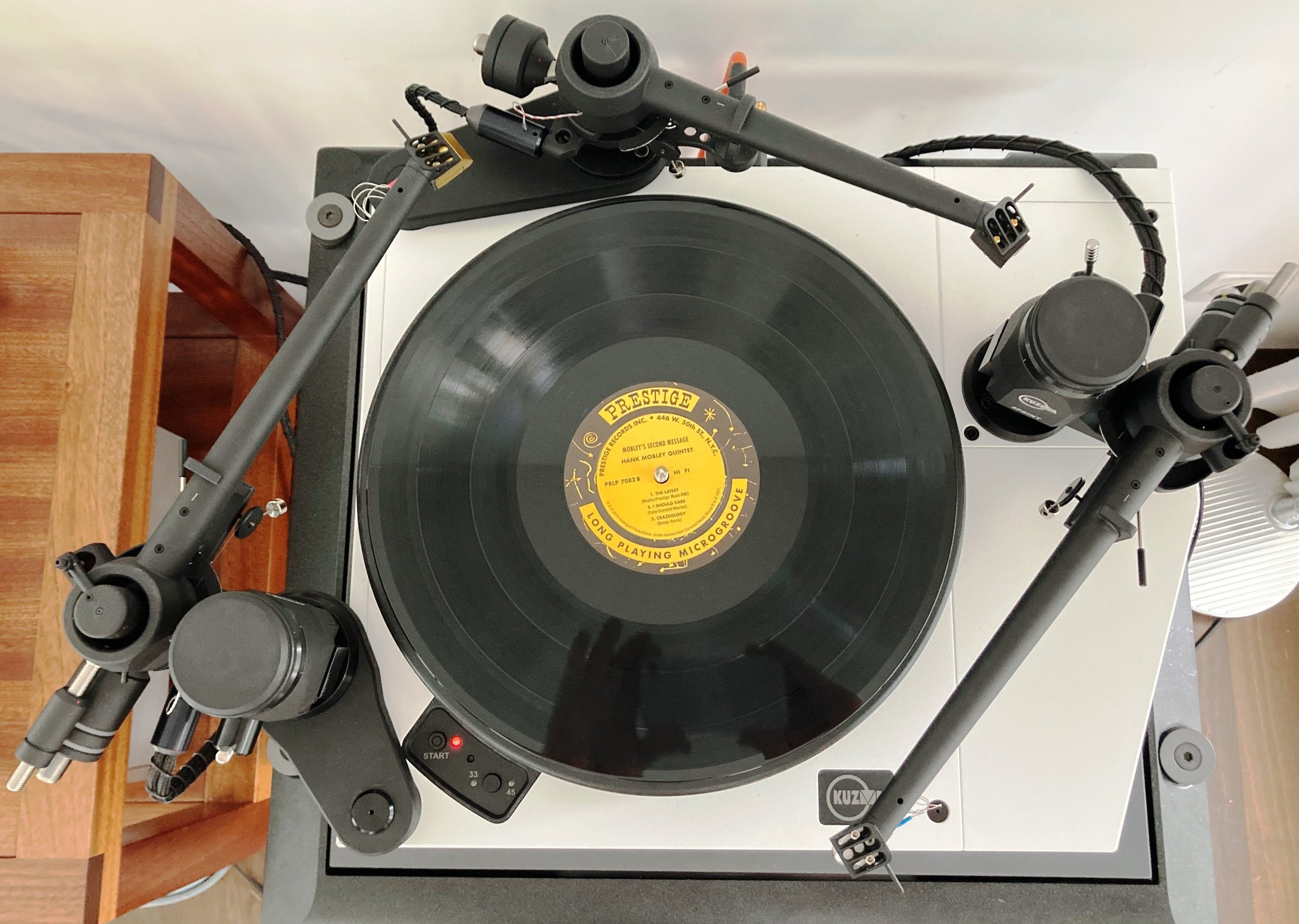

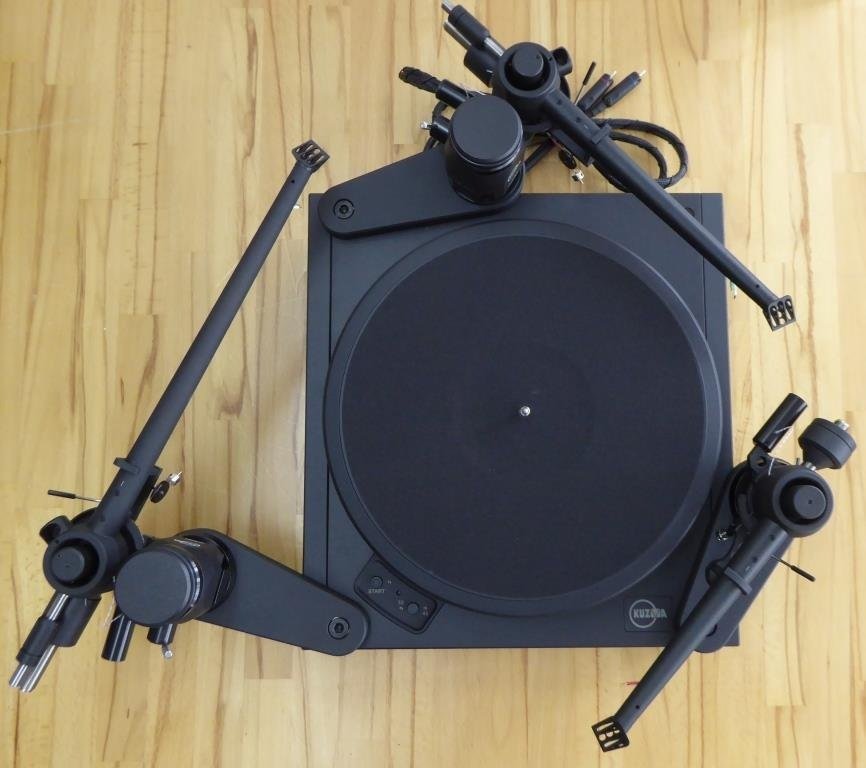

One of the key design features of the new Stabi R is its exceptional versatility and flexibility for multiple tonearm setups. It is possible to install up to four tonearms around the main platter.
In addition, a variety of color options and a wood finish are available.

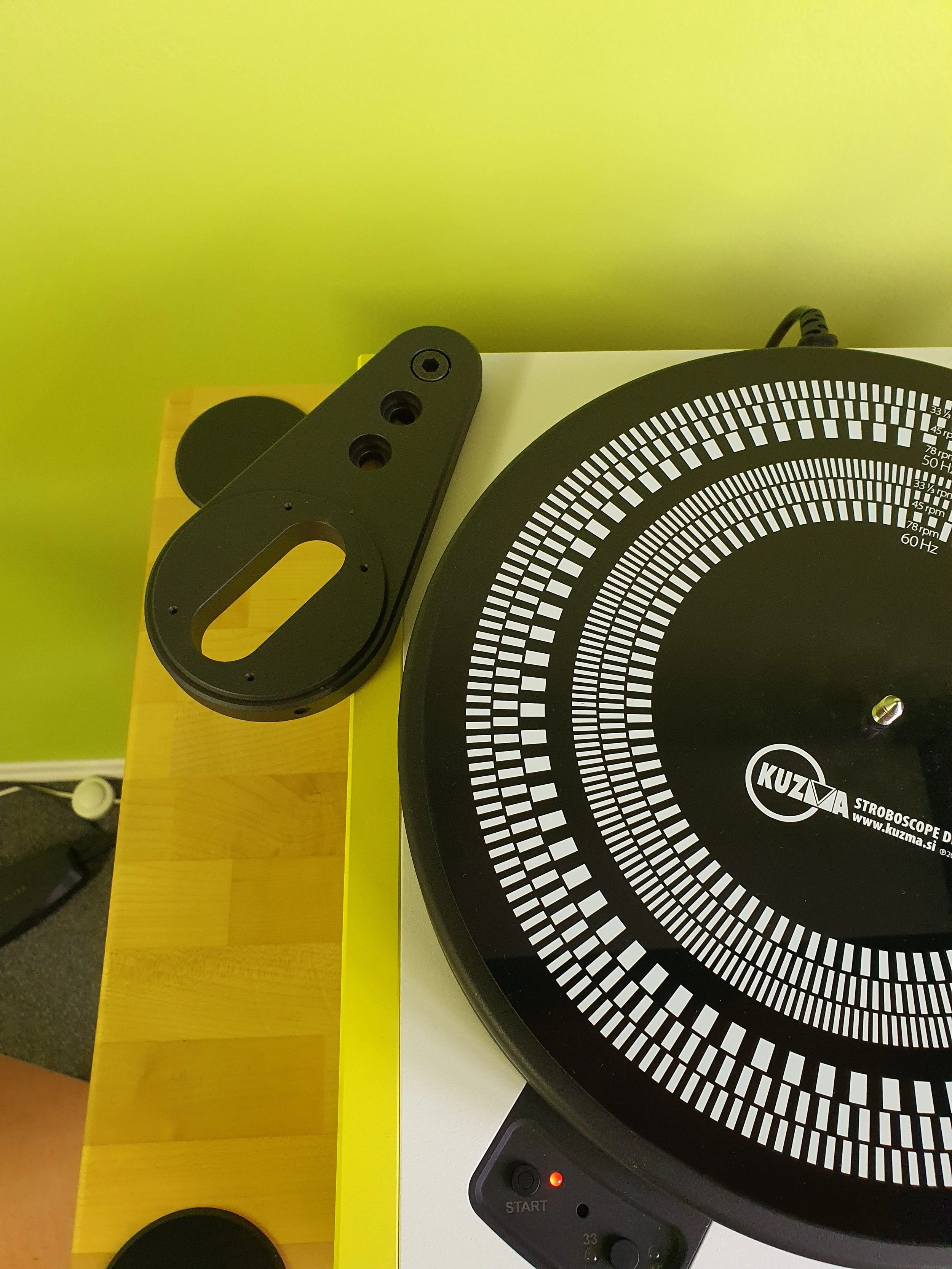

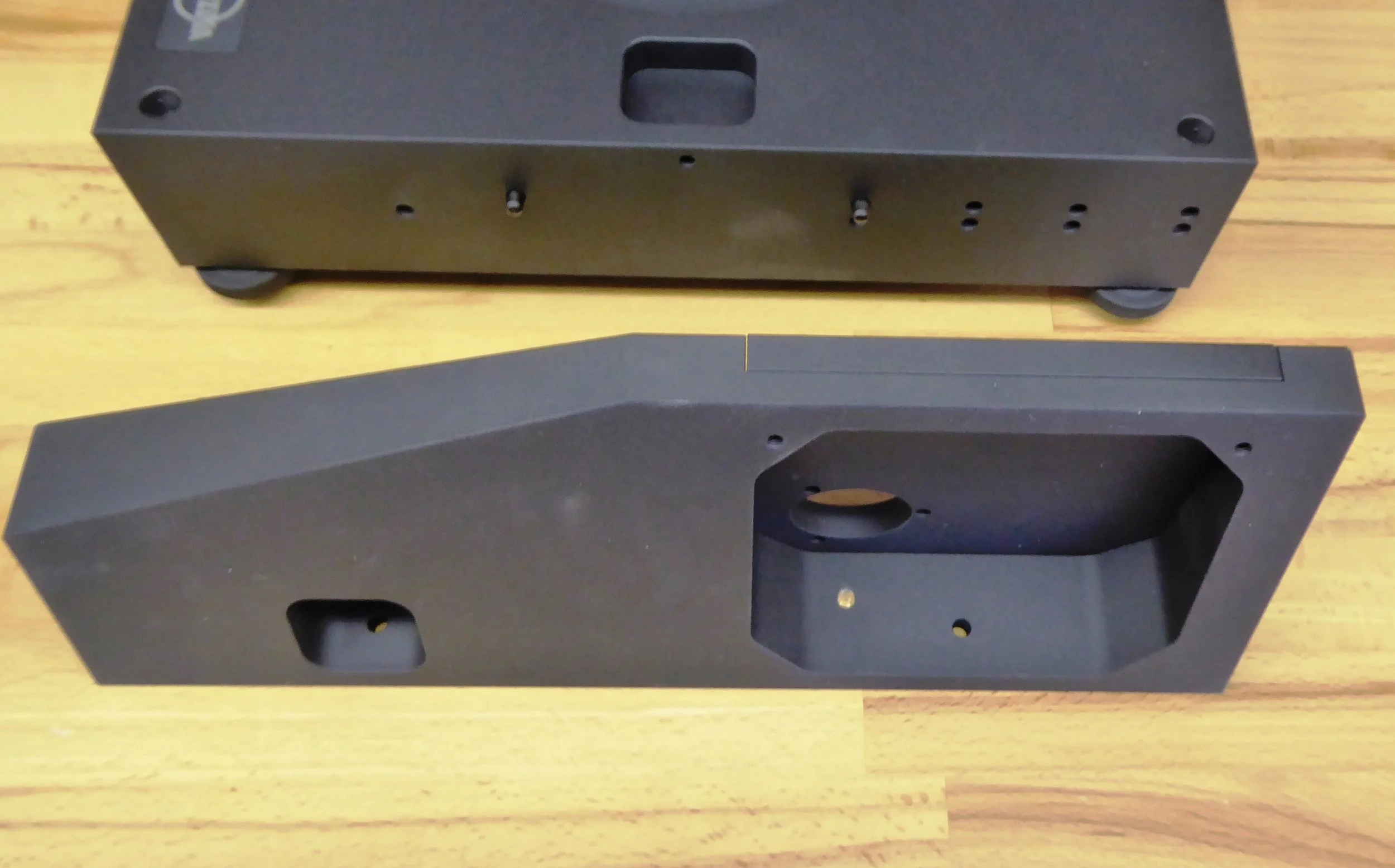

Wing with armboard: Available with various tonearm cut-outs.

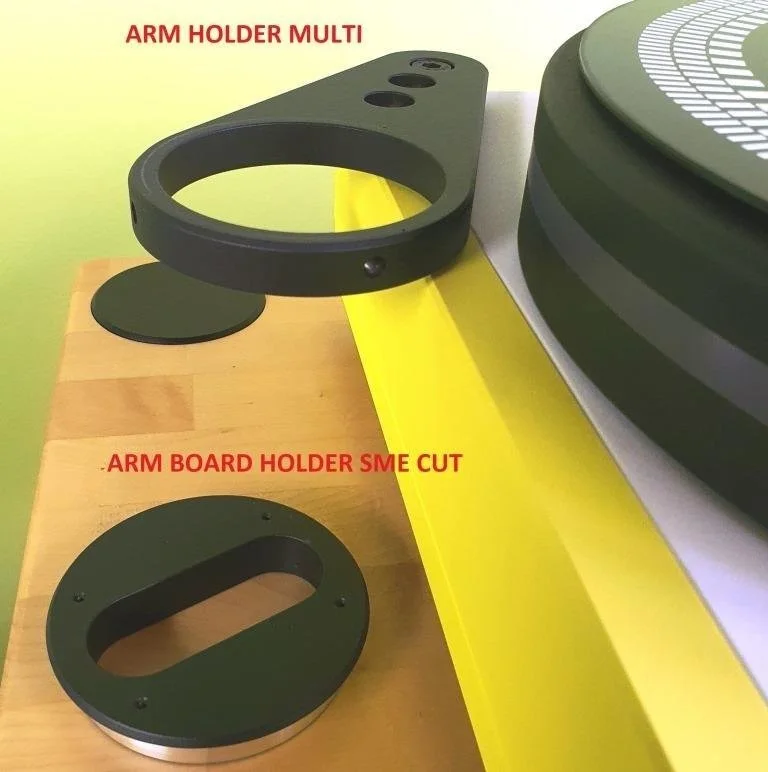

Arm holder and balcony: Available only with Kuzma cut-out.

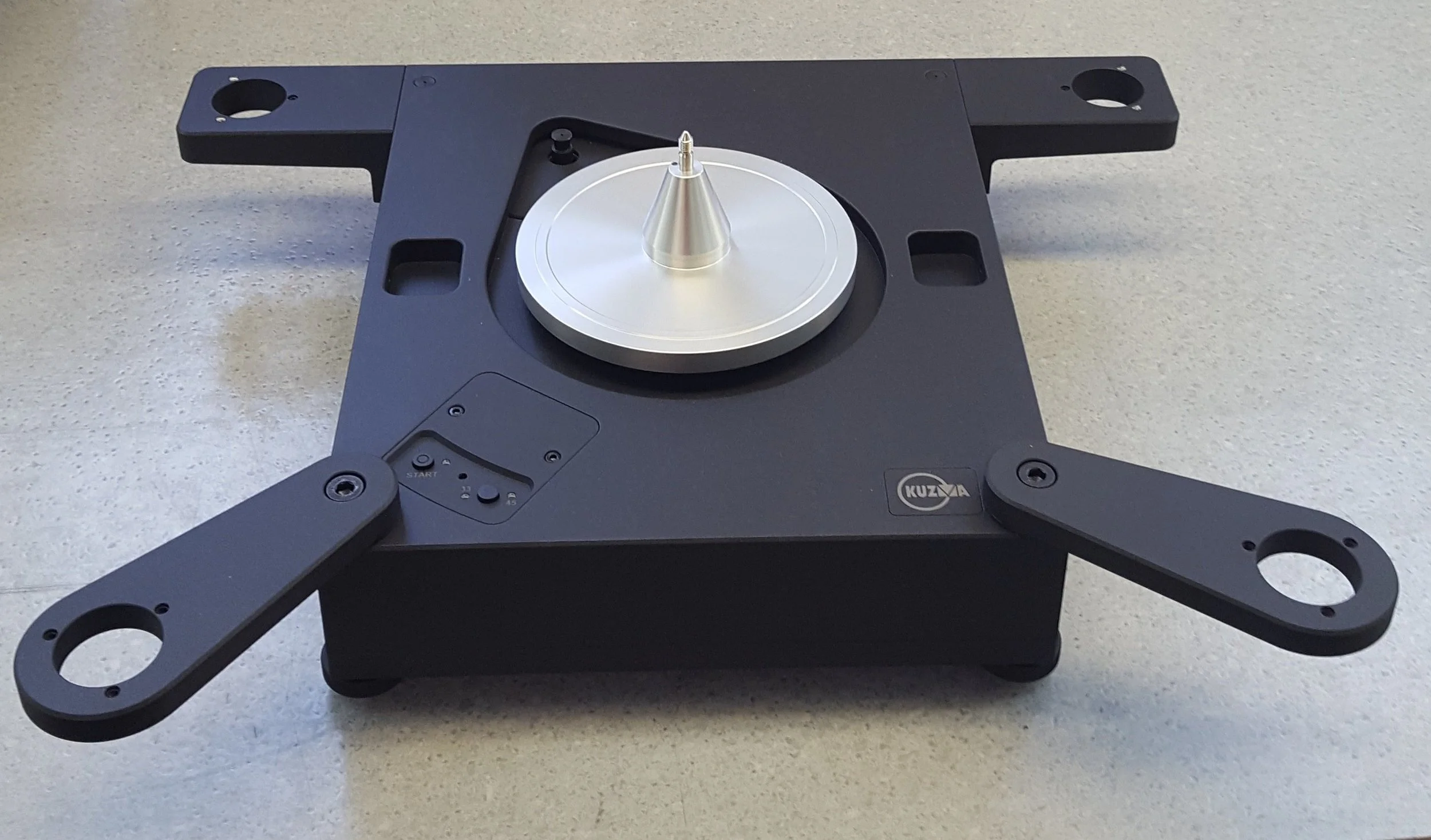

Stabi R base: Can be installed into your own DIY plinth.
-
Mass: 36 kg
Platter mass: 8 kg
Platter material: aluminium & acrylic
Bearing type: inverted (ruby ball)
Shaft diameter: 16 mm
Chassis/levelling: aluminium / yes
Turntable levelling: yes (4 adjustable feet-thread M12x1)
Drive: Single DC motor
Belt: proprietary non flexible belt
Internal power supply: yes (electronic)
Speeds: 33, 45, (fine speed adjustment)
Armboard: yes
VTA adjustment: no
No. of tonearms: 1 (+ up to 3 optional )
Suspension: no
Dimensions: 480 x 380 x 150 mm
Base only: 320 x 380 x 150 mm ( 30 kg) — RD with two wings: 600 x 380 x 150 mm ( 38 kg) — Wood version: 500 x 460 x 190 mm ( 39 kg)
Finish: black or silver ( RAL 9006 )
Record Clamp: optional ( there is a mistake on brochure)
Platter Mat: yes
Mains supply: 115/230/50-60 Hz
Dust Cover: no
Accessories supplied: bearing oil, Allen keys
Options: clamp, various pre-cut arm boards, RAL finishes, left sidearm wing, arm holder ( M10), arm holder multi ( M10), arm balcony , side panel, wooden frame...
-
