Kuzma Stabi SD Turntable

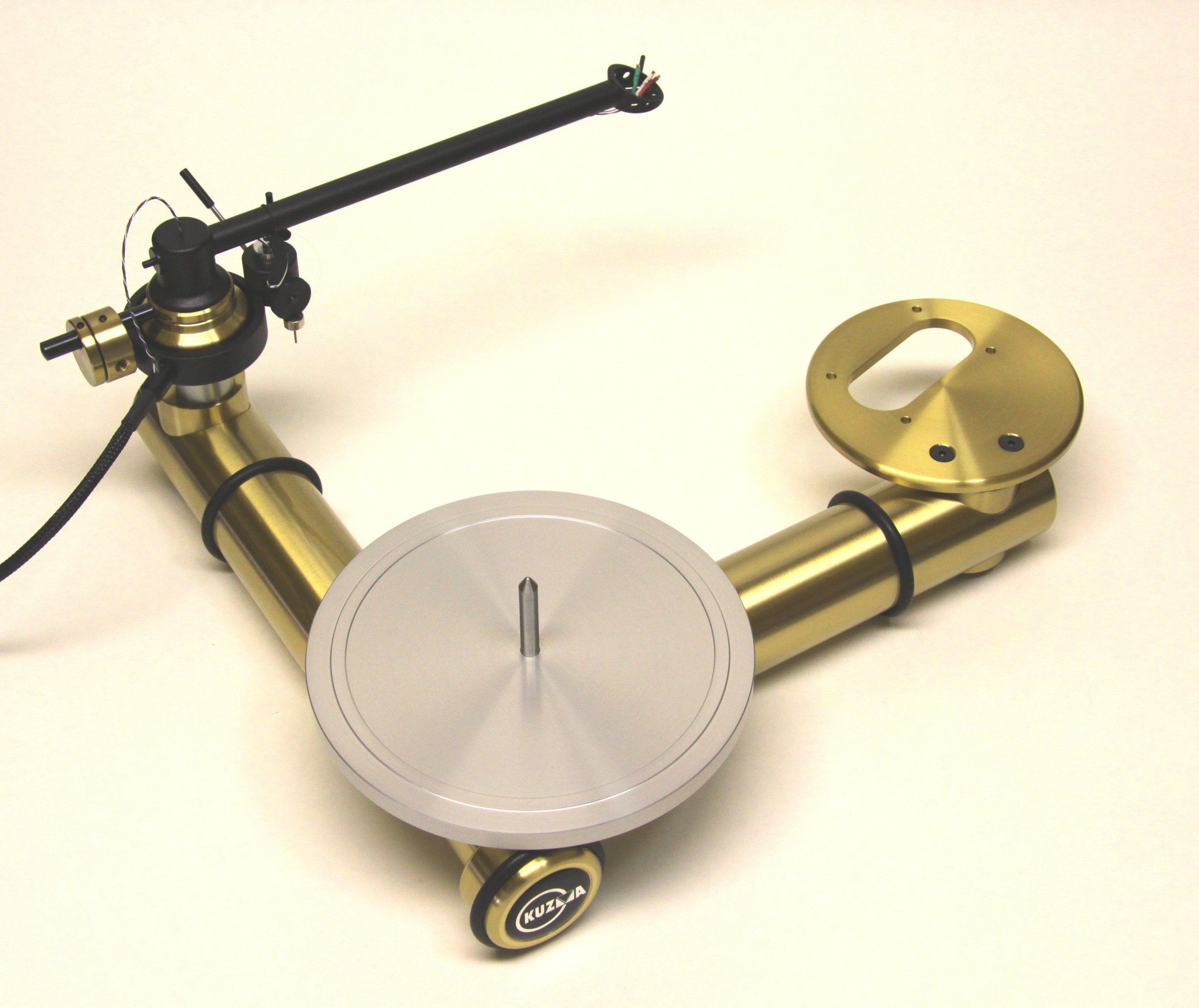

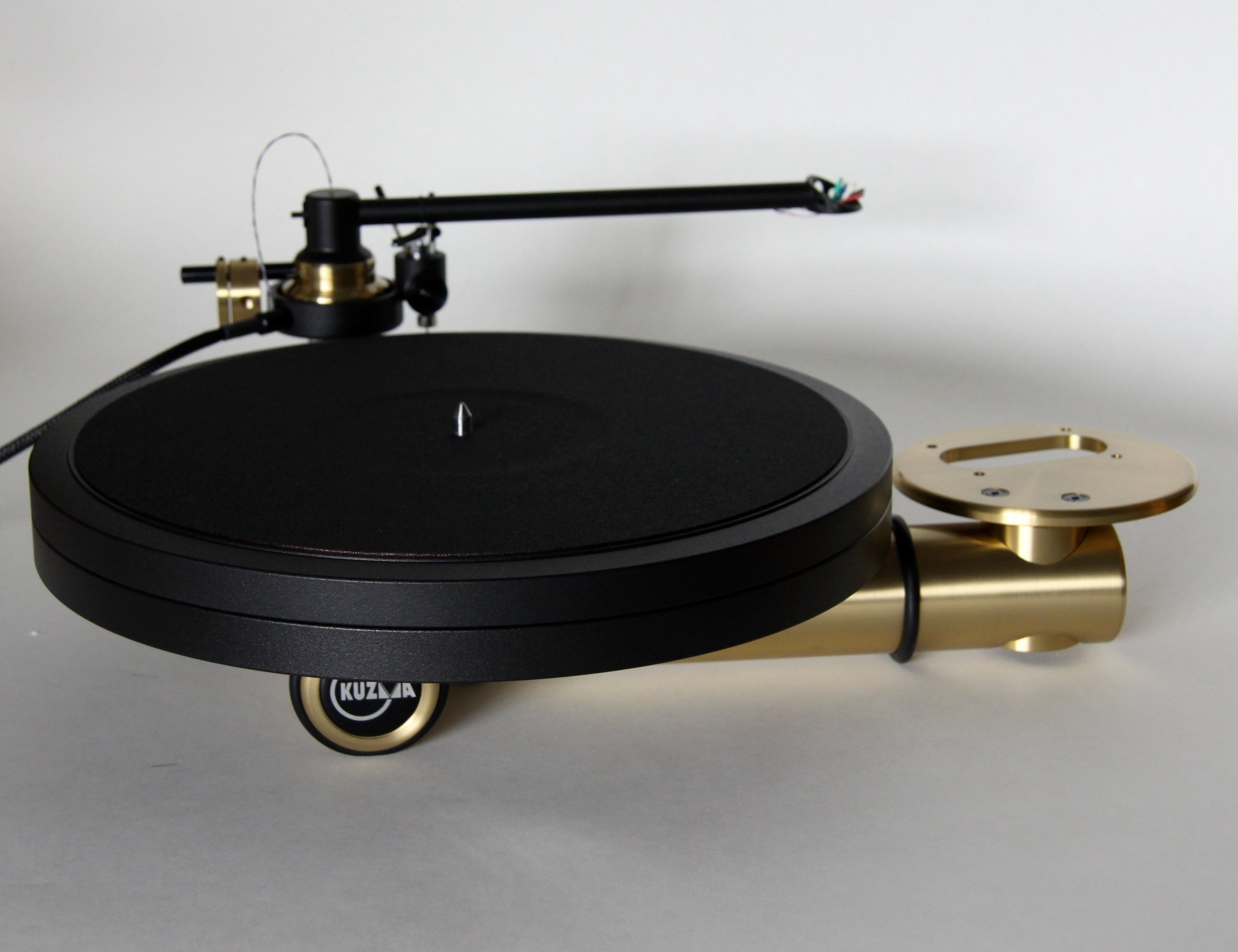

The Stabi SD is a special version of the Stabi S turntable, designed to accommodate two tonearms. The second tonearm is mounted on the extended T-section of the main turntable chassis.
The standard Stabi S can be modified to accept a second tonearm by simply replacing the shorter T-beam with an extended version (available in 9- or 12-inch lengths), which also increases the overall mass of the Stabi SD turntable.
Due to this construction, the original dust cover of the Stabi S does not fit the Stabi SD.

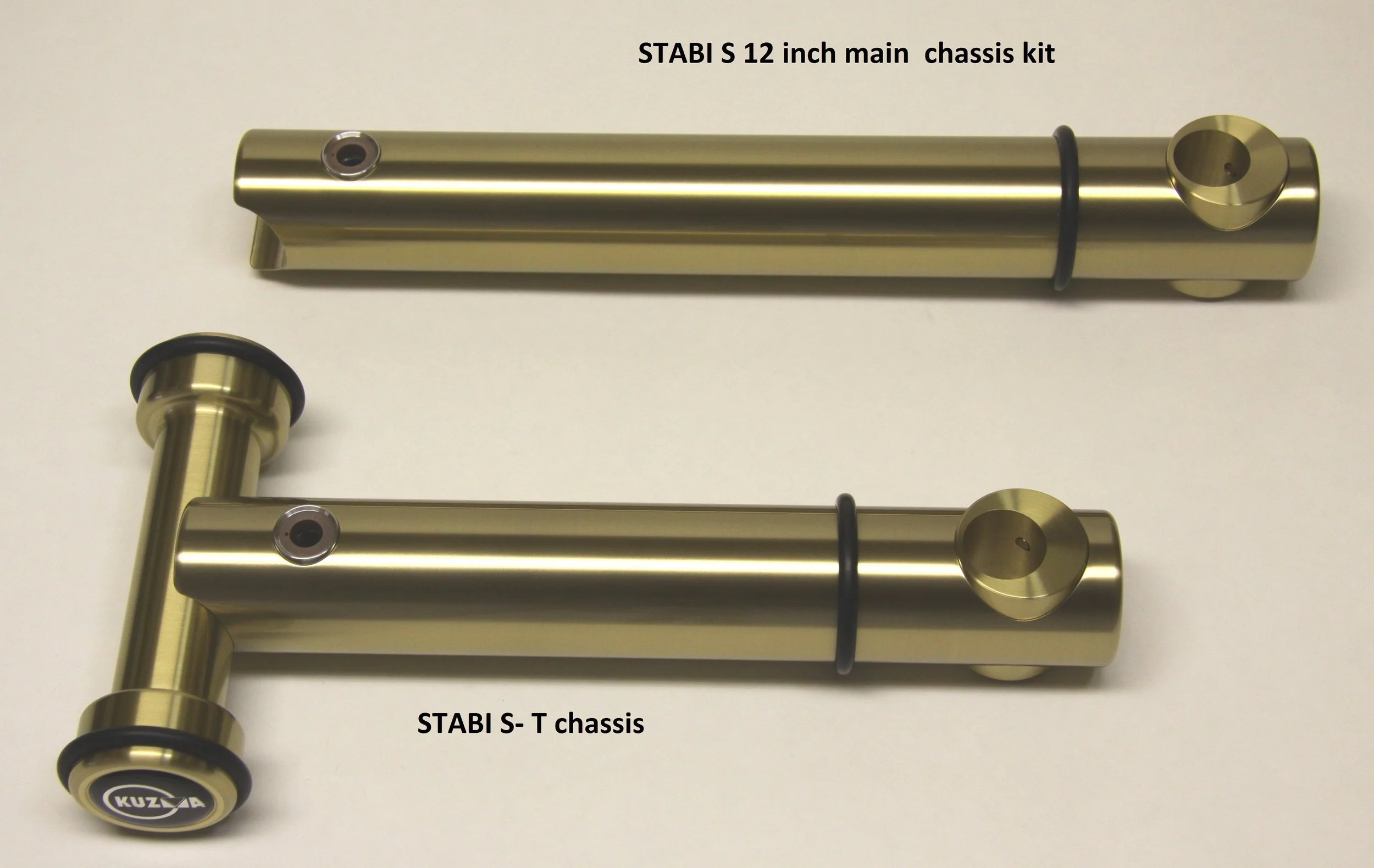

The Stabi S can also be converted into a 12-inch version.
The Stabi SD is a special version of the Stabi S turntable, designed to accommodate two tonearms. The second tonearm is mounted on the extended T-section of the main turntable chassis.
The standard Stabi S can be modified to accept a second tonearm by simply replacing the shorter T-beam with an extended version (available in 9- or 12-inch lengths), which also increases the overall mass of the Stabi SD turntable.
Due to this construction, the original dust cover of the Stabi S does not fit the Stabi SD.
The Stabi S can also be converted into a 12-inch version.
The Stabi SD is a special version of the Stabi S turntable, designed to accommodate two tonearms. The second tonearm is mounted on the extended T-section of the main turntable chassis.
The standard Stabi S can be modified to accept a second tonearm by simply replacing the shorter T-beam with an extended version (available in 9- or 12-inch lengths), which also increases the overall mass of the Stabi SD turntable.
Due to this construction, the original dust cover of the Stabi S does not fit the Stabi SD.
The Stabi S can also be converted into a 12-inch version.
Turntable Stabi SD is a special version of Stabi S turntable which can accommodate two tonearms. The second tonearm is fixed on the extended T part of the main turntable chassis. Stabi S turntable can be modified to accept a second tonearm by simply replacing the shorter part of T beam with extended version ( either 9 or 12 inch version) which also increases the mass of the Stabi SD turntable. Due to its construction the existing lid of Stabi S does not cover the Stabi SD. Stabi S can be also converted into Stabi S 12 inch version.
Added extra mass also improves turntable's sound performance!

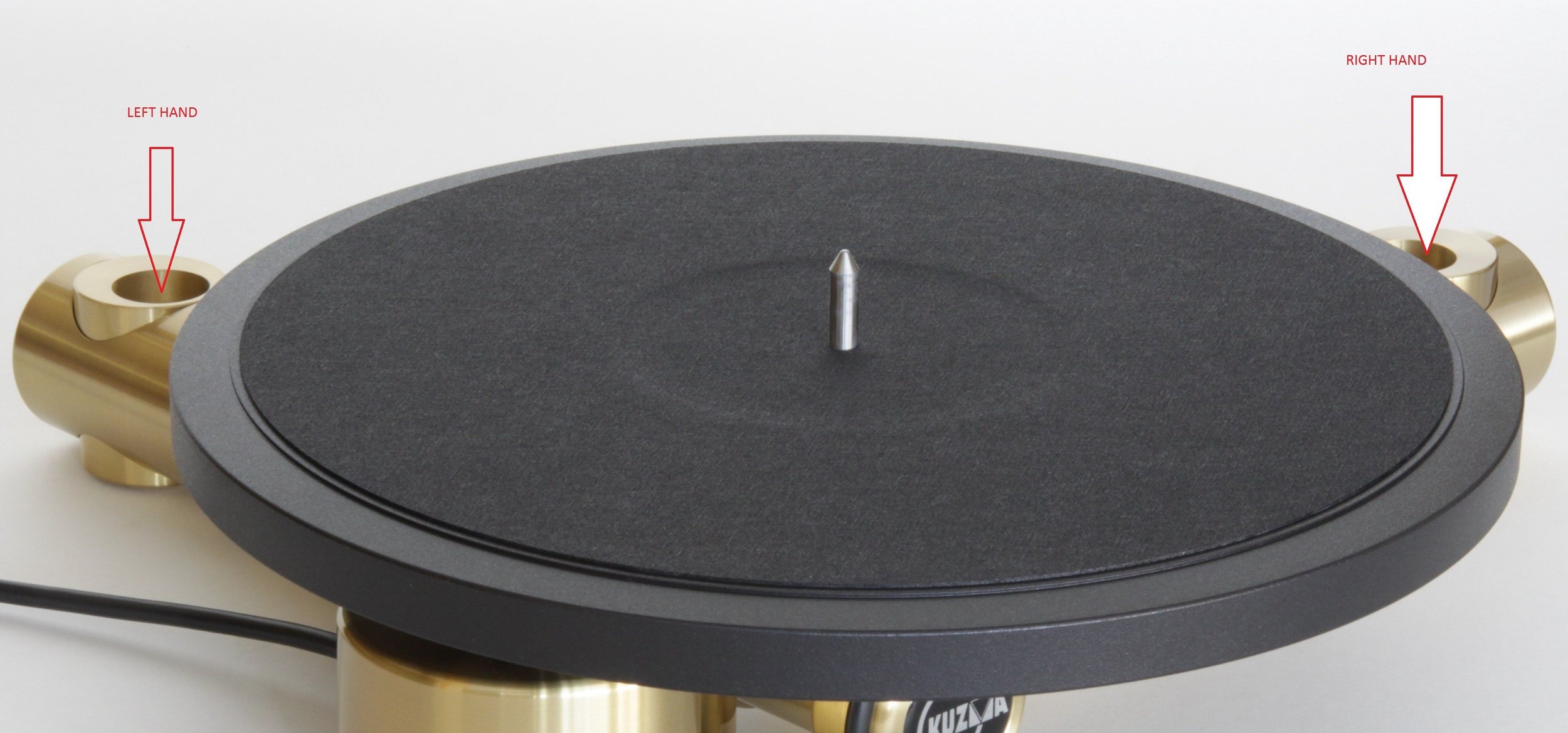

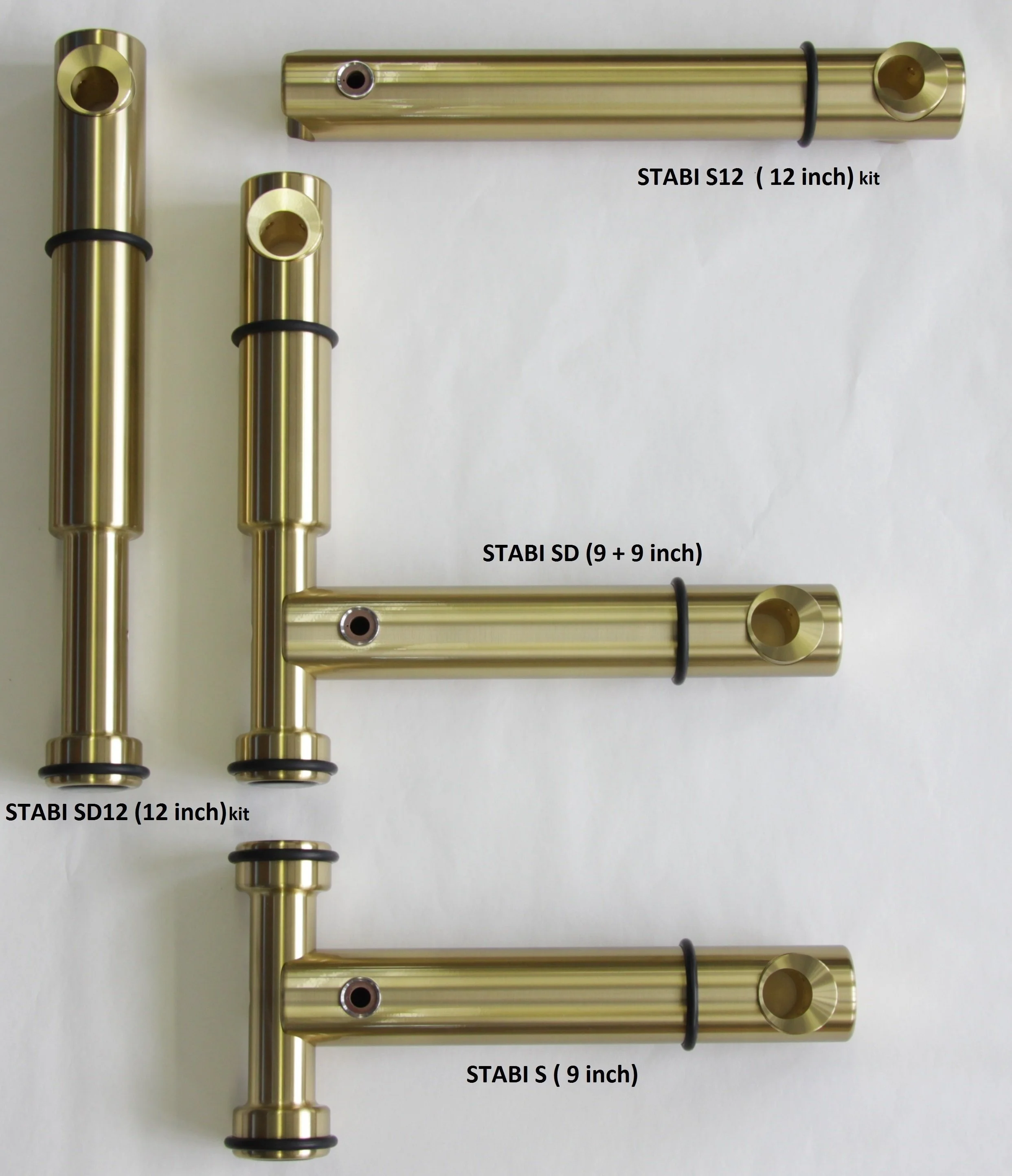

Stabi SD (double): Options for two tonearms as order or as upgrade from any other version: ( tonearm length in inches) first number indicated right hand side tonearm and second left hand side tonearm
Stabi S ( 9)
Stabi S12 (12)
Stabi SD ( 9+9)
Stabi S9D12 ( 9+12)
Stabi S12D9 (12+9)
Stabi S12D12 (12+12)
General description:

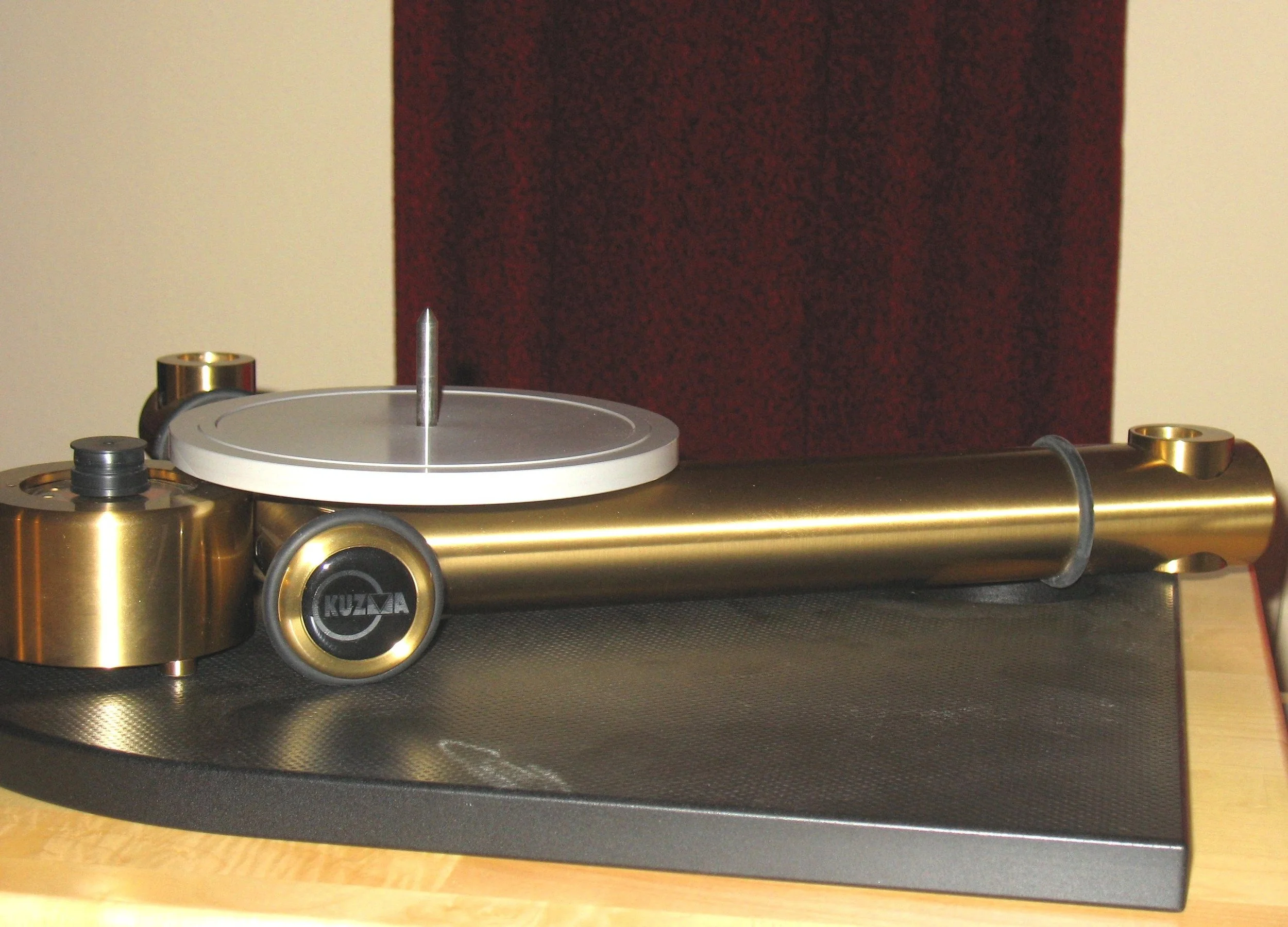

Its unique shape and construction of solid brass rods, provide an extremely rigid connection to platter, bearing and tonearm support. There is no flat plate to resonate and transmit vibrations, only solid brass rods 50mm in diameter. A second brass rod provides stability and the two are clamped together in a T shape. The motor is housed independently in its own bras tower which dampens vibration of the motor itself. A ground, flat belt provides drive from the motor pulley to the subplatter.
The bearing is of highly polished, fine grain carbon steel with a one point contact, while the bearing sleeve is of a resin/textile material which has excellent damping, non-resonant properties.
With a mat on top and rubber damping insert underneath, the sold aluminium platter provides a stable non-resonant platform for records.
A 45 rpm adaptor is provided and is simply slipped over the 33 rpm pulley. The turntable can accommodate various tonearms by the use of different pre- cut brass plates and it allows for VTA adjustment on any tonearm mounted.
-
Mass: 15,5 Kg
Platter mass: 4,3Kg ( 30 mm thick platter)
Platter material: Aluminium
Bearing type: Pointed shaft with resin/textile material
Shaft diameter: 10 mm
Drive: Flat rubber belt
Chassis/Levelling: Brass/ No
Turntable levelling: No
Motors: 1 pc AC
External power supply: optional
Speeds: 33,45 rpm
Armboard: optional ( Kuzma arms fit directly)
VTA adjustment: Yes
No. of tonearms: 2
Max tonearm’s length: 10” ( optional 12”)
Suspended: No
Dimensions: 480x400x170 mm
Finishes: brass or black
Clamp: Optional
Mat: Yes
Lid: no
Accessories: Oil, Allen keys
Options: SD ( double arm) kit,12” kit, Various armboards, outboard power supply, Brass clamp, supporting platforms.
-
