Kuzma Stabi S Turntable

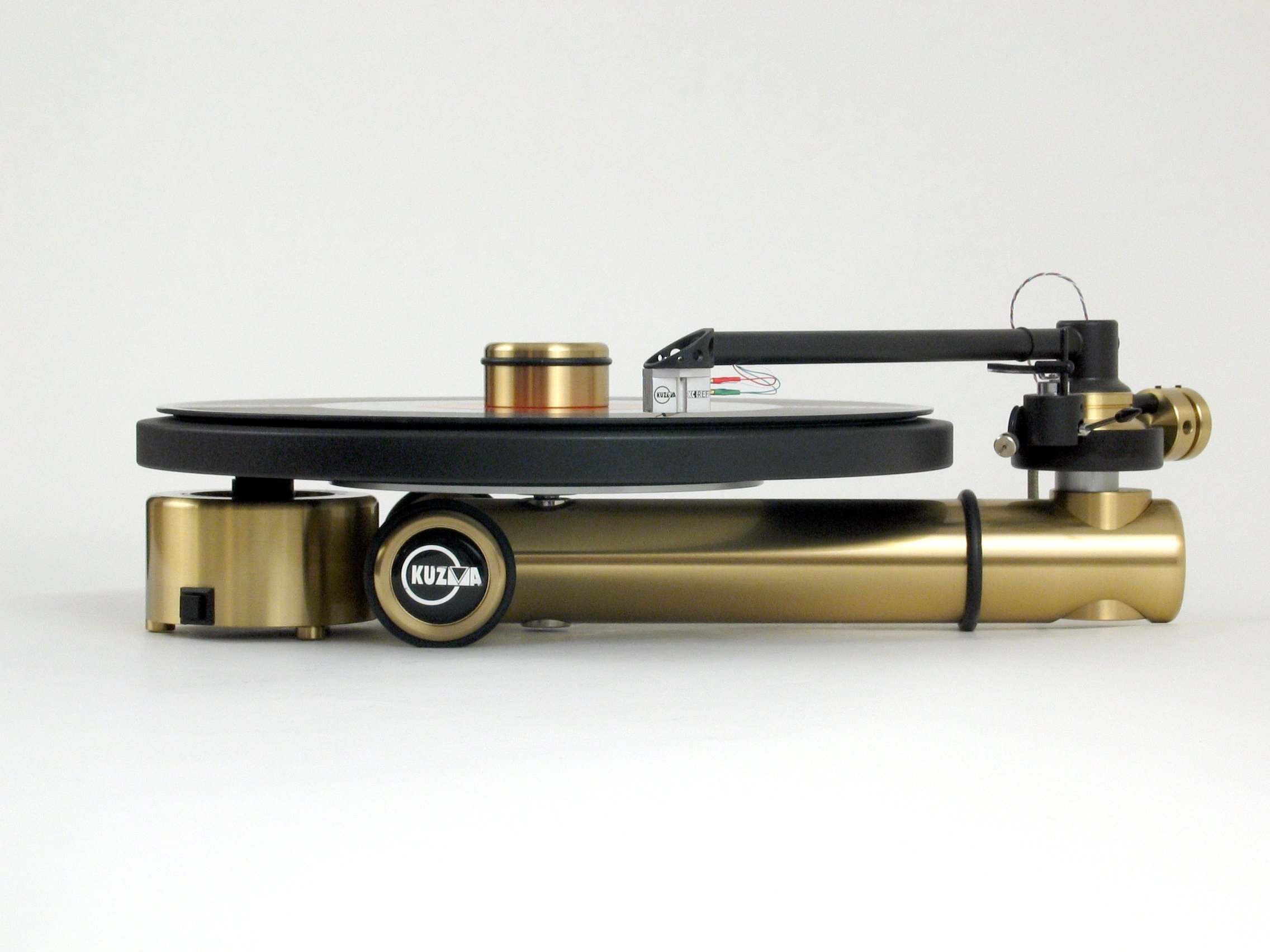

The Stabi S is our most compact turntable, designed with engineering principles typically reserved for higher-end models. Its distinctive structure—crafted from solid brass rods—ensures an exceptionally rigid connection between the platter, bearing, and tonearm support.

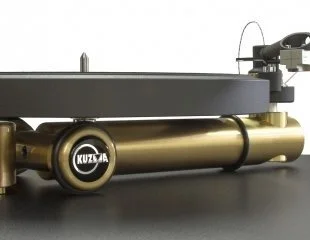

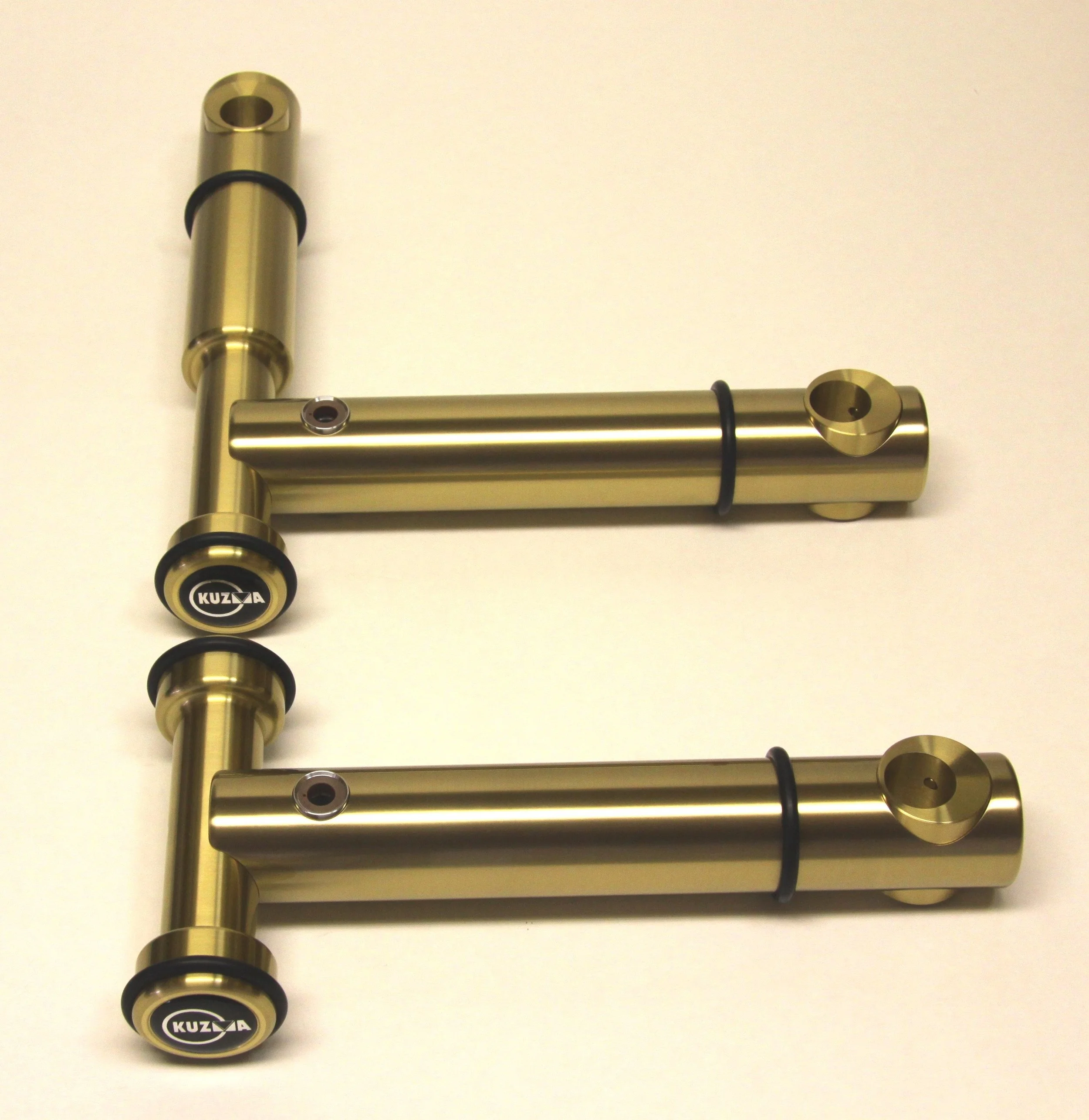

There is no flat plinth to resonate or transmit vibrations; instead, two solid brass rods, each 50 mm in diameter, form the foundation. One rod supports the platter and tonearm, while the second adds structural stability. These are clamped together in a rigid T-shaped configuration.

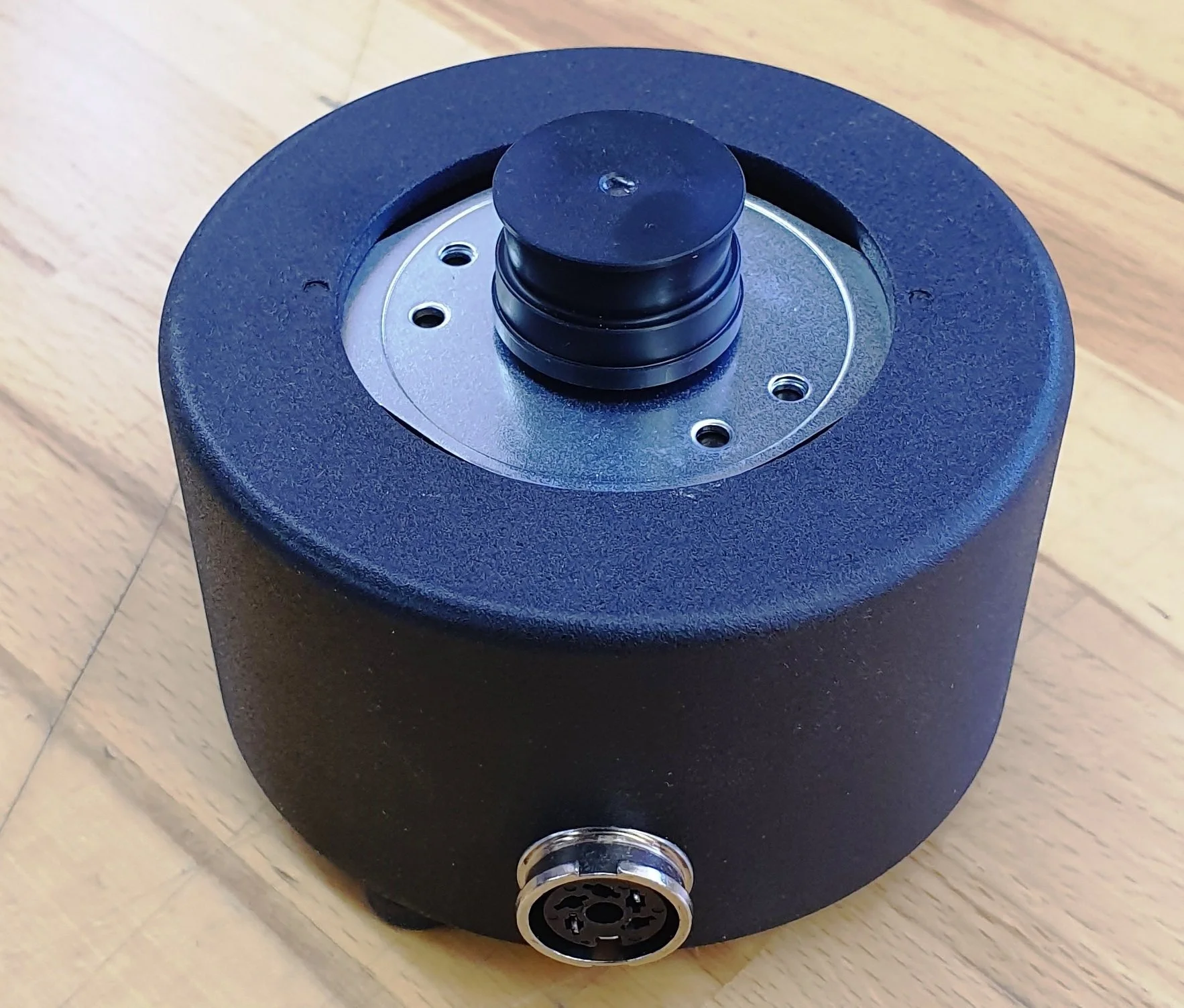

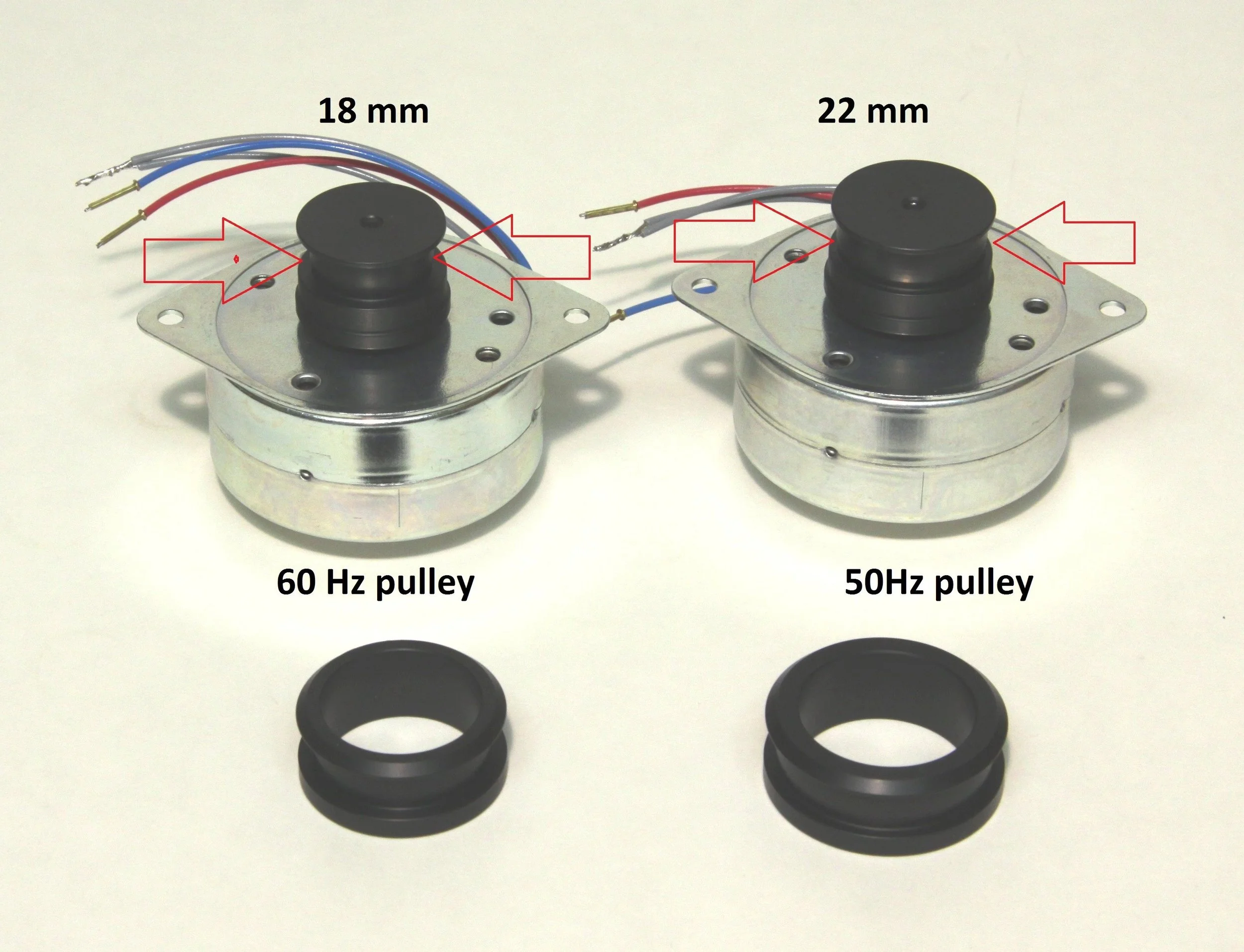

The motor is housed separately in its own solid brass tower, effectively damping any vibration generated by the motor. A precision-ground flat belt delivers drive from the motor pulley to the subplatter, ensuring smooth, stable rotation.
The Stabi S is our most compact turntable, designed with engineering principles typically reserved for higher-end models. Its distinctive structure—crafted from solid brass rods—ensures an exceptionally rigid connection between the platter, bearing, and tonearm support.
There is no flat plinth to resonate or transmit vibrations; instead, two solid brass rods, each 50 mm in diameter, form the foundation. One rod supports the platter and tonearm, while the second adds structural stability. These are clamped together in a rigid T-shaped configuration.
The motor is housed separately in its own solid brass tower, effectively damping any vibration generated by the motor. A precision-ground flat belt delivers drive from the motor pulley to the subplatter, ensuring smooth, stable rotation.
The Stabi S is our most compact turntable, designed with engineering principles typically reserved for higher-end models. Its distinctive structure—crafted from solid brass rods—ensures an exceptionally rigid connection between the platter, bearing, and tonearm support.
There is no flat plinth to resonate or transmit vibrations; instead, two solid brass rods, each 50 mm in diameter, form the foundation. One rod supports the platter and tonearm, while the second adds structural stability. These are clamped together in a rigid T-shaped configuration.
The motor is housed separately in its own solid brass tower, effectively damping any vibration generated by the motor. A precision-ground flat belt delivers drive from the motor pulley to the subplatter, ensuring smooth, stable rotation.
The bearing is made from highly polished, fine-grain carbon steel with a single-point contact. The bearing sleeve is crafted from a resin/textile composite, chosen for its excellent damping and non-resonant properties.
The solid aluminium platter, equipped with a mat on top and a rubber damping insert underneath, provides a stable, non-resonant platform for vinyl playback. Since 2018, the platter has been supplied in a thicker 30 mm version for added mass and stability.

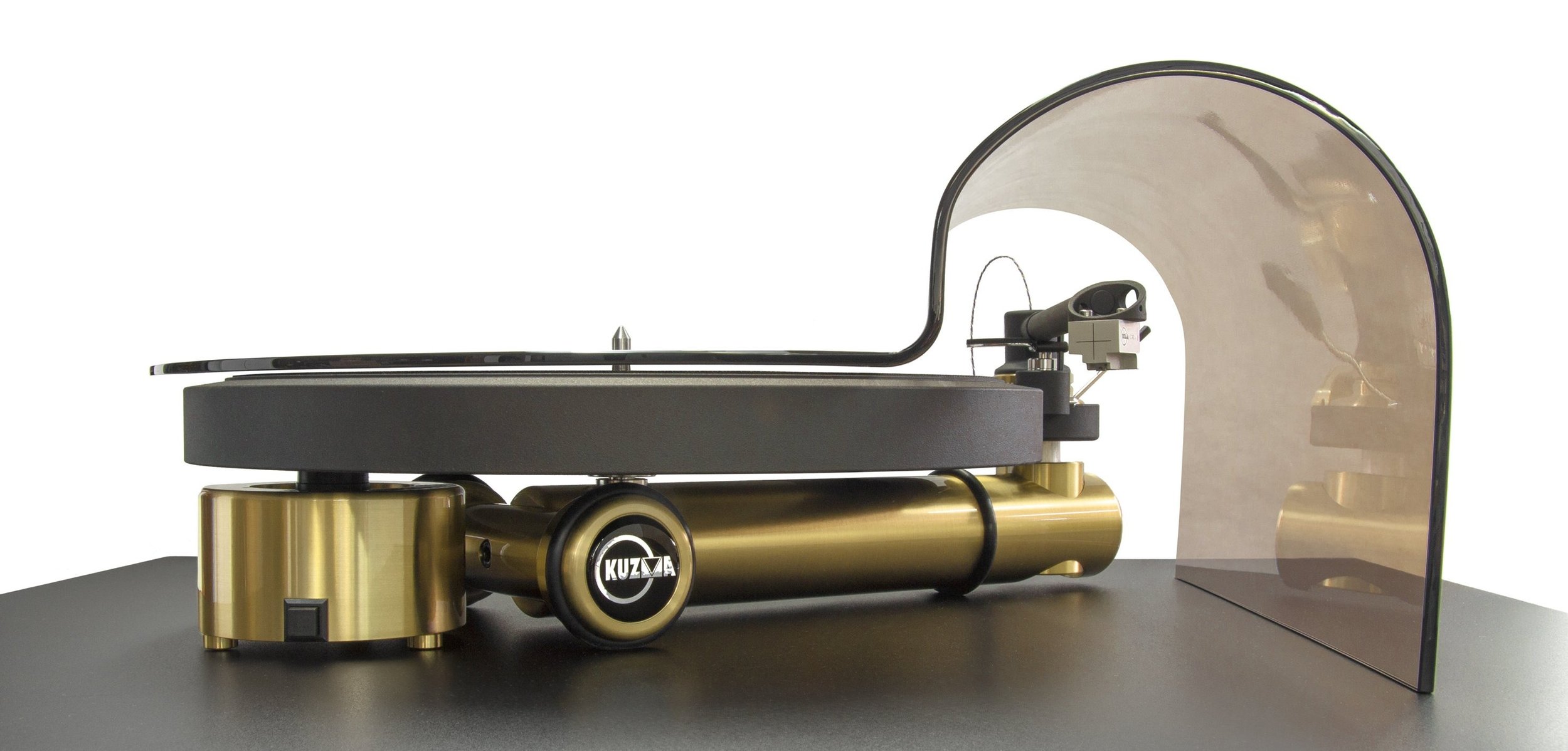

An acrylic cover protects both the platter and tonearm while visually echoing the turntable’s unique shape. A 45 rpm adaptor is included and simply fits over the 33 rpm pulley for quick speed changes.
The turntable accommodates a variety of tonearms through the use of interchangeable pre-cut brass mounting plates, and allows for VTA adjustment on any installed tonearm.

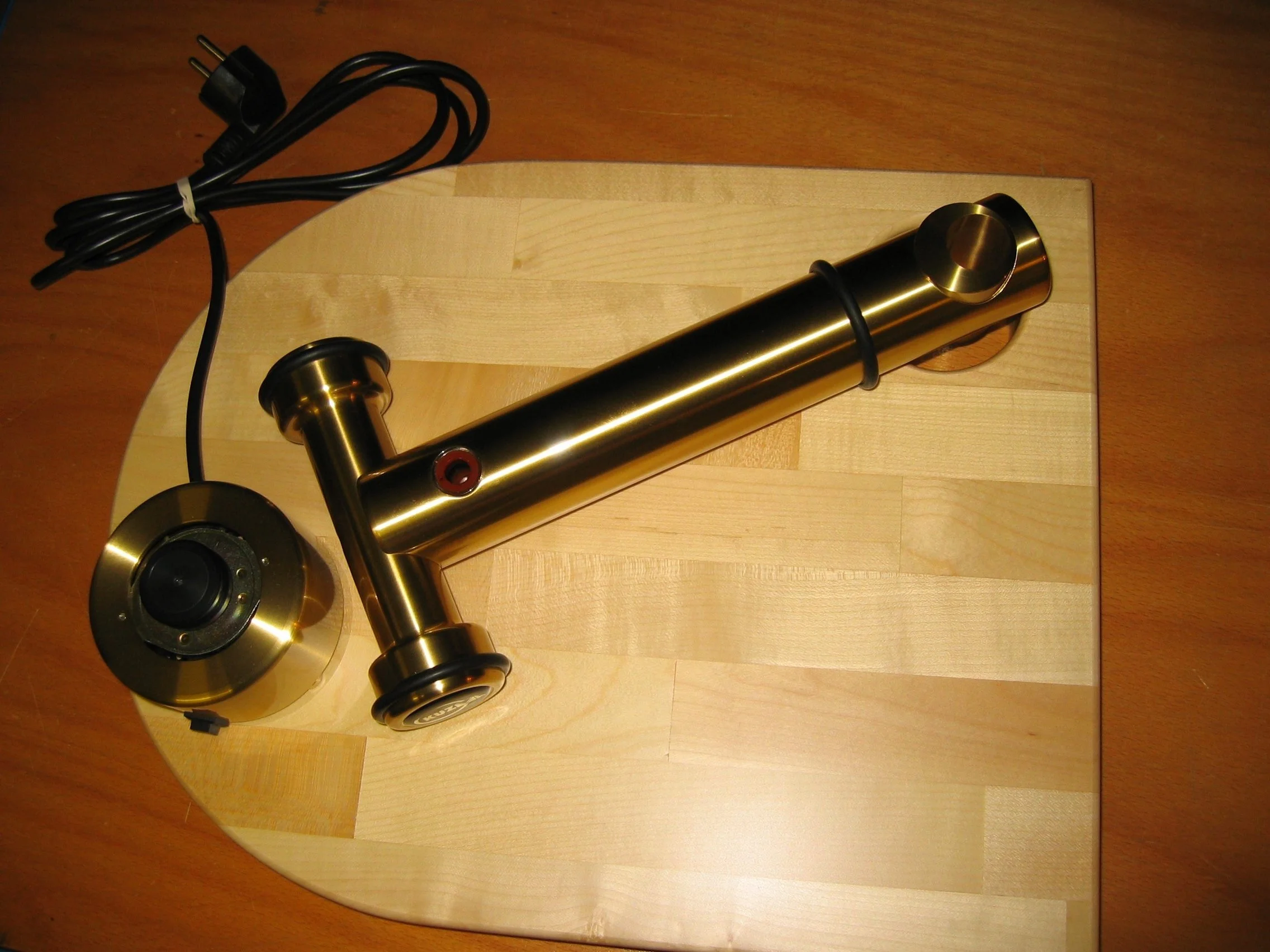

The entire turntable can be optionally supported by a high-density plywood base for additional stability.
Introduced: 1998
-
Mass: 13 Kg
Platter mass: 4,3 Kg ( since 2018 is supplied thicker platter - 30 mm)
Platter material: Aluminium
Bearing typ: Pointed shaft with resin/textile material
Shaft diameter: 10 mm
Drive: Flat rubber belt
Chassis/Levelling: Brass/No
Turntable levelling: No
Motors: 1 pc AC

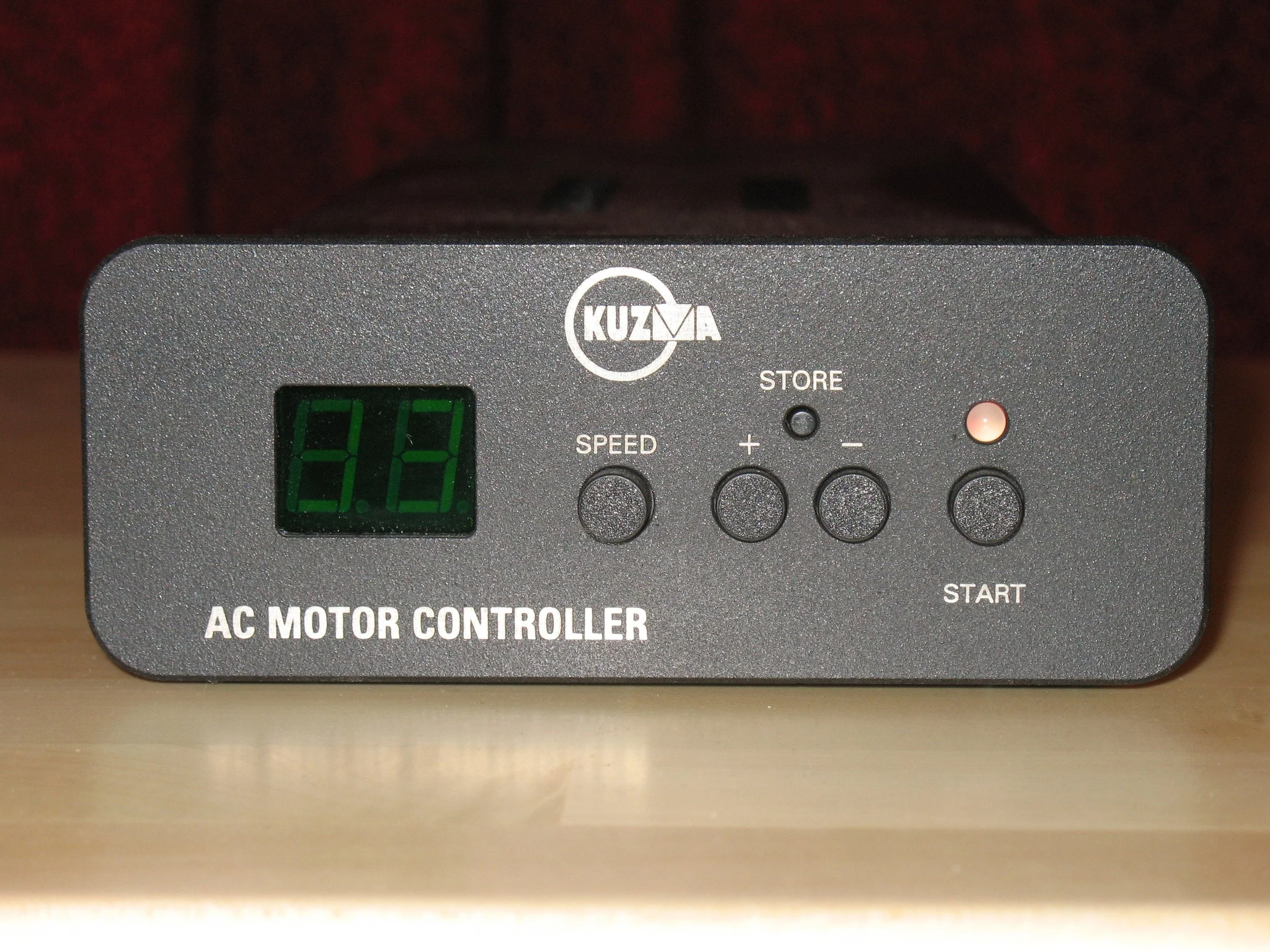

External power supply: optional
Speeds: 33,45 rpm
Armboard: optional ( Kuzma arms fit directly)
VTA adjustment: Yes
No. of tonearms: 1 (+1 optional)
Max tonearm’s length: 10” ( optional 12”)
Suspended: No
Dimensions: 400x300x170 mm
Finishes: brass or black ( RAL finish by order)
Clamp: Optional
Mat: Yes
Lid: Yes
Accessories: Oil, Allen keys
Options: SD- second arm kit,12” kit, various armboards, outboard power supply.
-
