Portfolio Kuzma Stogi S 12 VTA Tonearm
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm Image 1 of 2
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm Image 2 of 2
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm

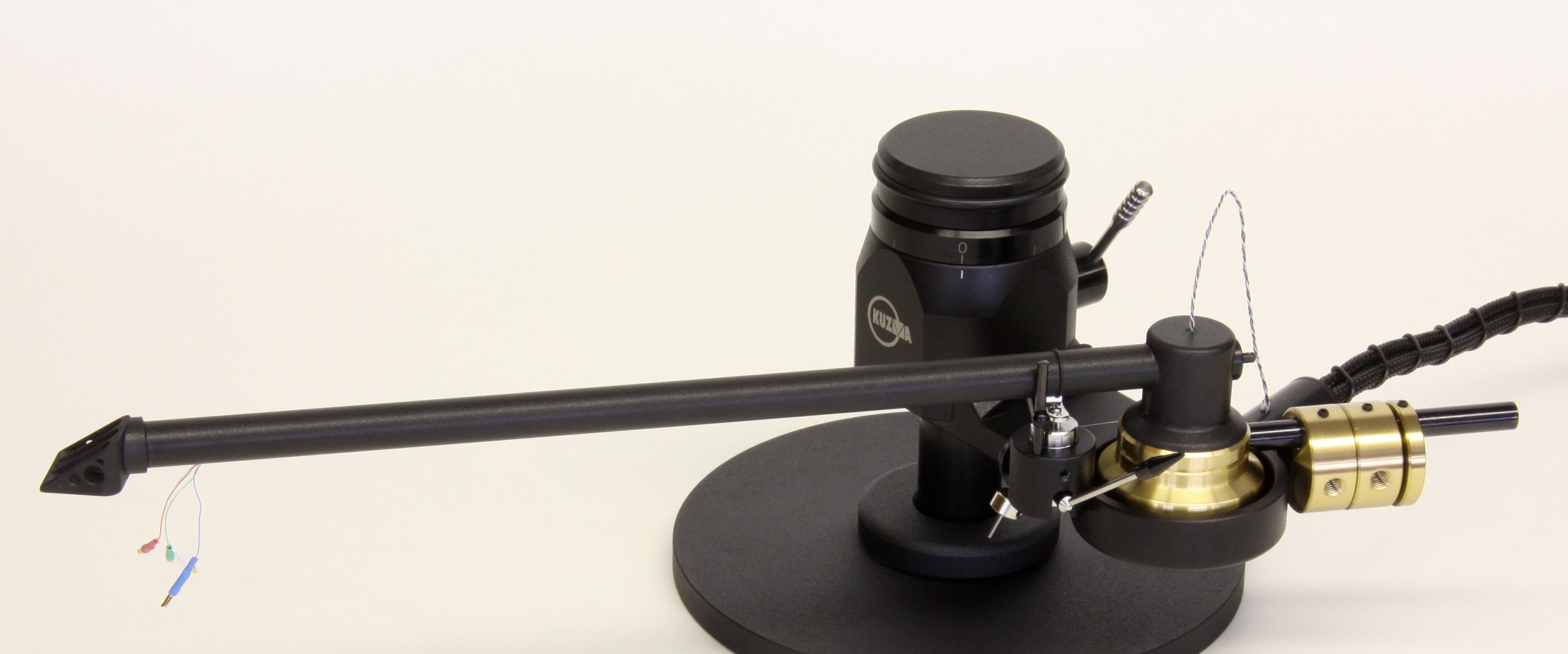

Kuzma Stogi S 12 VTA Tonearm

from €3,190.00

This is a  Stogi S 12 inch version tonearm  with a  fully precise adjustable VTA tower fitting on the standard 9 inch  tonearm distance. The Stogi S 12 VTA tonearm shares the main features of Stogi S & Stogi S 12 and 4Point  tonearms, i.e. a unipivot bearing, headshell rigid construction and a unique VTA tower used in our best tonearms.

Finish:
Quantity:
Add to Basket

This is a  Stogi S 12 inch version tonearm  with a  fully precise adjustable VTA tower fitting on the standard 9 inch  tonearm distance. The Stogi S 12 VTA tonearm shares the main features of Stogi S & Stogi S 12 and 4Point  tonearms, i.e. a unipivot bearing, headshell rigid construction and a unique VTA tower used in our best tonearms.

This is a  Stogi S 12 inch version tonearm  with a  fully precise adjustable VTA tower fitting on the standard 9 inch  tonearm distance. The Stogi S 12 VTA tonearm shares the main features of Stogi S & Stogi S 12 and 4Point  tonearms, i.e. a unipivot bearing, headshell rigid construction and a unique VTA tower used in our best tonearms.

The whole construction is mounted on a rigid VTA tower which allows VTA ( vertical tracking angle)  adjustment while playing, without any loss of rigidity, yet with up to 0.01mm of precision with zero play and repeatability.

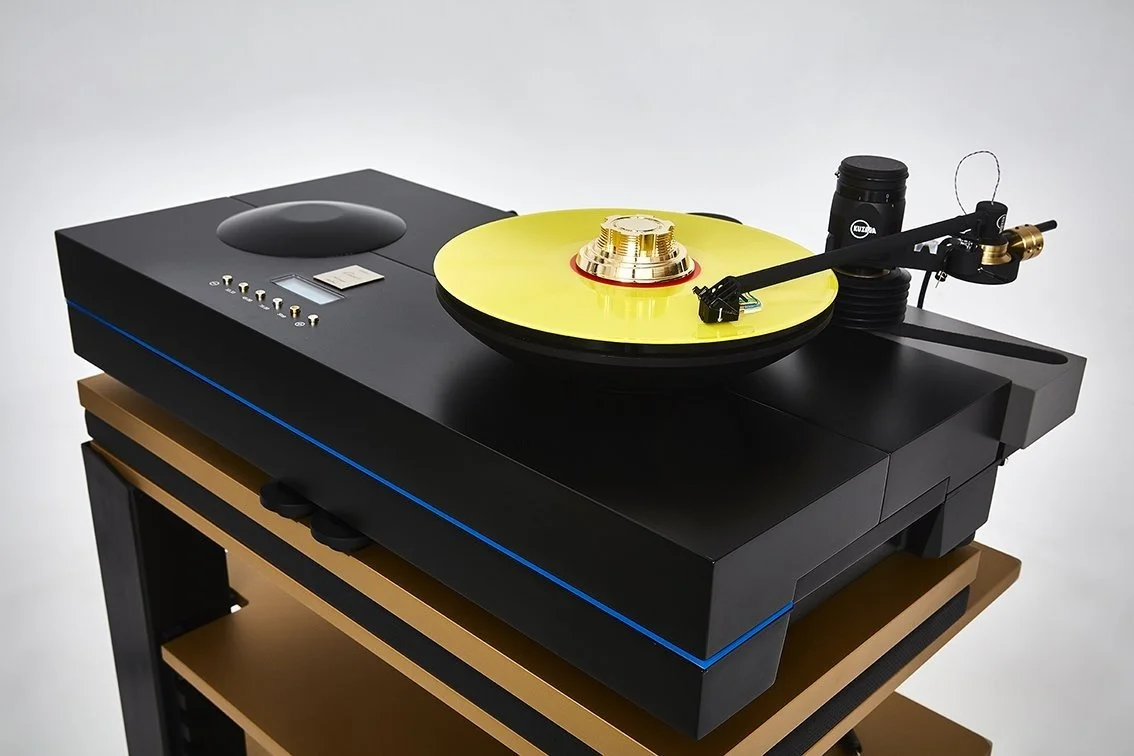

Tonearm fits standard size turntables, so there is no need to replace the turntable to experience the advantages of a longer tonearms and fine VTA adjustments.
General description:
It is  a unipivot bearing design with a unique, rigid square headshell made from a solid aluminium block and a base of solid brass which control all vibration and facilitate stability of the tonearm as a whole. All parts of the arm are machined from blocks of solid metal, in order to provide damping and minimise resonance. The polished pivot point is sited in an oil well, which provides extremely low friction and bearing vibration. The bearing height is at record level for optimum tracking. The silicone damping controls resonance of the cartridge and also gives stability in azimuth direction.

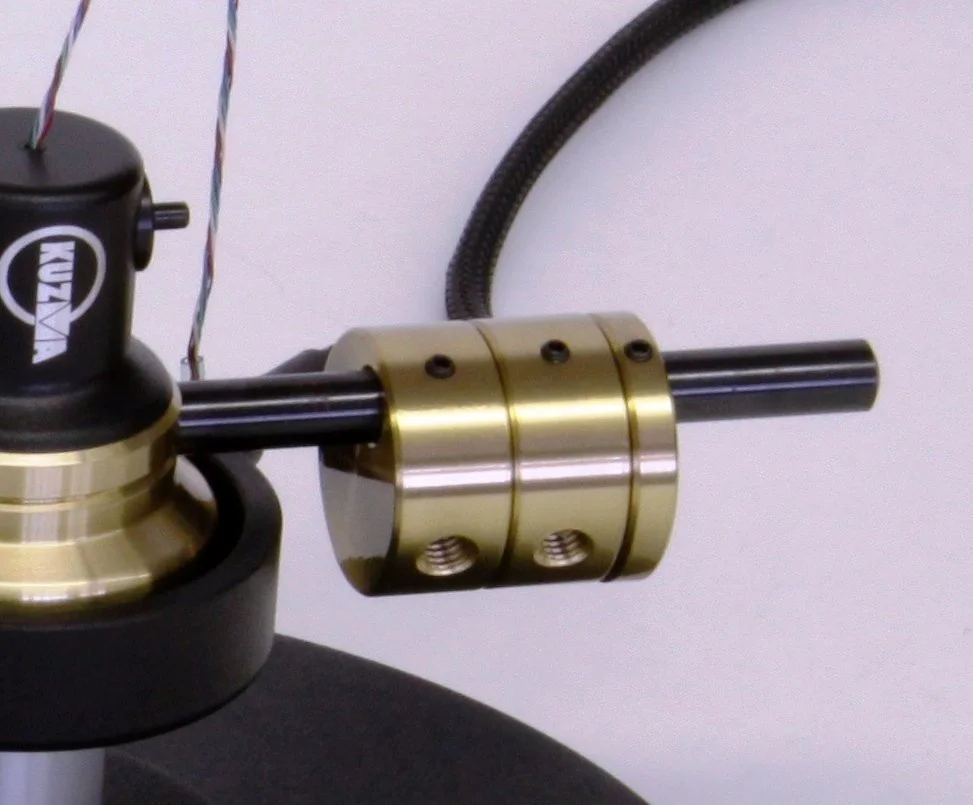

Two counterweights allow easy adjustments of tracking force and azimuth. Fine azimuth adjustment is achieved by rotation of a horizontal screw in the main counterweight, which does not affect other tonearm parameters and which makes fine azimuth adjustment very simple.

Wires are in one uninterrupted piece from headshell to RCA phono connectors. By pre-order, wiring can also be fitted in for balanced ( XLR) connection.

Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm
Walden High-End Audio Kuzma Stogi S 12 VTA Tonearm
    • Effective length: 304, 8 mm

    • Arm mount distance: 212 mm

    • Distance from spindle to horizontal bearing: 291 mm

    • Bearing type: Unipivot

    • Effective mass: 12 g

    • Total mass: 1750 g

    • Offset angle: 17.8*

    • VTA adjustment: precise VTA tower

    • Azimuth adjustment: Yes

    • Tube: Straight

    • Bias: Yes

    • Max. Standard cartridge weight: 15 g ( more?)

    • Optional light and heavy counterweight: Yes

    • Damping: Yes

    • Detachable headshell: No

    • Arm mount: Kuzma

    • Standard wiring: Copper, RCA Bullets ( 75pF)

    • Accessories: protractors, Allen keys, cartridge mounting screws

    • Options: XLR, 5pin

  • Kuzma Stogi S 12 VTA Tonarm Brochure
