Higher Strength Low Resonance Arm-tube
The high-grade aircraft alloy tube is stiffened with carbon fibre. In addition, the tube is processed for improved resonance control. A long rear stub sleeve provides further reinforcement and this is carefully interfaced to provide maximum energy dissipation and minimal reflections. This frees up your cartridge to perform as it should – away from the colouration and disruption caused by resonance and reflected vibration.
Sleeved Rear Stub
with a larger diameter, higher strength and improved energy dissipation. This improves counterweight stability in vibration – thus enabling the arm tube to hold the cartridge more steadily.
Rigidly Attached Counterweight
The counterweight attachment has been carefully engineered to hold the armtube more rigidly for cartridge stability whilst at the same time decoupling itself to minimize energy reflection back down the tube. The results are clearly heard in improved dynamics and a sense of power and control in the bass
Low Resonance Counterweight
Counterweight resonance is reduced using a higher grade material and then applying a dampening coating.
Counterweight Fine Adjuster
allows you to easily set the tracking force with a high degree of accuracy. Headshell features improved de-coupling and lightweight finger-lift.
Headshell
features improved de-coupling and lightweight finger-lift.
Sophisticated Yoke Decoupling
with several additional isolation interfaces from the vertical bearings.
Dual Pivot Bearings
For vertical arm movement, the bearings consist of Ultra-hard tungsten carbide points sitting in hardened and burnished steel cups. This combination not only delivers incredibly low friction levels but is also much more robust than jewelled bearings which tend to shatter under stress. The results are incredible transparency, fluidity and retrieval of fine detail.
Ceramic Bearings
For horizontal arm movement, the ballbearings are upgraded to highly specified ultra-low friction Ceramic bearings.
Mirror Finished Yoke
The Yoke is finished with a true mirror surface and coated in Chrome Nitride. Using the same supplier as Rolex, this Chrome Nitride coating achieves an extremely high level of quality and durability.
-
Precise & Accessible VTA Adjuster: VTA can be adjusted precisely and infinitely using a large diameter calibrated dial. A further advantage is that all adjustments can be carried out above the arm-board (unlike lower arms in the range which demand access below the arm-board).
Falling Weight Side Bias: Tests show this to be the highest performing method of achieving side bias. It has lower friction, better constant force and lower resonance than other alternatives such as magnets, springs, levers and twisted threads.
Internal Wiring: is ultra-low loss Silver Hybrid version producing greater transparency, detail and freedom from artefacts.
Silver-plated Headshell Clips: At such low signal levels electrical interfaces can be heard and silver marginally outperforms gold.

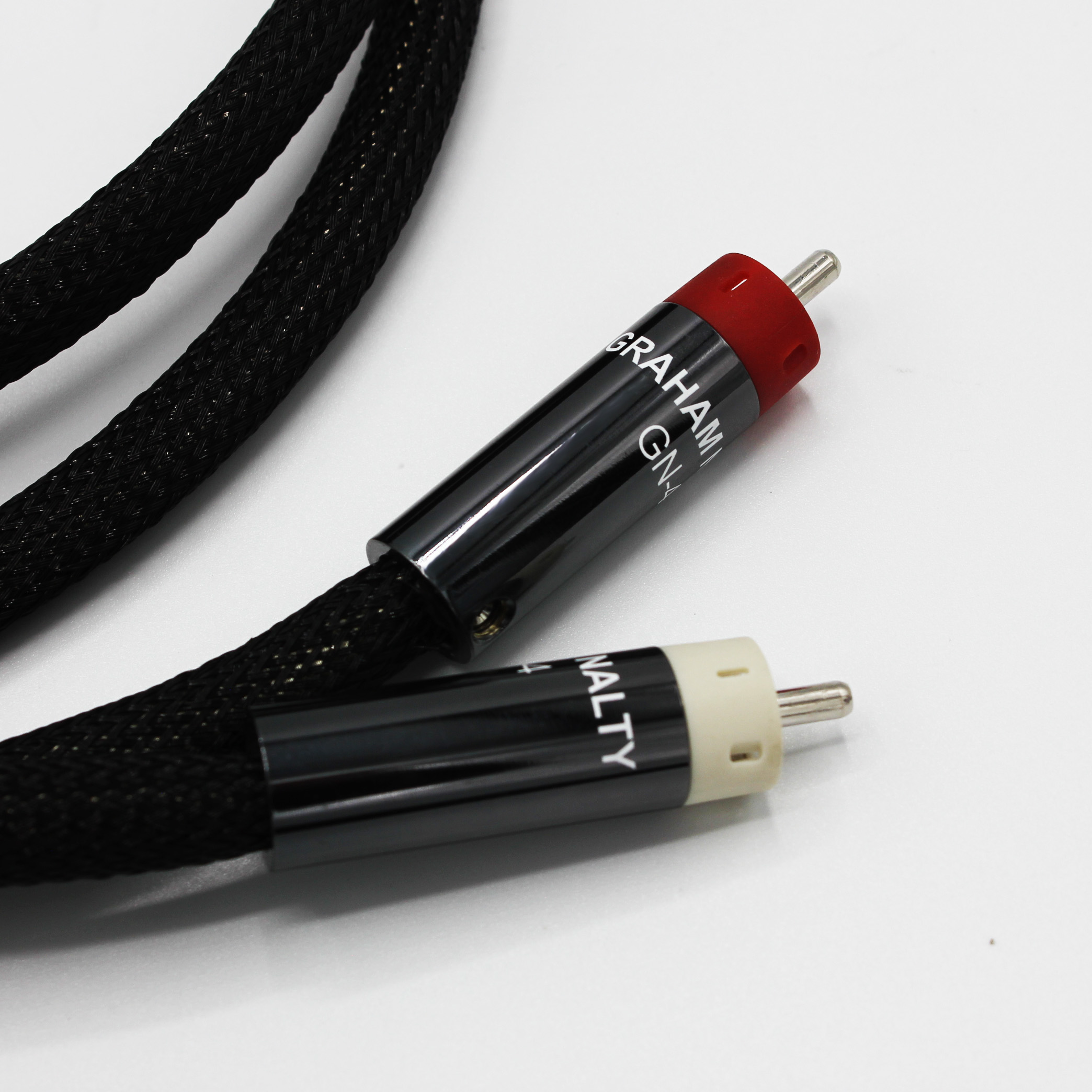

External Cable is Silver Hybrid 1m Long: A groundbreaking design with high-grade single point RCA plugs fits directly into your phono-stage or amplifier. This cable outperforms most on the market up to, and over £4000. It is described fully in the cable section of the website but suffice to say that even alone, it has produced a level of improvement which has kept many a listener up into the late hours re-listening to their record collection.
Rhodium-plated Single Point RCA Plugs: After testing numerous high-end RCA plugs these were selected for their outstanding performance. Single point contact has the advantage of reducing eddy currents and Rhodium with it’s ultra-smooth surface seems to provide a better interface in electrical joints.
