Kuzma Stogi S Tonearm
This is a 9 inch tonearm with unipivot bearing design with a unique, rigid round headshell made from a solid aluminium block and a base of solid brass which control all vibration and facilitate stability of the tonearm as a whole. All parts of the arm are machined from blocks of solid metal, in order to provide damping and minimise resonance. The polished pivot point is sited in an oil well, which provides extremely low friction and bearing vibration. The bearing height is at record level for optimum tracking. The silicone damping controls resonance of the cartridge and also gives stability in azimuth direction.
This is a 9 inch tonearm with unipivot bearing design with a unique, rigid round headshell made from a solid aluminium block and a base of solid brass which control all vibration and facilitate stability of the tonearm as a whole. All parts of the arm are machined from blocks of solid metal, in order to provide damping and minimise resonance. The polished pivot point is sited in an oil well, which provides extremely low friction and bearing vibration. The bearing height is at record level for optimum tracking. The silicone damping controls resonance of the cartridge and also gives stability in azimuth direction.
This is a 9 inch tonearm with unipivot bearing design with a unique, rigid round headshell made from a solid aluminium block and a base of solid brass which control all vibration and facilitate stability of the tonearm as a whole. All parts of the arm are machined from blocks of solid metal, in order to provide damping and minimise resonance. The polished pivot point is sited in an oil well, which provides extremely low friction and bearing vibration. The bearing height is at record level for optimum tracking. The silicone damping controls resonance of the cartridge and also gives stability in azimuth direction.

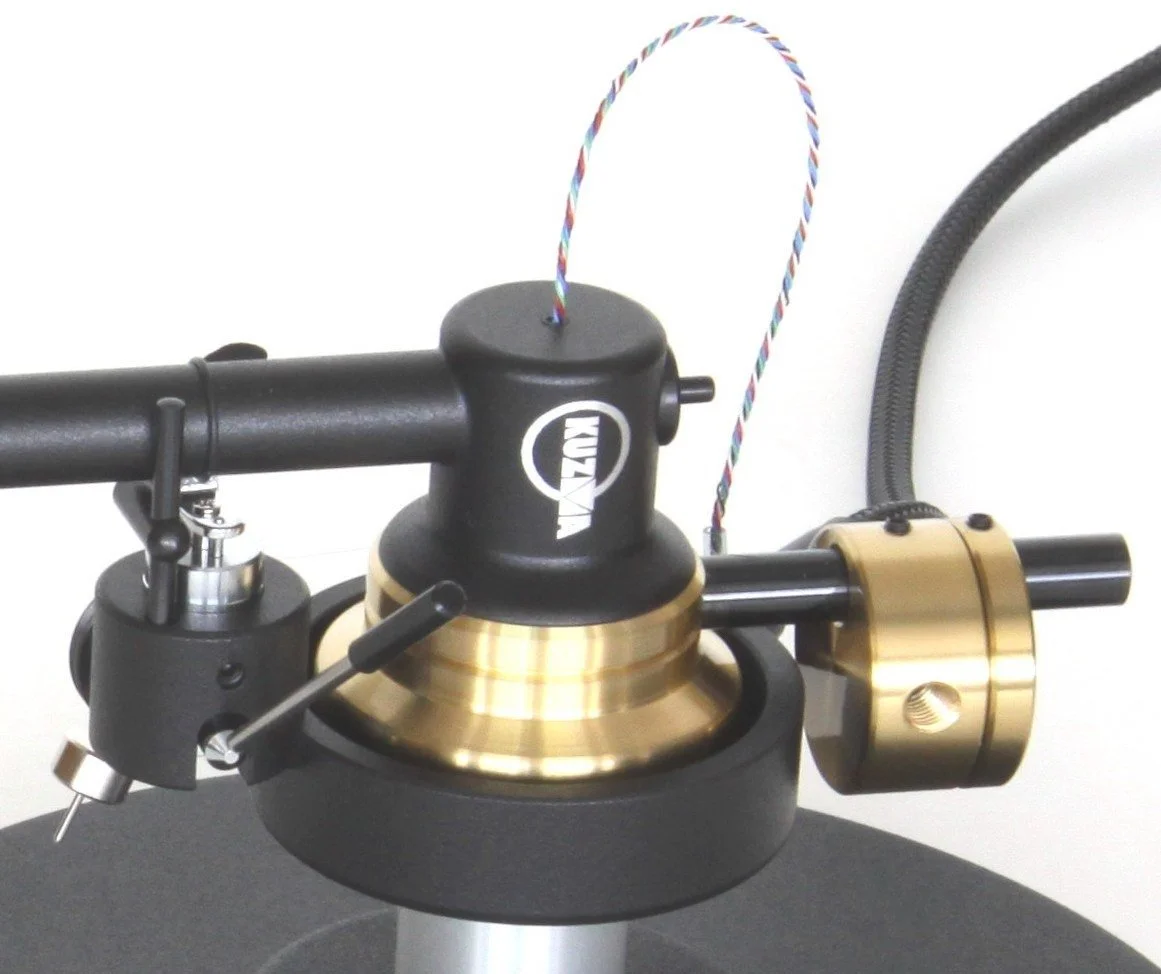

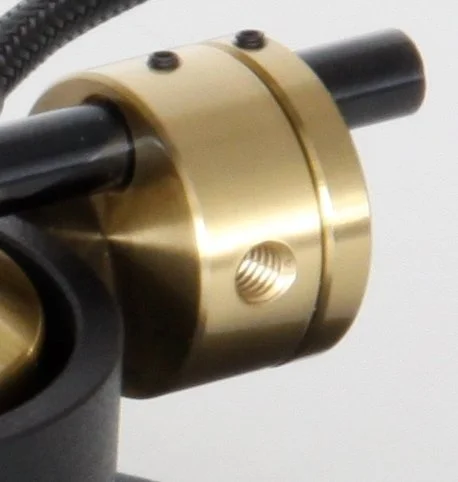

Two counterweights allow easy adjustments of tracking force and azimuth. Fine azimuth adjustment is achieved by rotation of a horizontal screw in the main counterweight, which does not affect other tonearm parameters and which makes fine azimuth adjustment very simple.

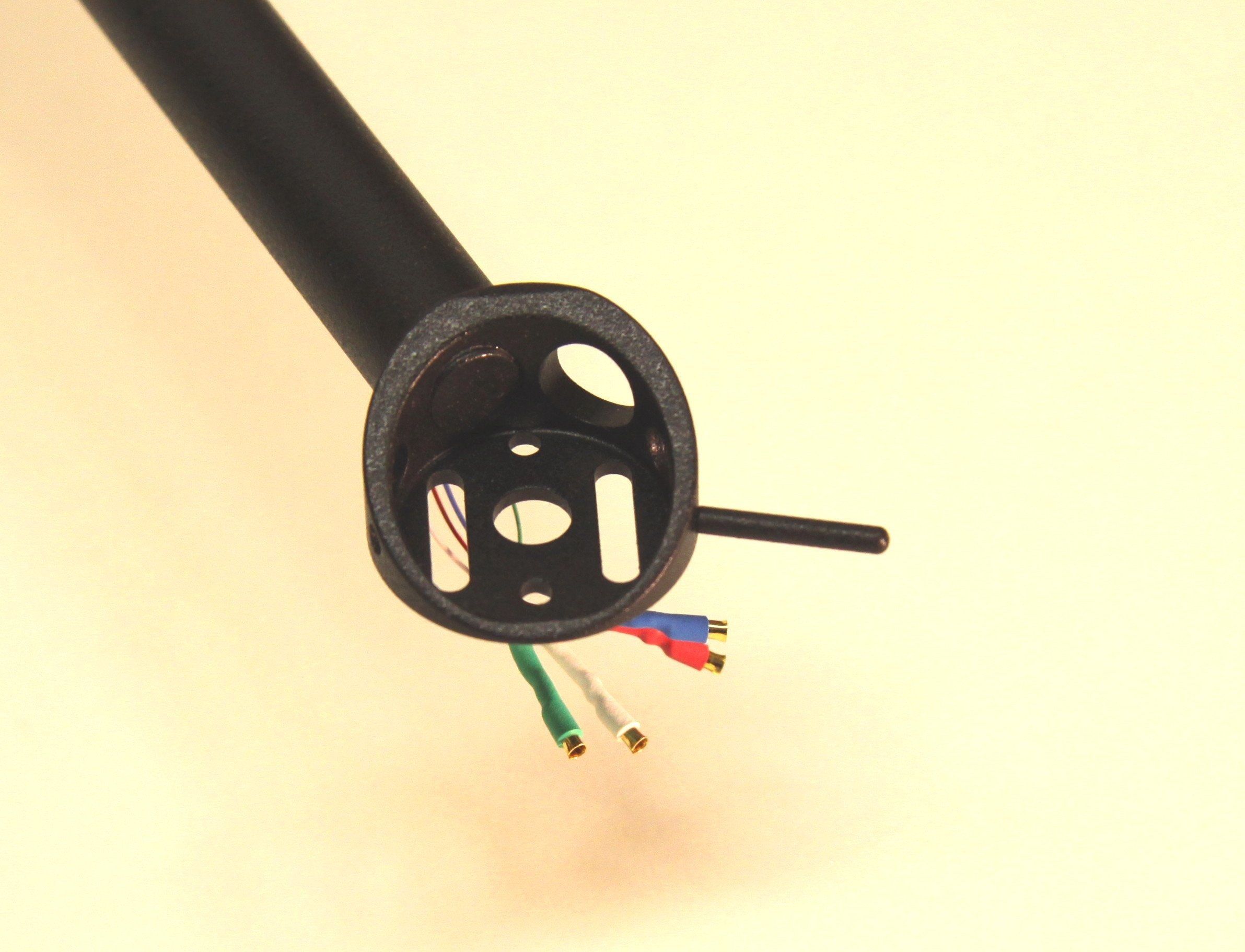

Wires are in one uninterrupted piece from headshell to RCA phono connectors. By pre-order, wiring can also be fitted in for balanced ( XLR) connection.
Introduced: 1992
-
Effective length: 229 mm
Arm mount distance: 212 mm
Distance from spindle to horizontal bearing: 212 mm
Bearing type: Unipivot
Effective mass: 11 gr
Total mass: 690 g
Offset angle: 23*
VTA adjustment: Yes
Azimuth adjustment: Yes (fine)
Tube: Straight
Bias: Yes
Max. Standard cartridge weight: 15 g
Optional light and heavy counterweight: Yes
Damping: Yes
Detachable headshell: No
Arm mount: Kuzma & Stogi
Standard wiring: Copper, RCA Bullets ( 58pF)

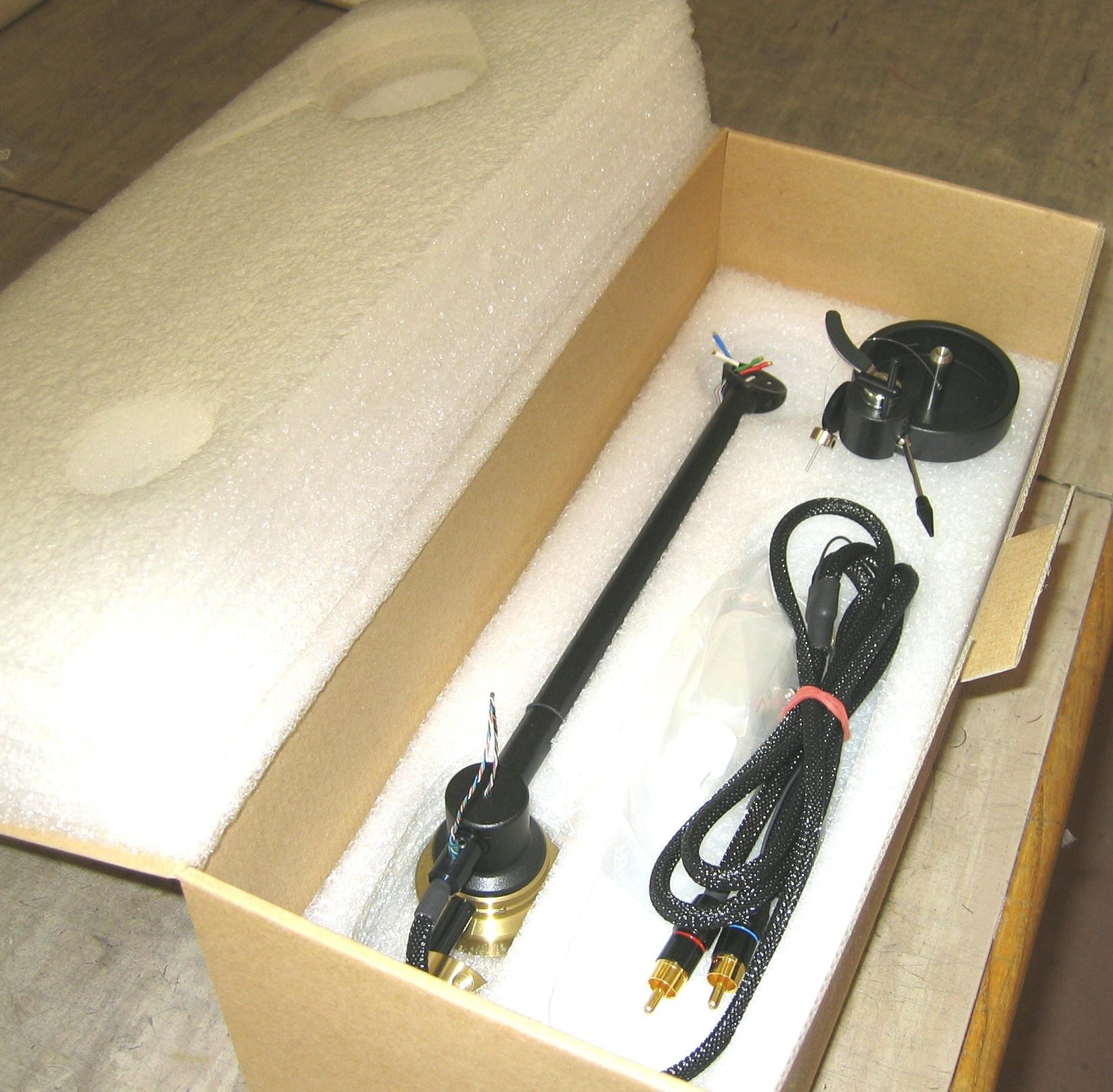

Accessories: protractors, Allen keys, cartridge mounting screws
Options: XLR, 5pin
-
